Microsoft 70-417 Online Questions & Answers

• Question 321:

  OCSetup is available as part of the Windows Vista and Windows Server 2008 operating system. This tool replaces Sysocmgr.exe, which is included in the Windows XP and Windows Server 2003 operating systems.

  This new tool can be used to perform which one of the following operations?

  A. All of these
  B. Microsoft System Installer (MSI) files that are passed to the Windows Installer service (MSIExec.exe)
  C. Component-Based Servicing (CBS) components that are passed to Package Manager
  D. CBS or MSI packages that have an associated custom installer .exe file
  A. All of these

  ---

  http://technet.microsoft.com/en-us/library/dd799247%28v=ws.10%29.aspx OCSetup Command-Line Options The WindowsOptional Component Setup (OCSetup.exe) tool is a command-line tool that can be used to add system components to an online Windows image. It installs or removes Component-Based Servicing (CBS) packages online by passing packages to the Deployment Image Servicing and Management (DISM) tool for installation or removal. OCSetup can also be used to install Microsoft System Installer (MSI) packages by calling the Windows Installer service (MSIExec.exe) and passing Windows Installer components to it for installation or removal. The MSI file must be signed by Microsoft to be able to be installed by using OCSetup. In addition, OCSetup can be used to install CBS or MSI system component packages that have associated custom installers (.exe files). The OCSetup tool is available as part of the Windows?7 and Windows Server?2008 R2 operating systems. You can use OCSetup.exe on a computer running Windows 7 or Windows Server 2008 R2.

• Question 322:

  Your network contains an active directory domain named Contoso.com. The domain contains a server named Server1 that runs Windows Server 2012 R2.

  You create a group Managed Service Account named gservice1.

  You need to configure a service named service1 to run as the gservice1 account.

  How should you configure Service1?

  A. From Services console, configure the Log On settings
  B. From a command prompt, run sc.exe and specify the privs parameter
  C. From Windows PowerShell, run Set-Service and specify the 璖tartupType parameter
  D. From a command prompt, run sc.exe and specify the sdset parameter
  A. From Services console, configure the Log On settings

• Question 323:

  Your network contains an Active Directory forest named contoso.com. Users frequently access the website of an external partner company. The URL of the website is http://partners.adatum.com. The partner company informs you that it will

  perform maintenance on its Web server and that the IP addresses of the Web server will change.

  After the change is complete, the users on your internal network report that they fail to access the website. However, some users who work from home report that they can access the website.

  You need to ensure that your DNS servers can resolve partners.adatum.com to the correct IP address immediately.

  What should you do?

  A. Run ipconfig and specify the FlushDns parameter.
  B. Run ipconfig and specify the Renew parameter.
  C. Run dnscmd and specify the ClearCache parameter.
  D. Run Set-DnsServerResourceRecordAging.
  C. Run dnscmd and specify the ClearCache parameter.

  ---

  We can clear the DNS cache on the DNS server with either Dnscmd /ClearCache (from command prompt) or Clear-DnsServerCache (from Windows PowerShell).

  References: https://technet.microsoft.com/en-us/library/cc772069.aspx

• Question 324:

  You have a file server named Server1 that runs a Server Core Installation of Windows Server 2012 R2. You need to ensure that users can access previous versions of files that are shared on Server1 by using the Previous Versions tab. Which tool should you use?

  A. wbadmin
  B. Diskpart
  C. Storrept
  D. Vssadmin

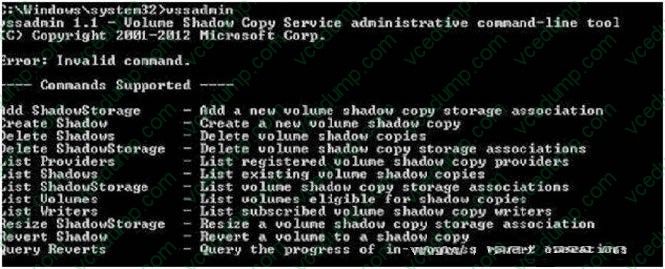

  D. Vssadmin

  ---



• Question 325:

  Your network contains an Active Directory domain named contoso.com. The domain contains a domain controller named DC5. DC5 has a Server Core Installation of Windows Server 2012 R2.

  You need to uninstall Active Directory from DC5 manually.

  Which tool should you use?

  A. The Remove-ADComputer cmdlet
  B. The ntdsutil.exe command
  C. The dsamain.exe command
  D. Uninstall-WindowsFeature cmdlet
  B. The ntdsutil.exe command

  ---

  Ntdsutil.exe is a command-line tool that provides management facilities for Active Directory Domain Services (AD DS) and Active Directory Lightweight Directory Services (AD LDS). You can use the ntdsutil commands to perform database

  maintenance of AD DS, manage and control single master operations, and remove metadata left behind by domain controllers that were removed from the network without being properly uninstalled. * NTdsutil commands include: / local roles

  Manages local administrative roles on an RODC. / metadata cleanup Cleans up objects of decommissioned servers.

  The question states that it must be done "manually", and ntdsutil is a very manual tool.

  References:

  http://technet.microsoft.com/en-us/library/hh472163.aspx#BKMK_RemoveSM

  http://technet.microsoft.com/en-us/library/cc732257.aspx#BKMK_powershell

• Question 326:

  Your role of Network Administrator at ABC.com includes the management of the Active Directory Domain Services (AD DS) domain named ABC.com. A server named ABC-DC1 runs Windows Server 2012. ABC-DC1 has the Active Directory Domain Services role installed and is configured as a domain controller in the ABC.com domain. You need to move the Active Directory database to a new volume on ABC-DC1. Your solution must minimize server downtime. You configure a new volume on the server.

  Which three of the following steps should you perform to move the Active Directory Database to the new volume? (Choose three).

  A. Restart ABC-DC1 into Directory Services Restore Mode
  B. Stop the Active Directory Domain Services service.
  C. Use Windows Explorer to move the database files.
  D. Use NTDSUtil to move the database files.
  E. Restart ABC-DC1 into normal mode.
  F. Restart the Active Directory Domain Services service.
  B. Stop the Active Directory Domain Services service.
  D. Use NTDSUtil to move the database files.
  F. Restart the Active Directory Domain Services service.

• Question 327:

  HOTSPOT

  Your network contains an Active Directory domain named contoso.com. The domain contains two member servers named Server1 and Server2. All servers run Windows Server 2012 R2.

  Server1 and Server2 have the Hyper-V server role and the Failover Clustering feature installed. Server1 and Server2 are members of a cluster named Cluster1. Cluster1 hosts 10 virtual machines.

  When you try to migrate a running virtual machine from one server to another, you receive the following error message: “There was an error checking for virtual machine compatibility on the target node.”

  You need to ensure that the virtual machines can be migrated from one node to another.

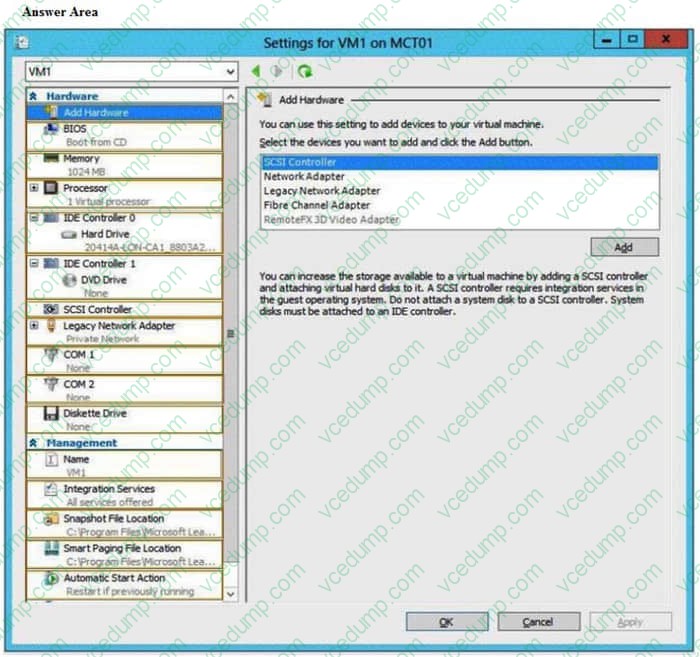

  Which setting should you configure? To answer, select the appropriate setting in the answer area.

  Hot Area:





  ---

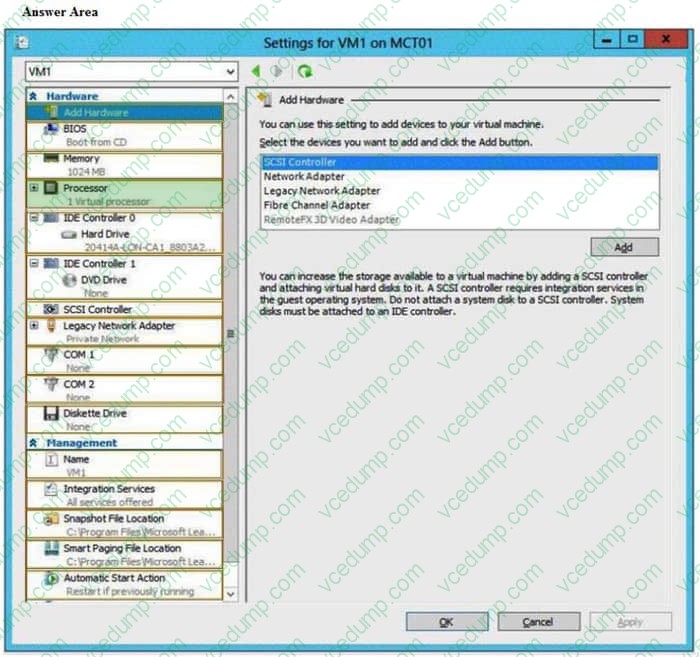

  This error happens when the Hyper-V hosts have different processor versions. You need to enable the Processor Compatibility setting under the Processor node.

  Add Hardware Processor

• Question 328:

  You have a server named Server1 that runs Windows Server 2012 R2. Server1 has the Hyper-V server role installed.

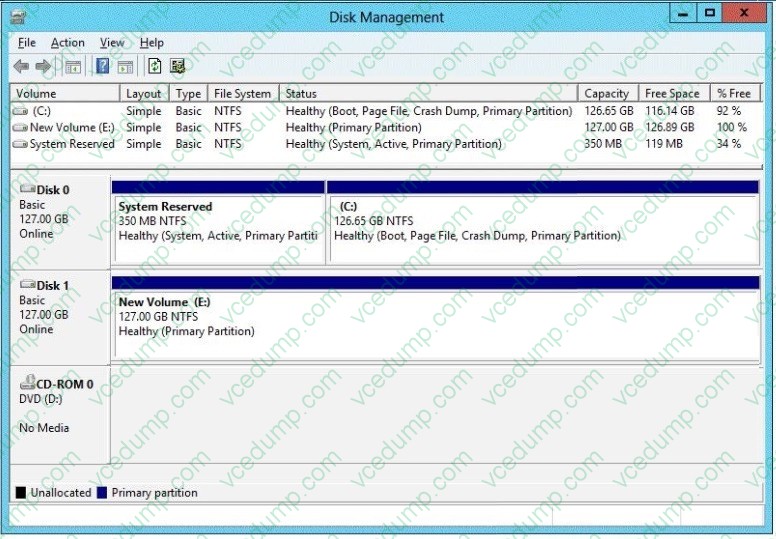

  The disks on Server1 are configured as shown in the exhibit. (Click the Exhibit button.)



  You create a virtual machine on Server1.

  You need to ensure that you can configure a pass-through disk for the virtual machine.

  What should you do?

  A. Convert Disk 1 to a GPT disk.
  B. Convert Disk 1 to a dynamic disk.
  C. Delete partition E.
  D. Take Disk 1 offline.
  D. Take Disk 1 offline.

  ---

  Disk Configuration Hyper-V allows virtual machines to access storage mapped directly to the Hyper-V server without requiring the volume be configured. The storage can either be a physical disk internal to the Hyper-V server or it can be a

  Storage Area Network (SAN) Logical Unit (LUN) mapped to the Hyper-V server. To ensure the Guest has exclusive access to the storage, it must be placed in an Offline state from the Hyper-V server perspective.

  Additionally, this raw piece of storage is not limited in size so, hypothetically, it can be a multi terabyte LUN.

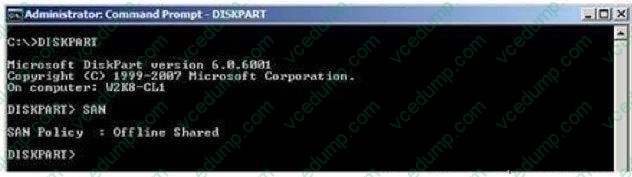

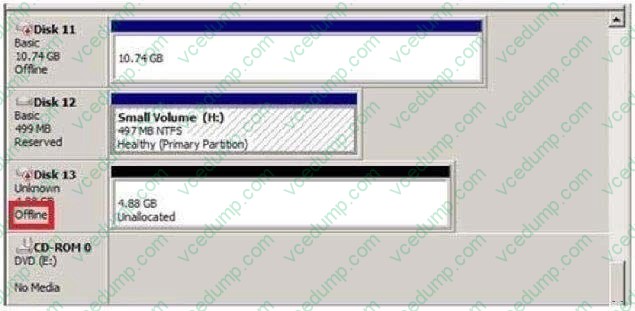

  After storage is mapped to the Hyper-V server, it will appear as a raw volume and will be in an Offline state (depending on the SAN Policy (Figure 1-1)) as seen in Figure 1.

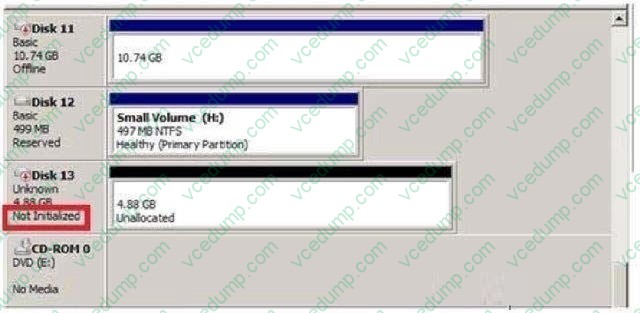

  We stated earlier that a disk must be Offline from the Hyper-V servers' perspective in order for the Guest to have exclusive access. However, a raw volume must first be initialized before it can be used. To accomplish this in the Disk Management interface, the disk must first be brought Online. Once Online, the disk will show as being Not Initialized (Figure 2).

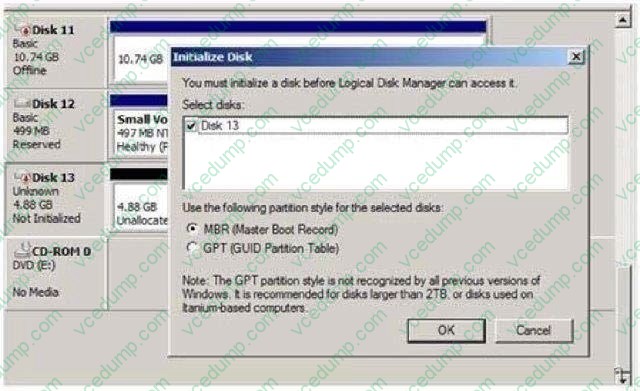

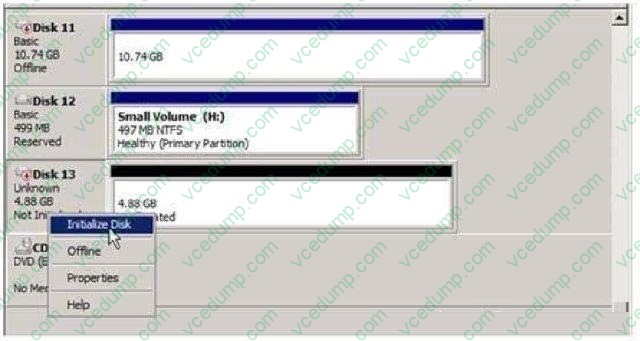

  Right-click on the disk and select Initialize Disk (Figure 3)



  Select either an MBR or GPT partition type (Figure 4).

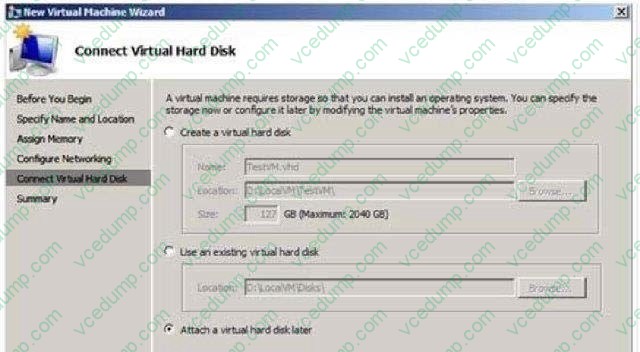

  Once a disk is initialized, it can once again be placed in an Offline state. If the disk is not in an Offline state, it will not be available for selection when configuring the Guest's storage. In order to configure a Pass-through disk in a Guest, you must select Attach a virtual disk later in the New Virtual Machine Wizard (Figure 5).



  If the Pass-through disk will be used to boot the operating system, it must be attached to an IDE Controller.

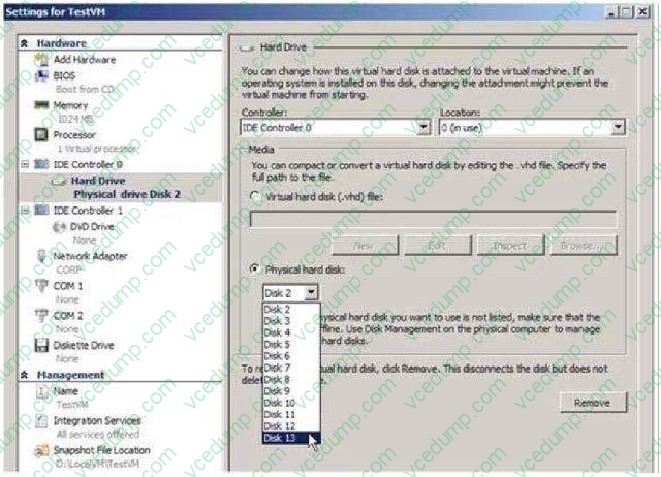

  Data disks can take advantage of SCSI controllers. In Figure 6, a Passthrough disk is attached to IDE Controller 0.



  Note: If the disk does not appear in the drop down list, ensure the disk is Offline in the Disk Management interface (In Server CORE, use the diskpart.exe CLI). Once the Pass-through disk is configured, the Guest can be started and data can placed on the drive. If an operating system will be installed, the installation process will properly prepare the disk. If the disk will be used for data storage, it must be prepared in the Guest operating system before data can be placed on it. If a Pass- through disk, being used to support an operating system installation, is brought Online before the Guest is started, the Guest will fail to start. When using Pass-through disks to support an operating system installation, provisions must be made for storing the Guest configuration file in an alternate location. This is because the entire Pass-through disk is consumed by the operating system installation. An example would be to locate the configuration file on another internal drive in the Hyper-V server itself. Or, if it is a cluster, the configuration file can be hosted on a separate cluster providing highly available file services. Be aware that Pass-through disks cannot be dynamically expanded. Additionally, when using Pass-through disks, you lose the capability to take snapshots, and finally, you cannot use differencing disks with Pass-through disks.

  References: http://blogs.technet.com/b/askcore/archive/2008/10/24/configuring-pass-through-disks-inhyper- v.aspx

• Question 329:

  Your network contains an Active Directory domain named contoso.com. The domain contains two domain controllers named DC1 and DC2.

  You install Windows Server 2012 R2 on a new computer named DC3.

  You need to manually configure DC3 as a domain controller.

  Which tool should you use?

  A. winrm.exe
  B. Server Manager
  C. dcpromo.exe
  D. Active Directory Domains and Trusts
  B. Server Manager

  ---

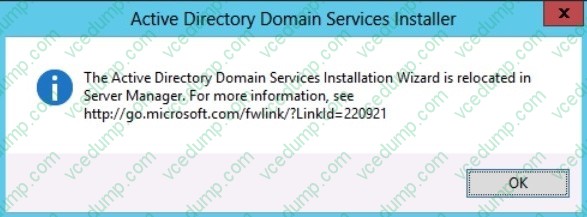

  When you try to DCpromo a Server 2012, you get this message:



• Question 330:

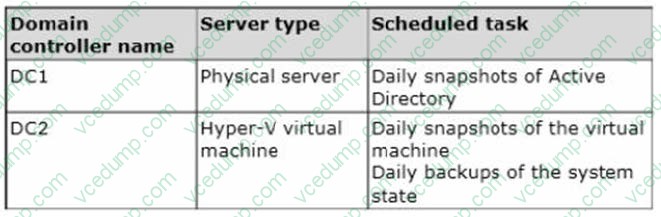

  Your network contains an Active Directory forest named contoso.com. The forest contains a single domain. All domain controllers run Windows Server 2012 R2. The domain contains two domain controllers. The domain controllers are configured as shown in the following table.



  Active Directory Recycle Bin is enabled.

  You discover that a support technician accidentally removed 100 users from an Active Directory group named Group1 an hour ago.

  You need to restore the membership of Group1.

  What should you do?

  A. Perform an authoritative restore.
  B. Perform tombstone reanimation.
  C. Modify the isDeleted attribute of Group1.
  D. Apply a virtual machine snapshot to DC2.
  A. Perform an authoritative restore.
