Cisco 642-885 Online Practice Questions and Exam Preparation

642-885 Exam Details

  • Exam Code
    :642-885
  • Exam Name
    :Deploying Cisco Service Provider Advanced Routing
  • Certification
    :Cisco Certifications
  • Vendor
    :Cisco
  • Total Questions
    :131 Q&As
  • Last Updated
    :Jun 15, 2024

Cisco 642-885 Online Questions & Answers

  • Question 41:

    The following Cisco IOS-XR configuration command will globally enable which multicast process(es) on the router?

    RP/0/RP0/CPU0:router(config)# multicast-routing

    A. IGMP only
    B. PIM only
    C. IGMP and MLD only
    D. PIM and IGMP only
    E. PIM and IGMP and MLD

  • Question 42:

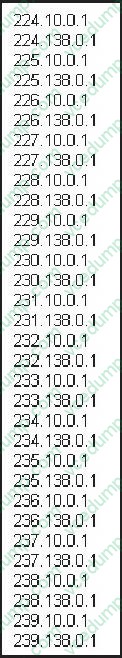

    Refer to the exhibit.

    The following multicast IP addresses map to which multicast MAC address?

    A. 01:00:5E:8A:00:01
    B. 01:00:5E:0A:00:01
    C. 01:00:5E:7A:00:01
    D. 01:00:5E:05:00:01

  • Question 43:

    Which protocol can be used to secure multicast in a group multicast solution where group key management is needed for secure key exchange?

    A. DOI
    B. ISAKMP
    C. GDOI
    D. IPsec

  • Question 44:

    Each router (RTA, RTB, and RTC) has one iBGP adjacency with the route reflector router RTD. Router RTC has an iBGP route advertised by RTA, but the same route is missing from RTB. The network engineer verifies that route filtering does not deny the route advertisement. Which action corrects the problem?

    A. RTD(config-router)#neighbor 192.168.1.1 route-reflector-client RTD(config-router)#neighbor 192.168.1.1 description RTA RTD(config-router)#neighbor 192.168.1.2 route-reflector-client RTD(config-router)#neighbor 192.168.1.2 description RTB
    B. RTC(config-router)#neighbor 192.168.1.4 route-reflector-client RTC(config-router)#neighbor 192.168.1.4 description RTD
    C. RTA(config-router)#neighbor 192.168.1.4 route-reflector-client RTA(config-router)#neighbor 192.168.1.4 description RTD RTB(config-router)#neighbor 192.168.1.4 route-reflector-client RTB(config-router)#neighbor 192.168.1.4 description RTD
    D. RTB(config-router)#neighbor 192.168.1.3 route-reflector-client RTB(config-router)#neighbor 192.168.1.3 description RTC
    E. RTB(config-router)#neighbor 192.168.1.3 route-reflector-client RTB(config-router)#bgp cluster-id 192.168.1.2 RTB(config-router)#no bgp client-to-client reflection

  • Question 45:

    What is one of the configuration errors within an AS that can stop a Cisco IOS-XR router from announcing certain prefixes to its EBGP peers?

    A. Some prefixes were mistagged with the no-export BGP community
    B. Some prefixes were set with an MED of 0
    C. The outbound BGP route policy only has set actions defined without any pass actions defined
    D. The inbound BGP route policy only has set actions defined without any pass actions defined

  • Question 46:

    Which three statements regarding the BGP operations are correct? (Choose three)

    A. PE5 is the route reflector with P1 and PE6 as its client
    B. PE5 is using the IS-IS route to reach the BGP next-hop for the 172.16.66.0/24 prefix
    C. PE5 has BGP route dampening enabled
    D. The BGP session between PE5 and P1 is established using the loopback interface and next- hop-self
    E. The BGP session between PE5 and CE5 is established using the loopback interface

  • Question 47:

    Refer to the EBGP configuration on a PE IOS-XR router exhibit.

    After the EBGP configuration, no routes are accepted from the EBGP peer, nor are any routes advertised to the EBGP peer.

    What could be the problem?

    A. The update-source neighbor configuration command must also be configured
    B. The next-hop-self neighbor configuration command must also be configured
    C. EBGP neighbors must have an inbound and outbound route policy configured
    D. An access list is blocking IP protocol 179 packets between the two EBGP peers
    E. The maximum-prefix neighbor configuration command must also be configured

  • Question 48:

    DRAG DROP

    Select and Place:

  • Question 49:

    Which type of DNS record is used for IPv6 forward lookups?

    A. A records
    B. AAAA records
    C. PTR records
    D. MX records

  • Question 50:

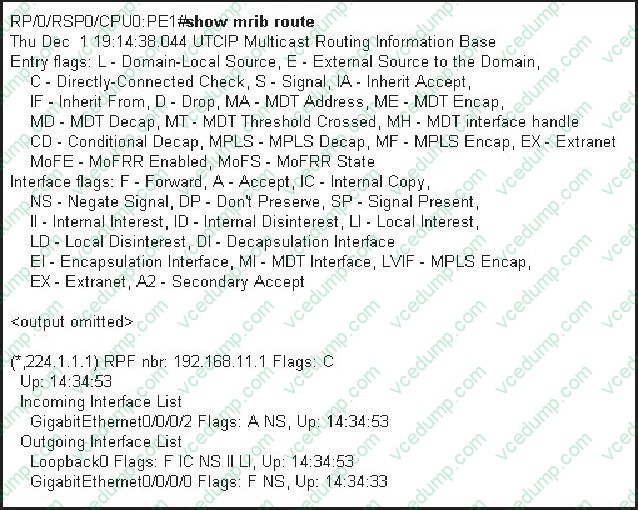

    Refer to the Cisco IOS-XR show output exhibit.

    Which two statements are correct? (Choose two.)

    A. The RPF neighbor 192.168.11.1 is the path towards the RP for the 224.1.1.1 multicast group
    B. The RP for the 224.1.1.1 multicast group is reachable over the Gi0/0/0/0 interface
    C. This router is the RP for the 224.1.1.1 multicast group
    D. Incoming 224.1.1.1 multicast group traffic will be sent out through the Gi0/0/0/0 interface
    E. Incoming 224.1.1.1 multicast group traffic will be sent out through the Gi0/0/0/2 interface
