Cisco 642-732 Online Practice Questions and Exam Preparation

Cisco 642-732 Online Questions & Answers

• Question 71:

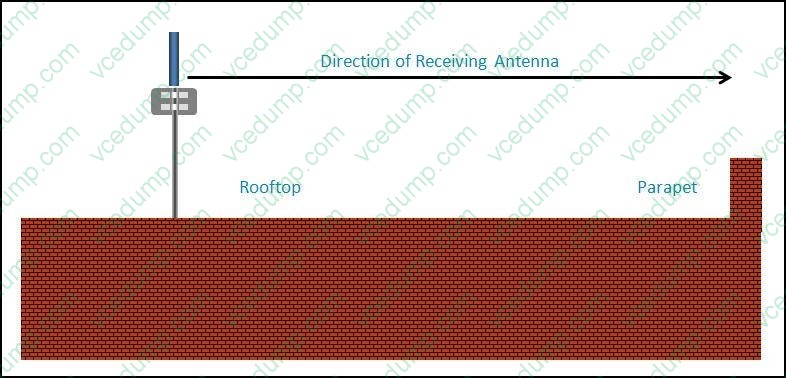

  Refer to the exhibit.



  The signal is being degraded to the point of link drops. You have examined the roof and the visual sighting of the remote antenna. What could be causing the issue?

  A. The receiving antenna is too close to the transmitting antenna.
  B. The first Fresnel zone is more than 60% blocked by the parapet.
  C. The visual line of sight is more than 60% blocked by the parapet.
  D. The cable between the APs and the antennae is introducing too much loss.
  E. The roof material is absorbing too much of the signal.
  B. The first Fresnel zone is more than 60% blocked by the parapet.

• Question 72:

  When performing a post-installation audit with a auditing tool such as Ekahau, which two steps are associated with the active portion of the audit? (Choose two.)

  A. Check that all channels are supported by the APs regardless of client capabilities.
  B. Check for co-channel interference by standing near an access point on one channel and watching for other access points that are on the same channel.
  C. Verify that the network traffic of physical data rate and packet loss meets user requirements.
  D. Verify smooth roaming.
  E. Check to see if the signal level on other access points that are heard on the same channel is at least 19 dBm weaker than the access point that you are next to.
  C. Verify that the network traffic of physical data rate and packet loss meets user requirements.
  D. Verify smooth roaming.

• Question 73:

  An outdoor mesh network is being designed with one RAP and then a single RF hop to MAP1 and another single RF hop from MAP1 to MAP2 to extend coverage. Given that the initial RF backhaul at the RAP is operating at 24 Mb/s, what is the expected RF backhaul bandwidth at MAP2?

  A. 24 Mb/s
  B. 20 Mb/s
  C. 14 Mb/s
  D. 7 Mb/s
  E. 3 Mb/s
  F. 1 Mb/s
  C. 14 Mb/s

• Question 74:

  Refer to the exhibit.



  After performing a Layer 1 survey using Cisco Spectrum Expert, what is the result indicated by the visual screen?

  A. Normal 802.11g activity
  B. Microwave oven interference
  C. Video camera interference
  D. Bluetooth device interference
  E. RF jammer
  C. Video camera interference

• Question 75:

  While performing an active mesh survey with a Cisco 1550 Access Point, the status LED turns solid red. What does this indicate?

  A. Access Point is operational
  B. CAPWAP discovery is in progress
  C. Firmware failure
  D. Radio is off
  E. Mesh authentication failure
  C. Firmware failure

• Question 76:

  An engineer is deploying centralized wireless solution with a 5508 controller. What is the most AP licenses that can be supported?

  A. 50
  B. 100
  C. 250
  D. 500
  E. 1000
  D. 500

• Question 77:

  Which two issues do access and backhaul radios experience in mesh networks? (Choose two.)

  A. The access radio has to connect to two or several points.
  B. The access cell usually covers more area at ground level that may have more sources of reflection and interference.
  C. The access cell radio range is larger than the backhaul radio range, which causes the backhaul cell radio to suffer from more interference.
  D. Backhaul radios are a bottleneck for throughput.
  E. RAPs help MAPs avoid coverage holes.
  B. The access cell usually covers more area at ground level that may have more sources of reflection and interference.
  D. Backhaul radios are a bottleneck for throughput.

• Question 78:

  What is a typical attenuation value for a cinder block wall?

  A. 3dB
  B. 4dB
  C. 6dB
  D. 12dB
  B. 4dB

• Question 79:

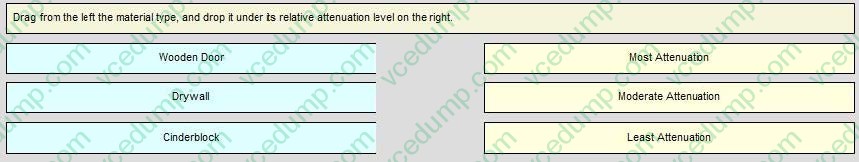

  DRAG DROP

  Select and Place:





• Question 80:

  Which option lists the non-overlapping channels in the ETSI domain?

  A. 1, 6, and 11
  B. 1, 5, 9, and 13
  C. 1, 5, 9, 13, and 14
  D. 1, 5, and 9
  E. 1, 6, 11, and 14
  A. 1, 6, and 11
