Cisco 642-035 Online Practice Questions and Exam Preparation

Cisco 642-035 Online Questions & Answers

• Question 71:

  Which CLI command identifies the service profile that is associated with a particular compute blade, VIF, vNIC type, link state, and pinned interface?

  A. show service-profile path server 1/2
  B. show service-profile circuit server 1/2
  C. show server-blade circuit server 1/2
  D. show server-blade path server 1/2
  B. show service-profile circuit server 1/2

• Question 72:

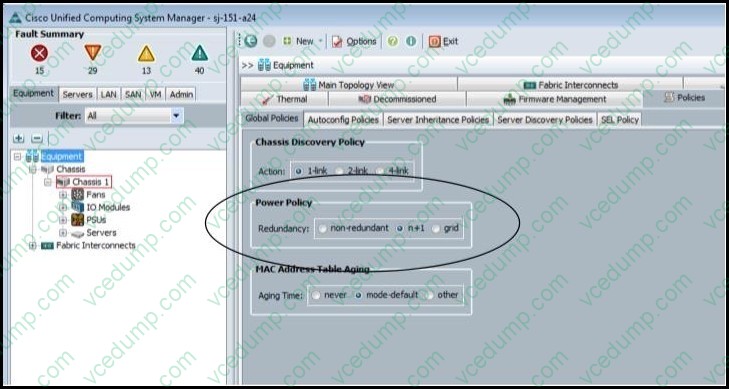

  Refer to the exhibit.



  Which type of power policy is shown when referring to a Cisco UCS environment?

  A. chassis
  B. blade server
  C. fabric interconnect
  D. global
  E. switch
  D. global

• Question 73:

  A Cisco UCS chassis has two ports on I/O Module 1 connected to Fabric Interconnect A, and two ports on I/O Module 2 connected to Fabric Interconnect B. The I/O modules are connected to ports 1 and 2 on their respective fabric interconnects, and end host mode is configured. After a link failure occurs on port 1 of I/O Module 1, what happens to the traffic that was pinned to that link?

  A. The traffic fails until the link issue is resolved.
  B. The traffic is repinned to I/O Module 2 link 1, which is connected to Fabric Interconnect B.
  C. The traffic is repinned to the remaining link between I/O Module 1 and Fabric Interconnect A.
  D. The traffic is repinned automatically to Fabric Interconnect B.
  C. The traffic is repinned to the remaining link between I/O Module 1 and Fabric Interconnect A.

• Question 74:

  How can you set a Cisco UCS C-Series Server to export tech-support data for TAC to an external file server?

  A. CIMC to a TFTP server
  B. CIMC to an RCP server
  C. FSM to a TFTP server
  D. FSM to an RCP server
  A. CIMC to a TFTP server

• Question 75:

  Before using the UCS Manager to configure SAN and network connectivity in the service profile, which two components needs to be created? (Choose two.)

  A. vHBA
  B. global VSAN
  C. vNIC
  D. global VLAN
  B. global VSAN
  D. global VLAN

• Question 76:

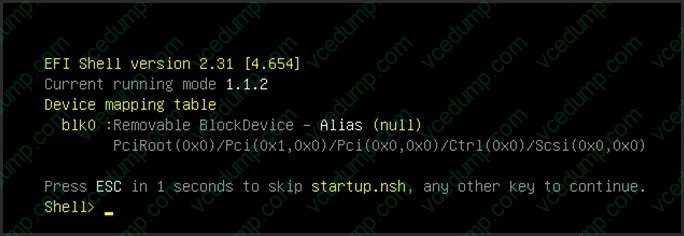

  Refer to the exhibit. A server has a service profile that is configured to boot over iSCSI. During boot, this message is displayed. What is the cause of this message?



  A. The local disk is not present.
  B. RAID 0 is not configured on the local disk.
  C. The remote disk is powered off.
  D. The server has not configured the pWWN properly in the boot policy.
  C. The remote disk is powered off.

• Question 77:

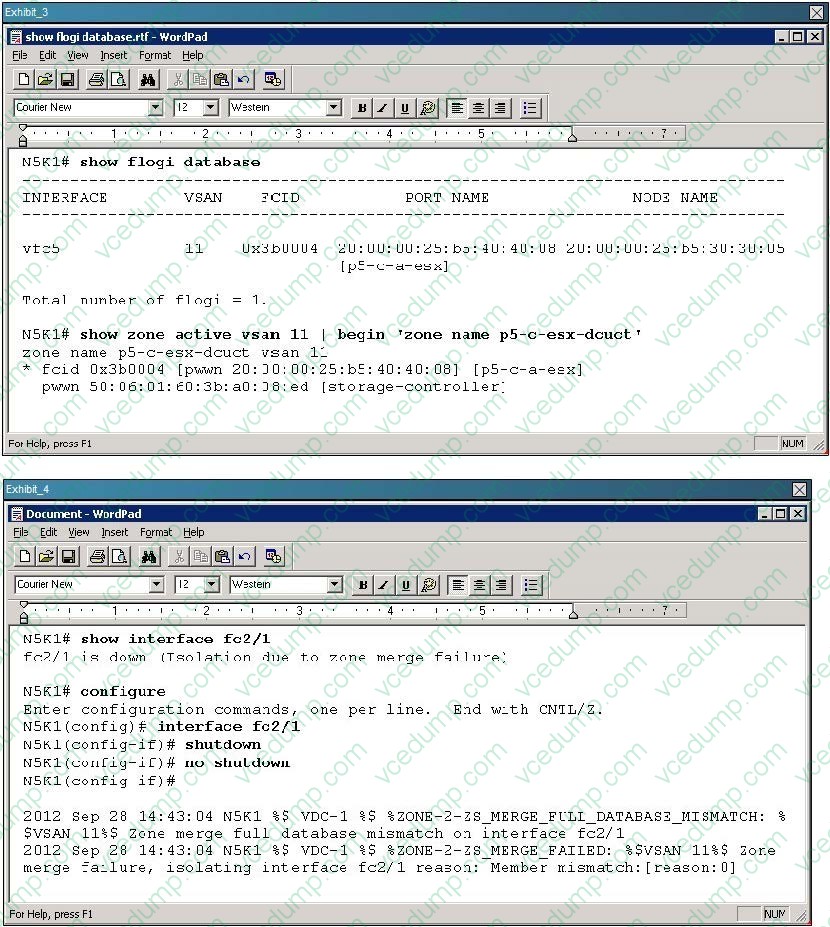

  What is the reason that no C-Series servers can access Fibre Channel storage from this Cisco Nexus 554SUP switch?

  A. Zoning mode mis-match with the MDS 9124
  B. There are no active Fibre Channel interfaces
  C. VSAN mis-match on Fibre Channel interfaces
  D. None of the virtual fibre channel interfaces are configured
  A. Zoning mode mis-match with the MDS 9124

• Question 78:





  Hot Area:





• Question 79:

  What is the default number of dynamic vNICs that is specified by the Cisco UCS Manager when creating a dynamic vNIC connection policy?

  A. 54
  B. 128
  C. 256
  D. 257
  A. 54

• Question 80:

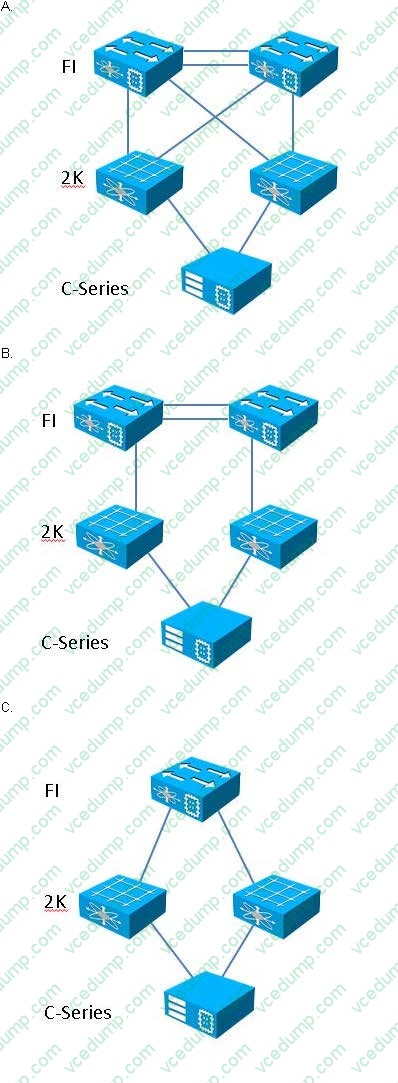

  Which of these is a supported Cisco C-Series integration topology?



  A. B. C.
  B
