Cisco 642-035 Online Practice Questions and Exam Preparation

Cisco 642-035 Online Questions & Answers

• Question 91:

  While updating firmware in a Cisco UCS environment, what will the Cisco UCS Manager do?

  A. show you all versions available on Cisco.com
  B. show you all versions downloaded to the Cisco UCS Manager
  C. show you only versions that are supported in your environment
  D. show you only versions that you selected to show
  E. show you old and new versions from your download
  C. show you only versions that are supported in your environment

• Question 92:

  A customer is configuring LAN pin groups in a Cisco UCS domain. The customer has two fabric interconnects and would like to associate the pin group with only one interconnect. Which statement about this configuration is true?

  A. In a system with two fabric interconnects, you can associate the pin group with only one fabric interconnect, and the other fabric interconnect will not be usable.
  B. In a system with two fabric interconnects, you can only associate the pin group with both fabric interconnects; you cannot associate the pin group with only one fabric interconnect.
  C. In a system with two fabric interconnects, you can associate the pin group with only one fabric interconnect or with both fabric interconnect. This is a supported configuration.
  D. This configuration is not supported in a Cisco UCS domain.
  C. In a system with two fabric interconnects, you can associate the pin group with only one fabric interconnect or with both fabric interconnect. This is a supported configuration.

• Question 93:

  Which two actions do you need to take to configure jumbo frames on UCS Manager? (Choose two.)

  A. Choose QoS Policy Jumbo, choose the LAN tab, and set the MTU value to 9000.
  B. Choose QoS System Class, choose the LAN tab, and set the MTU value to 9000.
  C. Choose LAN Uplinks Manager, choose the LAN tab, and set the MTU value to the uplinks VLANs to 9000.
  D. Choose the vNIC, and on the Server Profile set the MTU value to 9000.
  E. On the Admin tab, under Global Policy, enable Jumbo MTU Bytes.
  F. Go the fabric interconnect on the Equipment tab, right-click the port, and set the MTU value to 9000.
  B. Choose QoS System Class, choose the LAN tab, and set the MTU value to 9000.
  D. Choose the vNIC, and on the Server Profile set the MTU value to 9000.

• Question 94:

  You use dynamic vNICs. You create a new service profile. You receive an error message that indicates that you exceeded the number of dynamic vNICs. Which two components can affect the maximum number of dynamic vNICs in the Cisco UCS environment? (Choose two.)

  A. the model of the fabric interconnects
  B. the number of chassis uplinks
  C. the model of the FEX
  D. VMDirectPath sizing
  A. the model of the fabric interconnects
  B. the number of chassis uplinks

• Question 95:

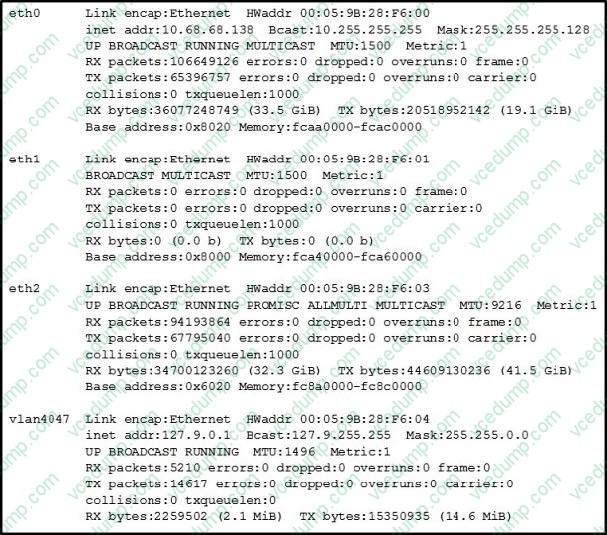

  Refer to the exhibit.



  Which interface is configured as a management interface for the Cisco UCS chassis?

  A. eth0
  B. vlan4047
  C. eth1
  D. eth2
  A. eth0

• Question 96:

  Which four tech support files can you create with the Cisco UCS Manager that you can submit to Cisco TAC for support? (Choose four.)

  A. UCSM
  B. disk LUNs
  C. fabric extender
  D. memory
  E. rack server
  F. chassis
  G. server cache
  A. UCSM
  C. fabric extender
  E. rack server
  F. chassis

• Question 97:

  Which two Cisco Nexus 2000-Series Fabric Extenders support connections to both Cisco Nexus 5000 Series Switches and Cisco Nexus 7000 Series Switches? (Choose two.)

  A. Cisco Nexus 2248TP
  B. Cisco Nexus 2248TP-E
  C. Cisco Nexus 2232PP
  D. Cisco Nexus 2232TM
  A. Cisco Nexus 2248TP
  C. Cisco Nexus 2232PP

• Question 98:

  Which piece of information does the FSM provide?

  A. the current task and status
  B. a collection of blade statistics
  C. the last user to access the resource
  D. a list of faults currently suppressed by the Cisco UCS Manager
  A. the current task and status

• Question 99:







  Hot Area:





• Question 100:

  Which two commands check for DIMM errors in a Cisco UCS environment? (Choose two.)

  A. UCS-TEST/chassis#show error-recovery
  B. UCS-TEST/chassis/server/memory-array#show stats
  C. UCS-TEST/chassis/server#show execute-disable D. UCS-TEST/chassis/server/memory-array #show block
  E. UCS-TEST/chassis/server#show memory-array detail
  F. UCS-TEST/chassis/server#show error-recovery
  B. UCS-TEST/chassis/server/memory-array#show stats
  E. UCS-TEST/chassis/server#show memory-array detail
