Cisco 642-035 Online Practice Questions and Exam Preparation

Cisco 642-035 Online Questions & Answers

• Question 1:

  How will the Cisco UCS Manager react when all of the FSM tasks fail?

  A. retries for 60 seconds
  B. raises faults and alarms
  C. restarts from the previous known good task
  D. sends an NOC SNMP trap email
  B. raises faults and alarms

• Question 2:

  Which two options are causes for failure of a Cisco C-Series server that is configured to boot from SAN? (Choose two.)

  A. The boot LUN ID is not 0.
  B. The ISCSI target is only available via one via one path through the network.
  C. C-Series does not support boot from SAN.
  D. The KVM dongle is attached to the front of the server with a USB stick installed.
  E. Under the FCoE properties on the vNIC adapter, the FCoE VLAN ID is set to 10.
  F. The boot table for fc0 has not been configured.
  D. The KVM dongle is attached to the front of the server with a USB stick installed.
  F. The boot table for fc0 has not been configured.

• Question 3:

  What should you do when you see faults during the initial setup and discovery process?

  A. Take note and address the faults.
  B. You can safely ignore these faults.
  C. Log them and try to address the first one.
  D. Reboot until the error messages go away.
  B. You can safely ignore these faults.

• Question 4:

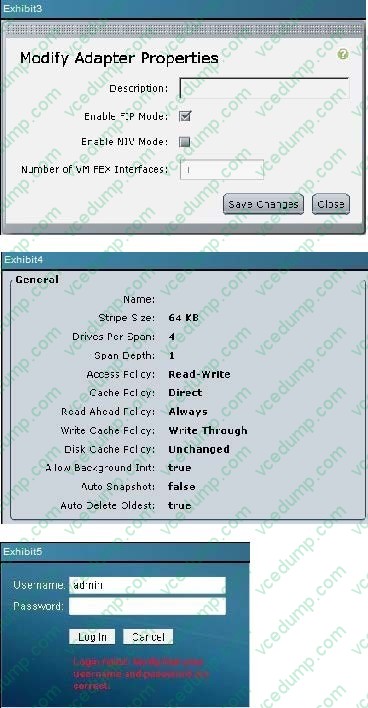

  Refer to Exhibit 5. Which of the following is true regarding password recovery for the Cisco IMC GUI interface?

  A. From the KVM Console, press F12 during POST to reset the credentials to admin/password
  B. Type RECOVER into the Username field, and then type SYSTEM in the Password field to enter recovery mode
  C. Refer to the model-specific Cisco UCS C-Series Hardware guide to learn the location of the recovery jumper on the server motherboard
  D. Enter the Cisco IMC BIOS to reset the GUI password
  D. Enter the Cisco IMC BIOS to reset the GUI password

• Question 5:

  Which statement about Cisco UCS version compatibility is true?

  A. All bundles (A, B, and C) must be the same version.
  B. The B and C bundles must be the same revision.
  C. The A bundle can be one revision higher than the B/C bundles.
  D. The B/C bundles can be one revision higher than the A bundles.
  C. The A bundle can be one revision higher than the B/C bundles.

• Question 6:

  As a Cisco UCS administrator, you have a large deployment of C-Series servers. You decide to integrate these into a Cisco UCS Manager environment to simplify management. Which two of these will you need to purchase? (Choose two.)

  A. two fabric interconnects
  B. a dedicated Cisco IMC
  C. two fabric extenders
  D. two I/O modules
  A. two fabric interconnects
  C. two fabric extenders

• Question 7:

  A customer is configuring a network control policy in a Cisco UCS domain. The network control policy configures the network control settings for the Cisco UCS domain, including which three of these? (Choose three.)

  A. how the VIF behaves if no uplink port is available in end-host mode
  B. the action that the Cisco UCS Manager takes on the remote Ethernet interface, vEthernet interface, or vFibreChannel interface when the associated border port fails
  C. Layer 2 switching on the fabric interconnect
  D. whether MAC registration occurs on a per-vNIC basis or for all VLANs
  E. the end-host mode setting on the I/O module
  A. how the VIF behaves if no uplink port is available in end-host mode
  B. the action that the Cisco UCS Manager takes on the remote Ethernet interface, vEthernet interface, or vFibreChannel interface when the associated border port fails
  D. whether MAC registration occurs on a per-vNIC basis or for all VLANs

• Question 8:

  A customer starts an Auto Install upgrade process. During the process, the customer selects the wrong firmware version. Which action rolls back to the previous firmware version as quickly as possible?

  A. Cancel the process by using the Cisco UCS Manager.
  B. Wait for the upgrade to complete, and then roll back the configuration.
  C. Wait for the upgrade to complete, and then downgrade.
  D. Cancel the process by using the CLI.
  C. Wait for the upgrade to complete, and then downgrade.

• Question 9:

  When you configure the settings for the core file exporter via UCS Manager, which field is required to configure a destination for the core files?

  A. Admin State
  B. Description
  C. Port
  D. Hostname
  E. Path
  D. Hostname

• Question 10:

  At any given time, each server can be associated with how many service profiles?

  A. 1
  B. 2
  C. 5
  D. 10
  E. unlimited
  A. 1
