Cisco 640-916 Online Practice Questions and Exam Preparation

Cisco 640-916 Online Questions & Answers

• Question 101:

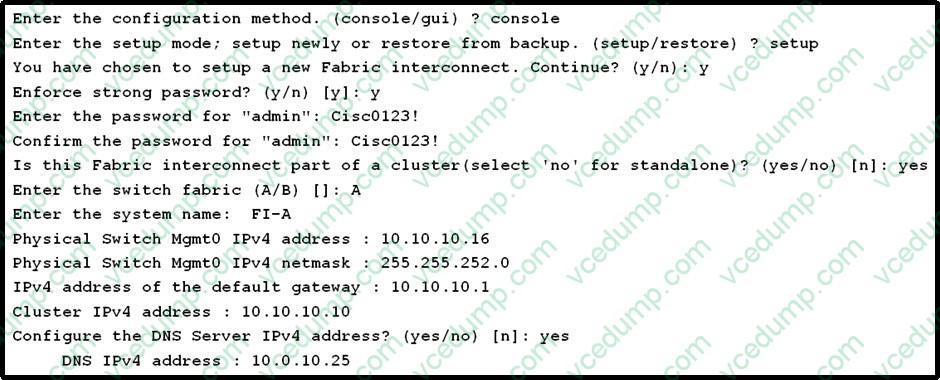

  Refer to the exhibit. An engineer has configured a primary fabric interconnect with this configuration. Which two pieces of information are needed to guarantee high availability and fail over for the secondary fabric interconnect for the cluster? (Choose two.)

  A. Cisc0123!
  B. 10.10.10.10
  C. 10.10.10.1
  D. 10.10.10.16
  E. 10.0.10.25
  F. Fabric-A
  A. Cisc0123!
  B. 10.10.10.10

• Question 102:

  What link aggregation technology could be used when configuring port-channels for connecting an access switch to vPC Domain?

  A. Dot1q
  B. LACP mode on
  C. Port Aggregation Protocol (PAgP)
  D. LACP mode active
  E. Nonegotiate mode
  D. LACP mode active

• Question 103:

  Which two are configuration elements selected during initial setup of the Cisco MDS 9100 Series Fibre Channel Switches? (Choose two.)

  A. Telnet bits
  B. SNMPv3 community strings
  C. Zone port distribution
  D. Enforce password complexity
  E. Default switchport mode F
  D. Enforce password complexity
  E. Default switchport mode F

• Question 104:

  Which statement is true regarding Cisco Unified Computing System Fabric Interconnect cluster configuration?

  A. A Cisco Unified Computing System Fabric Interconnect cluster can contain up to two peers for redundancy.
  B. A Cisco Unified Computing System Fabric Interconnect cluster can contain up to three peers for redundancy.
  C. A Cisco Unified Computing System Fabric Interconnect cluster can contain up to four peers for redundancy.
  D. A Cisco Unified Computing System Fabric Interconnect cluster can contain up to six peers for redundancy.
  A. A Cisco Unified Computing System Fabric Interconnect cluster can contain up to two peers for redundancy.

• Question 105:



  Hot Area:





• Question 106:

  An engineer is configuring a new MDS switch. The switch is powered on, the customer connects to the console, and the initial setup script is started. Which two items can be configured during this setup process? (Choose two.)

  A. default switchport interface state
  B. default zone mode
  C. default port-channel mode
  D. default storage VDC
  E. default port VSAN membership
  A. default switchport interface state
  B. default zone mode

• Question 107:





  Hot Area:





• Question 108:

  An administrator connected a new server to a Cisco MDS 9222i on Port FCL/20, but did not capture the world wide node name of the host bus adapter. Which command returns the needed information?

  A. show flogi database
  B. show fcns database
  C. show fcs database
  D. show wwn status
  E. show interface fc 1/20
  A. show flogi database

• Question 109:

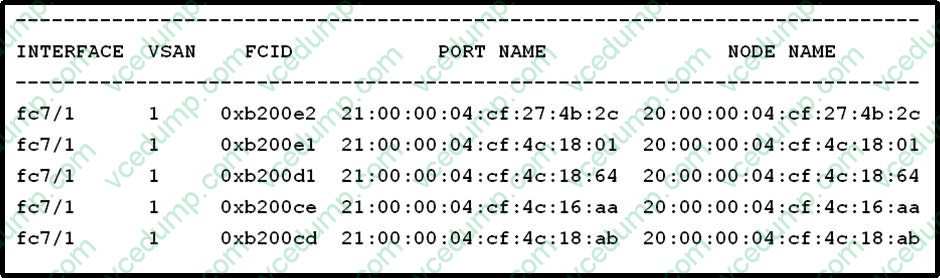

  Refer to the exhibit. What two conclusions can be made based upon the output? (Choose two.)

  A. the command show flogi database was run
  B. regular format WWNs are being used
  C. the command show fncs database was run
  D. extended format WWNs are being used
  E. the command show fcns database vsan 1 was run
  F. registered name format WWNs are being used
  A. the command show flogi database was run
  D. extended format WWNs are being used

• Question 110:

  A network design engineer is asked to design a SAN for a company. Which three underlying principles of SAN design should be considered? (Choose three.)

  A. scalability of LAN infrastructure; reduced Ethernet QoS complexity
  B. port density and topology requirements; number of ports required now and in the future
  C. device performance and oversubscription ratios; determination of what is acceptable and what is unavoidable
  D. fault isolation; consolidation while maintaining isolation
  E. security management; preferential network security
  F. future growth in WAN infrastructure
  B. port density and topology requirements; number of ports required now and in the future
  C. device performance and oversubscription ratios; determination of what is acceptable and what is unavoidable
  D. fault isolation; consolidation while maintaining isolation
