Cisco 600-601 Online Practice Questions and Exam Preparation

Cisco 600-601 Online Questions & Answers

• Question 51:

  Which parameter would you tune to affect the selection of a static route as a backup, when a dynamic protocol is also being used?

  A. hop count
  B. administrative distance
  C. link bandwidth
  D. link delay
  E. link cost
  B. administrative distance

• Question 52:

  At which Layer would you troubleshoot a cabling issue?

  A. Layer 1
  B. Layer 2
  C. Layer 3
  D. Layer 4
  A. Layer 1

• Question 53:

  Exhibit:



  Refer to the exhibit. Which port should a PLC with IP address 192.168.3.65 be plugged into in order to communicate to the rest of the network?

  A. FastEthernet1/1
  B. FastEthernet1/2
  C. FastEthernet1/3
  D. FastEthernet1/4
  E. FastEthernet1/5
  C. FastEthernet1/3

• Question 54:

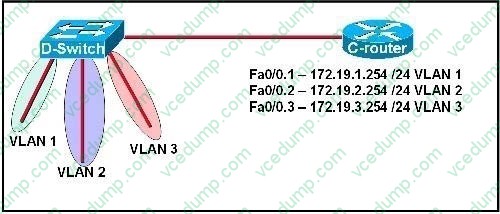

  Exhibit:



  Refer to the exhibit. C-router is to be used as a "router-on-a-stick" to route between the VLANs. All the interfaces have been properly configured and IP routing is operational. The hosts in the VLANs have been configured with the appropriate default gateway. What is true about this configuration?

  A. These commands need to be added to the configuration:C-router(config)# router eigrp 123C- router (config-router)# network 172.19.0.0
  B. These commands need to be added to the configuration:C-router(config)# router ospf 1C- router (config-router)# network 172.19.0.0 0.0.3.255 area 0
  C. These commands need to be added to the configuration:C-router(config)# router ripC-router(config- router)# network 172.19.0.0
  D. No further routing configuration is required.
  D. No further routing configuration is required.

• Question 55:

  With what are APC connectors used?

  A. Category 6a cables that need tight radius bends
  B. copper network cables in corrosive environments
  C. single-mode fiber-optic cables to reduce return loss
  D. high-density copper patch panels
  C. single-mode fiber-optic cables to reduce return loss

• Question 56:

  A small manufacturing company has a Class C network address on the plant floor and needs to create five subnets, each accommodating 25 endpoints. Which subnet mask needs to be configured?

  A. 255.255.240.0
  B. 255.255.255.128
  C. 255.255.255.192
  D. 255.255.255.224
  E. 255.255.255.240
  F. 255.255.255.248
  D. 255.255.255.224

• Question 57:

  What is the most critical step to perform when you are using optical fiber connectors?

  A. Cover with dust caps when not in use.
  B. Immerse in alcohol prior to use.
  C. Blow off and carefully wipe down with a tissue before and after each use.
  D. Lightly sand with cloth prior to mating.
  A. Cover with dust caps when not in use.

• Question 58:

  You are a called upon to troubleshoot connectivity problems to a network device on a production floor. You have used ping and traceroute to verify that you cannot connect to the device from the management network. The network is 209.165.202.128/27 and the device has been given the IP address 209.165.202.158 and mask 255.255.255.224. You have verified that you can reach the device with your computer connected to the same switch as the device. What could be the cause of this problem?

  A. The device is set to the wrong subnet mask.
  B. The device is set to the wrong IP address.
  C. The device has no IP default gateway.
  D. The device is connected to a switchport in the wrong VLAN.
  C. The device has no IP default gateway.

• Question 59:

  Given a ring topology, which loop prevention mechanism provides the fastest reconvergence time after a link failure?

  A. Rapid Per-VLAN Spanning Tree Protocol
  B. Resilient Ethernet Protocol
  C. Multiple Spanning Tree Protocol
  D. Spanning Tree Protocol
  B. Resilient Ethernet Protocol

• Question 60:

  How does the optical time domain reflectometer use "backscattered" light to make measurements?

  A. It uses pulses to locate and test for sheath faults, damaged conductors, loose connectors, splices, bridge taps, split pairs, and other problems.
  B. It performs wiremapping to measure that all pins are correctly connected.
  C. It correlates the returned light pulses with a location in the fiber.
  D. It measures light-pulse width to measure that all pins are correctly connected.
  C. It correlates the returned light pulses with a location in the fiber.
