Cisco 600-601 Online Practice Questions and Exam Preparation

Cisco 600-601 Online Questions & Answers

• Question 1:

  With a Cisco IE 2000 switch, what does a power status LED indicate when it is solid green?

  A. Power is present on the associated circuit and the system is operating normally.
  B. Power is present on the associated circuit, but there is no correlation to whether the system is operating normally.
  C. The system is operating normally, but power is not necessarily present on the associated circuit.
  D. Power is not present on the associated circuit and the power supply alarm is configured.
  E. The power status LED does not show solid green.
  A. Power is present on the associated circuit and the system is operating normally.

• Question 2:

  Which prompt is used to configure parameters for the Ethernet ports of an industrial switch?

  A. Switch(config-if)#
  B. Switch(config-if-ind)#
  C. Switch(config-line)#
  D. Switch(config-ind)#
  E. Switch(config-vlan)#
  A. Switch(config-if)#

• Question 3:

  What is a reason to use user EXEC mode on an industrial switch?

  A. to verify commands that you have entered
  B. to change terminal settings
  C. to configure VLAN parameters
  D. to configure parameters that apply to the entire switch
  B. to change terminal settings

• Question 4:

  EtherNet/IP is an Ethernet implementation of which protocol?

  A. CIP
  B. Industrial Protocol
  C. DeviceNet
  D. ControlNet
  A. CIP

• Question 5:

  An administrator has connected devices to an industrial switch and, for security reasons, wants the dynamically learned MAC addresses from the address table added to the running configuration. What must be done to accomplish this?

  A. Enable port security and use the keyword sticky.
  B. Set the switchport mode to trunk and save the running configuration.
  C. Use the switchport protected command to have the MAC addresses added to the configuration.
  D. Use the no switchport port-security command to allow MAC addresses to be added to the configuration.
  A. Enable port security and use the keyword sticky.

• Question 6:

  Which protocol is a secure alternative to Telnet?

  A. SSH
  B. FTP
  C. SMTP
  D. SNMP
  E. HTTP
  A. SSH

• Question 7:

  In which two ways could you minimize the impact of monitoring an industrial network? (Choose two.)

  A. Send random messages to a device and see what the response is.
  B. Do frequent ping sweeps to industrial devices to check for their proper operations.
  C. Make a copy of all the network traffic and analyze it offline.
  D. Use an industrial-network-grade IDS-IPS system.
  C. Make a copy of all the network traffic and analyze it offline.
  D. Use an industrial-network-grade IDS-IPS system.

• Question 8:

  What are two symptoms of duplex mismatch? (Choose two.)

  A. Ping does not return from one direction versus the other direction.
  B. Communication is slow and locks up.
  C. Speed is seen equally slow in both directions.
  D. The half-duplex side sees frame sequence errors or runt frames.
  E. The full-duplex side sees CRC errors.
  B. Communication is slow and locks up.
  D. The half-duplex side sees frame sequence errors or runt frames.

• Question 9:

  Select and Place:





• Question 10:

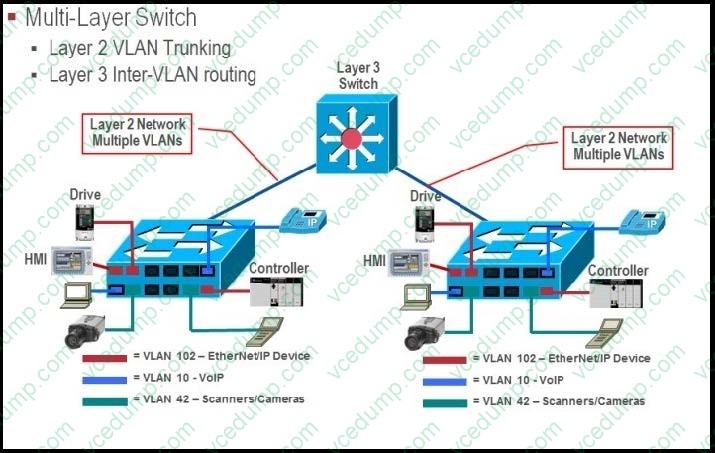

  Exhibit: Refer to the exhibit. What are three traffic and interconnection requirements for the devices in the exhibit? (Choose three.)



  A. The EtherNet/IP drive connections are in a high-voltage area and need protection from electromagnetic noise, so shielded cable that is rated for 600 V is advised.
  B. EtherNet/IP devices such as the controller, drive, VoIP phone, and IP camera should be in the same VLAN.
  C. CIP traffic has the highest bandwidth requirement so it needs the highest QoS setting.
  D. EtherNet/IP drive traffic has high sensitivity to random drops, latency, and jitter.
  E. Real-time motion control and VoIP traffic can share the same VLAN with the proper QoS setting.
  F. IEEE1588 and PTP are important for ensuring real-time synchronization.
  A. The EtherNet/IP drive connections are in a high-voltage area and need protection from electromagnetic noise, so shielded cable that is rated for 600 V is advised.
  D. EtherNet/IP drive traffic has high sensitivity to random drops, latency, and jitter.
  F. IEEE1588 and PTP are important for ensuring real-time synchronization.
