Cisco 500-170 Online Practice Questions and Exam Preparation

Cisco 500-170 Online Questions & Answers

• Question 1:

  The FlexPod Data Center with Microsoft Fast Track Private Cloud 3 Solution utilizes an updated virtual hard disk format to support virtual disks up to 64 TB in size. What is this Windows Server 2012 Hyper-V virtual disk format?

  A. VMDK
  B. VHDX
  C. VHD
  D. HDFS
  B. VHDX

• Question 2:

  Which sends support summary information to NetApp through HTTPS?

  A. AutoSupport
  B. FlexSupport
  C. SnapSupport
  D. TechSupport
  A. AutoSupport

• Question 3:

  Which is true about UCS High Availability?

  A. Support for 3 Fabric Interconnects
  B. Dual homing IOM to Fabric Interconnects
  C. Port Channeling within UCS system requires Fabric Interconnects and IOMs to be at least second generation.
  D. UCSM supports vPC configuration
  C. Port Channeling within UCS system requires Fabric Interconnects and IOMs to be at least second generation.

• Question 4:

  Which tool may be used to determine the optimal UCS hardware configurations for SAP, Oracle, and Microsoft Enterprise Applications FlexPod solutions?

  A. Microsoft Assessment and Planning (MAP) Toolkit
  B. NetApp Solution Builder
  C. Cisco UCS Sizer for Enterprise Applications
  D. Cisco Resource Comparison Tool
  C. Cisco UCS Sizer for Enterprise Applications

• Question 5:

  What MTU setting should be configured for VMware ESXi VMkernel Ports and Virtual Switches in a FCoE boot from SAN environment?

  A. 9000
  B. 1500
  C. 1492
  D. 9216
  A. 9000

• Question 6:

  Which four items are required in order to create a Gold Master Boot LUN to automate the provisioning of Hyper-V hosts using the built-in LUN cloning capabilities of NetApp storage? (Choose four)

  A. Create additional virtual fibre channel (vfc) interfaces for the Nexus 5500
  B. Creation of a LUN for the Gold Master Boot LUN C. Configuration of the Server OS and hotfix installation
  D. Create a new interface group on the NetApp Cluster
  E. SysPrep of the server operating system
  F. Creation of a service profile and zoning for Gold Master Boot LUN
  G. Establish connectivity with System Center
  H. Install Microsoft SQL Server 2012
  B. Creation of a LUN for the Gold Master Boot LUN C. Configuration of the Server OS and hotfix installation
  E. SysPrep of the server operating system
  F. Creation of a service profile and zoning for Gold Master Boot LUN

• Question 7:

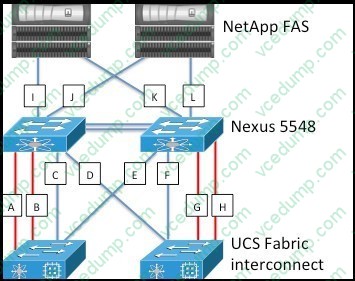

  Refer to the exhibit.



  Following FlexPod recommended practices, which portchannel configuration is valid for the connectivity shown?

  A. A and B. portchannel 1C and E. po2 and vpc 2D and F. po3 and vpc 3G and H. portchannel 1I and K. po11 and vpc 11J and L. po12 and vpc 12
  B. A and B. vpc 1C and E. po2 and vpc 2D and F. po3 and vpc 3G and H. vpc 4I and K. po11 and vpc 11J and L. po12 and vpc 12
  C. A and B. portchannel 1C and D. po2 and vpc 2E and F. po3 and vpc 3G and H. portchannel 4I and J. po11 and vpc 11K and L. po12 and vpc 12
  D. A and B. portchannel 1C and D. vpc 2E and F. vpc 2G and H. portchannel 4I and J. vpc 11K and L. vpc
  E. A and B. po1 and vpc 1C and D. po2 and vpc 2E and F. po3 and vpc 3G and H. po4 and vpc 4I and J. po11 and vpc 11K and L. po12 and vpc 12
  A. A and B. portchannel 1C and E. po2 and vpc 2D and F. po3 and vpc 3G and H. portchannel 1I and K. po11 and vpc 11J and L. po12 and vpc 12

• Question 8:

  Which of the following is a component of stateless computing with Cisco UCS?

  A. Utilization of identity information burned into the hardware
  B. Operating System boot from server local disk
  C. Utilization of service profiles to apply SAN connectivity attributes
  D. Treating each server as a traditional rack mount server
  C. Utilization of service profiles to apply SAN connectivity attributes

• Question 9:

  When configuring a volume to contain a LUN, which administrative tool automatically applies NetApp recommendations?

  A. Data ONTAP command-line interface
  B. Microsoft SystemCenter
  C. OnCommand System Manager
  D. VMware vSphere
  C. OnCommand System Manager

• Question 10:

  Which four are improvements in Hyper-V capabilities in Windows Server 2012 vs. Windows Server 2008 R2? (Choose four)

  A. Increased cluster nodes supported from 16 to 64
  B. VM guest clustering via iSCSI only
  C. SR-IOV networking support
  D. Network QoS support
  E. VM trunk mode
  F. Live migration with five concurrent migration maximum
  G. Physical memory support up to 1 TB
  H. VM memory up to 64 GB
  A. Increased cluster nodes supported from 16 to 64
  C. SR-IOV networking support
  D. Network QoS support
  E. VM trunk mode
