• Question 521:

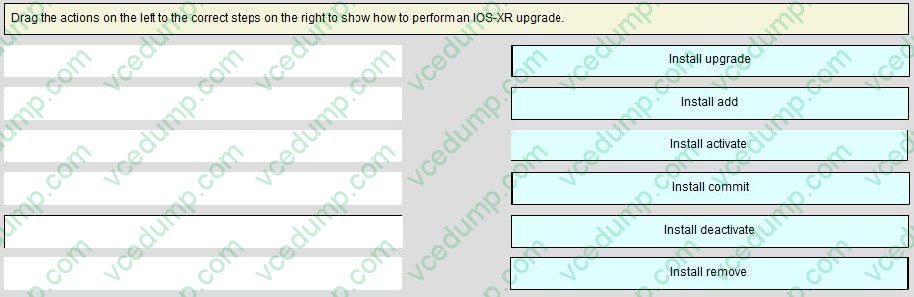

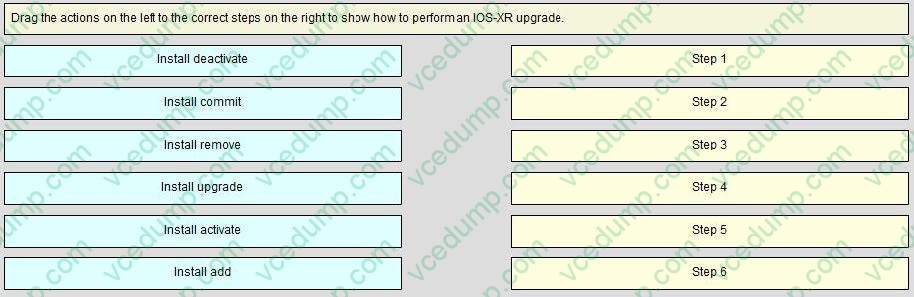

  Drag the actions on the left to the correct steps on the right to show how to perform an IOS-XR upgrade.

  Select and Place:





• Question 522:

  In Cisco IOS XR architecture, what is lightweight messaging?

  A. the communication with several thousand nodes that each run an instance of the kernel
  B. something that reliably multicasts data to various nodes, such as RPs and MSCs, using GSP as the underlying transport
  C. the mode fundamental level, responsible for warning when physical parameters fall outside of operational ranges and shutting down the hardware when parameters approach critical levels
  D. a form of messaging that Cisco designed to create a layer of abstraction between the application that inter process communicate with each other
  D. a form of messaging that Cisco designed to create a layer of abstraction between the application that inter process communicate with each other

• Question 523:



  Refer to the exhibit. Two customer sites are connected via an MPLS Layer 3 VPNv4 network. OSPF is used as a PE-CE routing protocol. EIGRP is used in the internal LAN that connects the CE02. CE01 cannot reach any host connected in this LAN. Which configuration must be applied to fix this issue?

  A. CE2# router ospf 65000 address-family ipv4 vrf VPN_A redistribute eigrp 65000 match internal external 1 external 2
  B. PE2# router bgp 100 address-family ipv4 vrf VPN_A redistribute eigrp 6500 vrf VPN_A
  C. PE2# router bgp 100 address-family ipv4 vrf VPN_A redistribute connected
  D. PE2# router bgp 100 address-family ipv4 vrf VPN_A redistribute ospf 100 vrf VPN_A match internal external 1 external 2
  A. CE2# router ospf 65000 address-family ipv4 vrf VPN_A redistribute eigrp 65000 match internal external 1 external 2

• Question 524:

  Refer to the exhibit A service provider is using the configuration to determine traffic paths based on MPLS EXP marking. Which technology is being implemented?

  A. CBTS
  B. DS-TE
  C. PBTS
  D. IP FBR
  A. CBTS

• Question 525:

  Which constraint is a pre-requisite of implementing configuration replace and configuration rollback?

  A. The device must have available free memory larger than the combined size of the two configuration files.
  B. The directory command must be configured to specify the location and filename prefix for the configuration files.
  C. The path command must be configured to specify the name of the configuration files.
  D. The configuration archive must be configured before performing Configuration Rollback Confirmed Change.
  A. The device must have available free memory larger than the combined size of the two configuration files.

• Question 526:

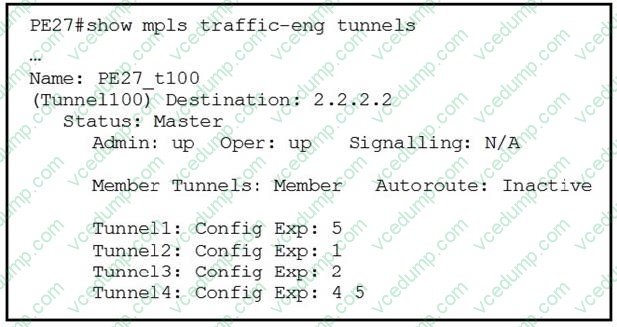

  Refer to the exhibit. All listed MPLS TE tunnels have the autoroute feature enabled. All MPLS TE tunnels are up and running. Which two statements about this configuring are true? (Choose two.)

  A. Traffic entering on PE27 marked with an EXP value of 1 is sent via MPLS TE Tunnel 2.
  B. The outgoing interface towards the tail-end router is MPLS TE Tunnel 100.
  C. Packets with an EXP value of 3 is assigned to MPLS TE Tunnel 1 because of an unmatched EXP.
  D. The EXP bundle master tunnel is not functional because of a signaling failure.
  E. Packets marked with an EXP value of 3 are switched via MPLS TE Tunnel 4.
  F. Packets with unmapped EXP values are forwarded directly via MPLS TE Tunnel 100.
  G. Packets marked with an EXP value of 5 are load balanced across MPLS TE Tunnel 1 and MPLS TE Tunnel 4.
  A. Traffic entering on PE27 marked with an EXP value of 1 is sent via MPLS TE Tunnel 2.
  B. The outgoing interface towards the tail-end router is MPLS TE Tunnel 100.

• Question 527:

  A network engineer is requested to have load sharing over two links to the same destination prefix. The traffic share for the first link must be two times the traffic share of the second link. Which two protocols can fulfill this requirement? (Choose two.)

  A. EIGRP
  B. BGP
  C. ISIS
  D. OSPF
  E. RIP
  F. IGRP
  A. EIGRP
  B. BGP

• Question 528:

  A Layer 3 VPN customer opened a case that reports connectivity loss with remote sites. An operations engineer realized this connectivity loss happened after the LDP label filtering was applied. What is the root cause of this issue?

  A. Labels were not allocated for the PE , P and RR physical interfaces
  B. Labels were not allocated for the PE loopbacks
  C. Labels were not allocated for the CE loopback and physical interfaces
  D. Labels were not allocated for the P loopbacks
  E. Labels were not allocated for the PE, P , and RR loopbacks
  F. Labels were not allocated for the P and PE physical interfaces
  E. Labels were not allocated for the PE, P , and RR loopbacks

• Question 529:

  A service provider engineer has been requested to preserve QoS values when customer packets cross the MPLS backbone. Which Cisco IOS command should the engineer apply and what should the label value be when the LSR at the penultimate hop forwards the MPLS label packets toward the egress PE?

  A. mpls ldp explicit-null with label value of zero
  B. mpls ldp implicit-null with label value of zero
  C. mpls ldp explicit-null with label value of three
  D. mpls ldp implicit-null with label value of three
  A. mpls ldp explicit-null with label value of zero

• Question 530:

  Which statement about L2VPN Pseudowire Switching is not true?

  A. L2VPN Pseudowire Switching allows the user to extend L2VPN Pseudowires across an inter- AS boundary
  B. L2VPN Pseudowire Switching allows the user to extend L2VPN Pseudowires across two separate MPLS networks.
  C. Quality of service is not supported per Pseudowire
  D. L2VPN Pseudowire Switching connects two or more contiguous Pseudowires segments to from an end-toend multihop Pseudowire
  E. The Cisco MPLS Traffic Engineering tunnel selection is not supported
  E. The Cisco MPLS Traffic Engineering tunnel selection is not supported
