Cisco 400-201 Online Practice Questions and Exam Preparation

Cisco 400-201 Online Questions & Answers

• Question 541:

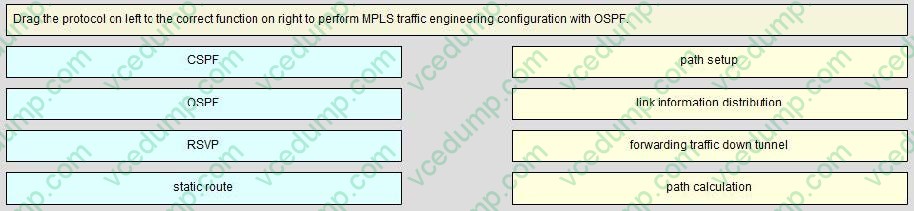

  Drag the protocol on left to the correct function on right to perform MPLS traffic engineering configuration with OSPF.

  Select and Place:





• Question 542:

  Which function is shared amongst all SDRs in a system of Cisco routers running IOS XR?

  A. Protocols
  B. Switch Fabric
  C. Configuration
  D. Routing Table
  B. Switch Fabric

• Question 543:

  SONET's three layers arE. (Choose three.)

  A. DS1
  B. Frame
  C. Path
  D. Line
  E. Section
  C. Path
  D. Line
  E. Section

• Question 544:

  Which two BGP mechanisms solve the full-mesh paradigm? (Choose two)

  A. Confederation
  B. Router policy filtering
  C. Hierarchical VPLS
  D. MPLS VPN
  E. Route reflectors
  F. BGP link state
  G. Community SOO
  A. Confederation
  E. Route reflectors

• Question 545:

  What happens when a broadcast storm is detected?

  A. The traffic threshold reaches 100%.
  B. CPU utilization reaches 100%.
  C. The value of the TotalSuppDiscards counter increments.
  D. The port goes down.
  E. The switch goes down.
  C. The value of the TotalSuppDiscards counter increments.

• Question 546:

  Which three statements about L2TPv3 are true? (Choose three)

  A. L2TPv3 Frame Relay support includes only 32-bit DLCI addressing.
  B. L2TPv3 sessions do not support Frame Relay LMI interworking.
  C. Multipoint DLCI is not supported.
  D. To use DCE or a Network-to-Network Interface on a Frame Relay port, you must configure the frame-relayswitching command.
  E. L2TPv3 feature does not support Frame Relay extended addressing.
  C. Multipoint DLCI is not supported.
  D. To use DCE or a Network-to-Network Interface on a Frame Relay port, you must configure the frame-relayswitching command.
  E. L2TPv3 feature does not support Frame Relay extended addressing.

• Question 547:

  Which two functions are shared amongst all secure domain router in the system? (Choose two)

  A. configuration
  B. protocols
  C. routing tables
  D. chassis-control
  E. switch-fabric
  D. chassis-control
  E. switch-fabric

• Question 548:

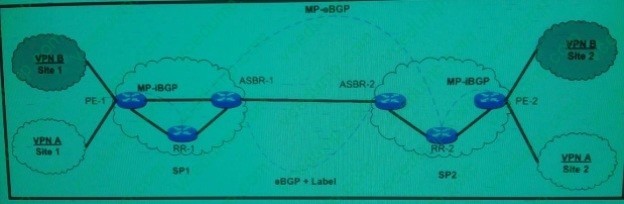

  Refer to the exhibit. A service provider engineer has a requirement to configure an Inter-AS L3VPN with a maximum of one LSP between PE-1 and PE-2. Which two configurations are required to accomplish this goal? (Choose two)

  A. next-hop-self on ASBR's
  B. redistribute bgp on ASBR's
  C. nest-hop-self on RR's
  D. next-hop-unchanged on RR's
  E. ip route on ASBR's
  F. redistribute connected on ASBR's G. next-hop-unchanged on ASBR's
  B. redistribute bgp on ASBR's
  D. next-hop-unchanged on RR's

• Question 549:

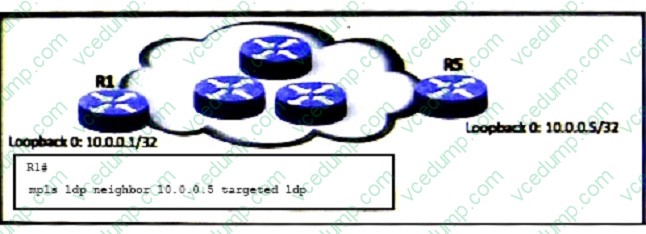

  Refer to the Exhibit,R1 and R5 router are not directly connected loopback 0 is configured as LDP router-id for both R1 and R5 router loopback IPV4 address are reachable between R1 and R5 router. The LDP session between R1 and R5 is not established. There is no access-list applied any router in the path between R1 and R5,which is the reason the LDP session is not working?

  A. The LDP ID must be the physical interface of the interface tunnel between the LDP neighbor
  B. R5 is not configured to accept targeted LDP sessions
  C. Targeted LDP works only for directly connected LDP neighbors
  D. LDP authentication is missing on both R1 and R5
  B. R5 is not configured to accept targeted LDP sessions

• Question 550:

  A postman script to poll a specific object was working a few minutes ago, but suddenly stopped working. The APIC is still reachable from you clients and seems to function normally. no change was made to script which option describe the most likely cause of this issue?

  A. The authentication token has expired, you need to reauhthenticate first
  B. The object data is being returned as JSON instead of XML
  C. The APIC license expired
  D. A man-in-the-middle attack is preventing the script to execute as expected
  A. The authentication token has expired, you need to reauhthenticate first
