• Question 511:

  In AToM, control word is an optional 4-byte field used in the pseudowire packet. The control word carries generic and Layer 2 payload-specific information to emulate L2 packets correctly. In pseudowire packet, where is this control word inserted?

  A. Inserted between the MPLS label stack and the Layer 3 payload
  B. Inserted between the MPLS label stack and the Layer 3 Header
  C. Inserted between the MPLS label stack and the Layer 2 payload
  D. Inserted between the MPLS label stack and the Layer 2 header
  D. Inserted between the MPLS label stack and the Layer 2 header

• Question 512:

  If the OSPF protocol is used to connect customer edge (CE) routers to service provider edge (PE) routers in the VPN backbone, which two options best describe the use of SHAM links?

  A. A sham-link is created between any two VPN sites that belong to the same OSPF area and share an OSPF backdoor link
  B. A sham-link is seen as an intra-area link between PE routers, an OSPF adjacency is created and database is exchanged
  C. A sham-link is created between two directly connected PE routers so that it is preferred over the low speed backdoor door
  D. A sham-link is part of OSPF network of MPLS-VPN provider.
  A. A sham-link is created between any two VPN sites that belong to the same OSPF area and share an OSPF backdoor link
  B. A sham-link is seen as an intra-area link between PE routers, an OSPF adjacency is created and database is exchanged

• Question 513:

  DRAG DROP

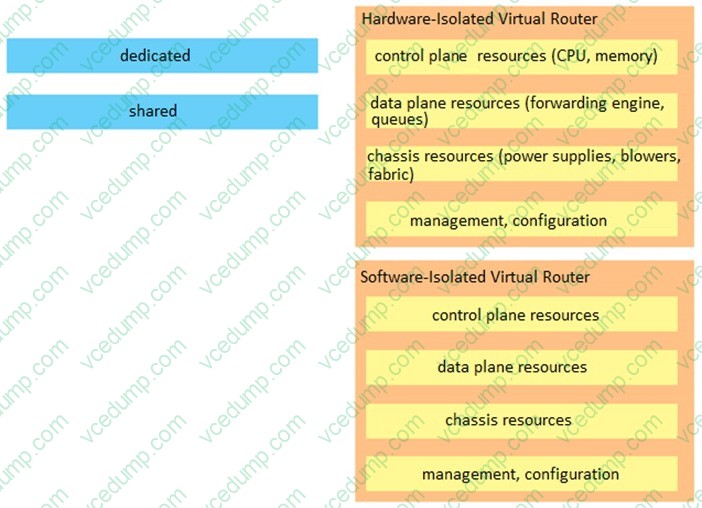

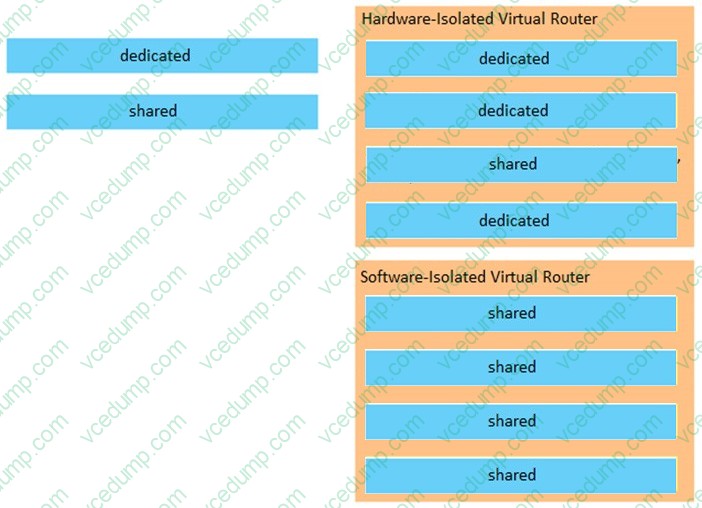

  Drag and drop the Virtualized Routing Architecture characteristics from the left onto the correct categories for each isolated virtual router type on the right. Not all options are used.

  Select and Place:





  ---

  Reference: https://www.cisco.com/c/en/us/solutions/collateral/routers/carrier-routing-system/white_paper_c11-512753.html

• Question 514:

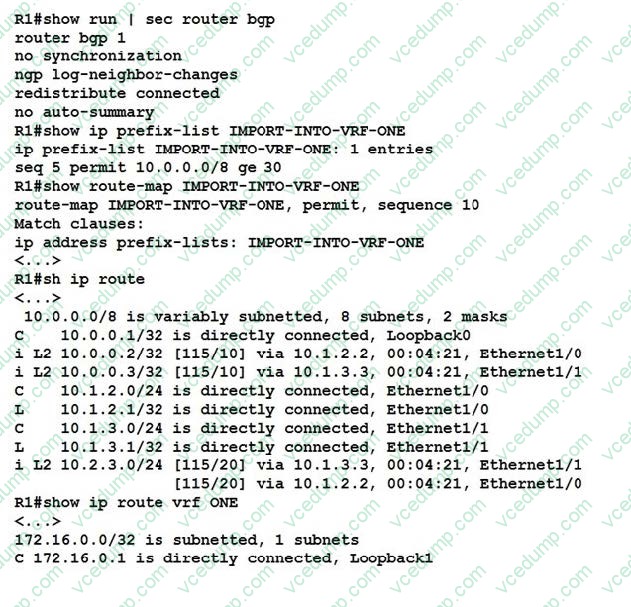

  Refer to the exhibit. A network engineer adds the following configuration:

  Vrf definition ONE Address-family ipv4 unicast Import ipv4 unicast map IMPORT-INTO-VRF-ONE

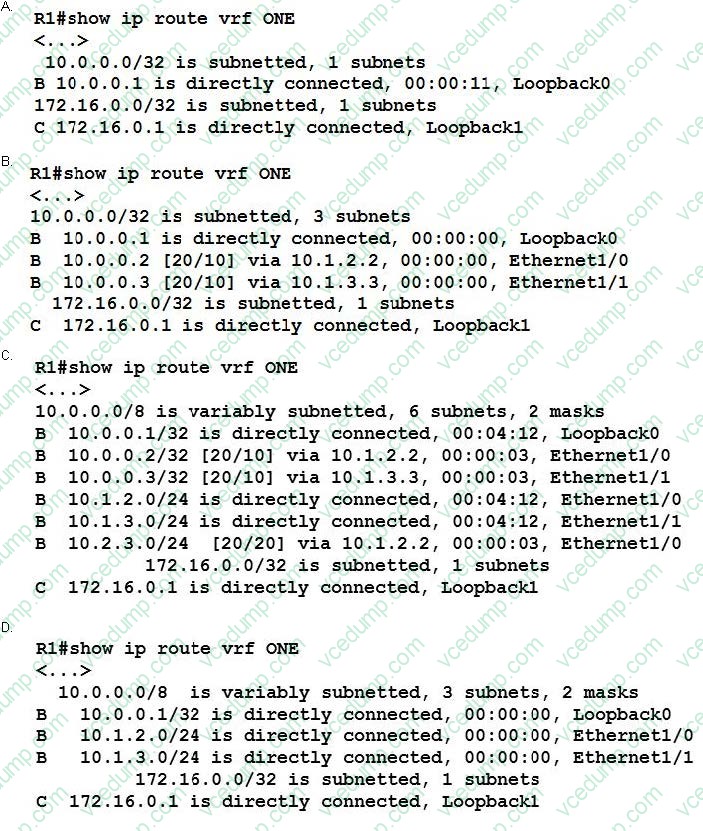

  What is the result, in regard to the routing table for vrf ONE?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 515:

  Which three of these are types of Ethernet Virtual Connections (EVCs) in the MEF concept? (Choose three)

  A. rooted multipoint EVC (E-Tree)
  B. point-to-point EVC (E-Line)
  C. point-to-multipoint EVC (E-Tree)
  D. hub spoke EVC (E-Tree)
  E. multipoint-to-multipoint EVC (E-LAN)
  A. rooted multipoint EVC (E-Tree)
  B. point-to-point EVC (E-Line)
  E. multipoint-to-multipoint EVC (E-LAN)

• Question 516:

  ATM carries IP and PPP information with ATM cells. What ATM adaptation Layer is used when an ATM cell carries IP packets and PPP frames?

  A. AAU2
  B. AAL3
  C. AAL4
  D. AAL5
  D. AAL5

• Question 517:

  Which statement about Frame Relay is not true?

  A. Static mapping is used when the remote router does not support Inverse ARP.
  B. Frame Relay Inverse ARP requires LMI capability to construct an address to the DLCI mapping table on the router.
  C. Frame Relay Inverse ARP is disabled by default in Cisco IOS Software for all protocols that are enabled on the physical interface.
  D. Inverse ARP does not work when LMI is disabled.
  E. Frame Relay provides forward and backward congestion notification messages.
  C. Frame Relay Inverse ARP is disabled by default in Cisco IOS Software for all protocols that are enabled on the physical interface.

• Question 518:

  How many bits does EXP occupy in the MPLS label header?

  A. 8
  B. 4
  C. 3
  D. 1
  E. 2
  C. 3

• Question 519:

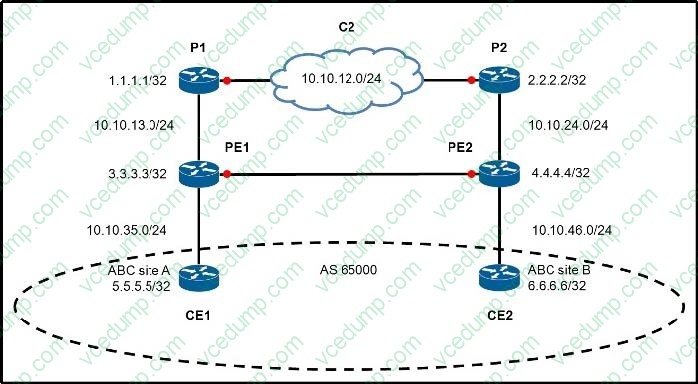

  Refer to the exhibit.



  An engineer is viewing the CE1 routing table for CE2 Loopback 0. Each CE runs OSPF with its PE.

  Which statement describes why the CE2 Loopback address is installed as an external OSPF route at the CE1 routing table?

  A. PE1 and PE2 have mutual redistribution between OSPF and BGP.
  B. CE2 is configured under OSPF with the command redistribute connected.
  C. CE1 and CE2 are in different areas.
  D. CE1 and CE2 have different OSPF processes.
  E. PE1 and PE2 have different OSPF VRF processes.
  E. PE1 and PE2 have different OSPF VRF processes.

• Question 520:

  Which three of these are optical channel data unit (ODU) overhead fields? (Choose three)

  A. general communication channel 0 (GCC0)
  B. section monitoring
  C. reserved (RES)
  D. general communication channels 1 and 2 (GCC1 GCC2)
  E. tandem connection monitoring activation deactivation (TCM ACT)
  C. reserved (RES)
  D. general communication channels 1 and 2 (GCC1 GCC2)
  E. tandem connection monitoring activation deactivation (TCM ACT)
