Cisco 400-051 Online Practice Questions and Exam Preparation

Cisco 400-051 Online Questions & Answers

• Question 61:

  Refer to the exhibit.



  In a Cisco Unified CM environment with default QoS configuration in the cluster, IP phone users report voice quality issues when they are downloading large files to their PC. Which two configuration charges solve this problem? (Choose two)

  A. The srr-queue bandwidth share command must be changed to increase the weight of queue 1.
  B. The global configuration of threshold 3 of queue 4 must be changed to mls qos srr-queue cos-map queue 4 threshold 3 0 5.
  C. The srr-queue bandwidth shape command must be changed to increase the weight of queue 1.
  D. The srr-queue bandwidth shape command must be removed from the interface configuration.
  E. The priority-queue out command is missing from the interface configuration.
  C. The srr-queue bandwidth shape command must be changed to increase the weight of queue 1.
  E. The priority-queue out command is missing from the interface configuration.

• Question 62:

  A Collaboration engineer implemented Cisco EMCC between Cisco Unified CM clusters. The administrator has configured the bulk certificate management and exported the certificates to the SFTP server. After importing the certificates into each of the clusters, the administrator tested Cisco EMCC on a phone, but received "Login is unavailable (208)". Which two steps resolve this error? (Choose two)

  A. Update the cluster IDs so that they are unique in the EMCC network.
  B. Enable the Allow Proxy service parameter on both clusters.
  C. Restart the Cisco CallManager and Cisco Tomcat Servers.
  D. Associate a user device profile for the user in the remote cluster.
  E. Consolidate the exported certificates and reimport into each cluster.
  C. Restart the Cisco CallManager and Cisco Tomcat Servers.
  E. Consolidate the exported certificates and reimport into each cluster.

• Question 63:

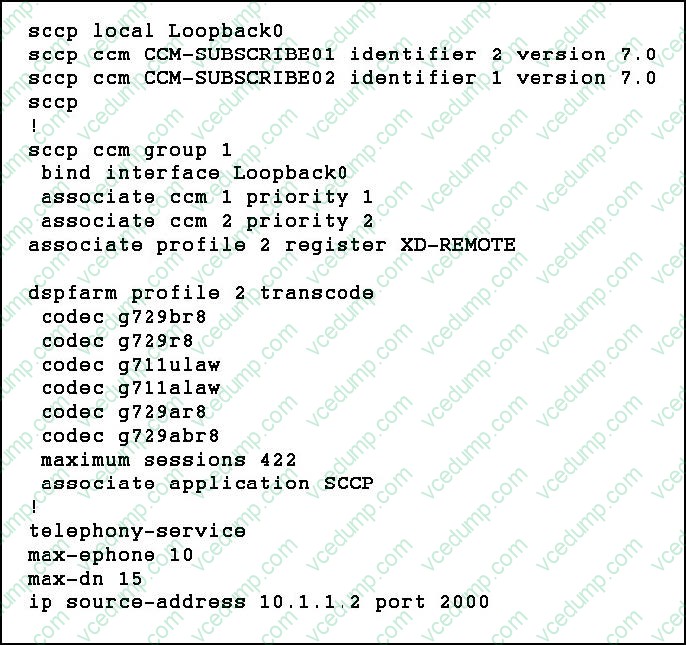

  Refer to the Exhibit.



  An Engineer is troubleshooting transcoding issue in a remote branch office. After a WAN outage all ip phones can register to a CME in SRST 2900 ISR Router.

  However, the users reported that calls disconnect after pressing the answer softkey.

  Which three configurations are necessary for successful media resource failover? (Choose three.)

  A. SCCP CCM GrouplAssociate CCM 3 priority 1
  B. SCCP SSM 10.1.1.2 identifier 3 version 7.0
  C. Telephony-serviceSDSpfarm units 1SDSpfarm tag 1 XD-remote
  D. Seep ccm 10.1.1.2 identifier 1 version 7.0
  E. Associated profile 3 register XD-remote2
  F. Seep ccm group 1Associate ccm 3 priority 3
  B. SCCP SSM 10.1.1.2 identifier 3 version 7.0
  C. Telephony-serviceSDSpfarm units 1SDSpfarm tag 1 XD-remote
  F. Seep ccm group 1Associate ccm 3 priority 3

• Question 64:

  Refer to the exhibit.



  All displayed devices are registered to the same Cisco Unified Communications Manager server and the phones are engaged in an active call. Assume that the provided configurations exist at the phone line level and multicast MOH is disabled cluster wide.

  Which description of what will happen when the user of IP phone A presses the Hold soft key is true?

  A. IP phone B receives audio source 2 from MOH server A.
  B. IP phone B receives audio source 3 from MOH server A.
  C. IP phone B receives audio source 2 from MOH server B.
  D. IP phone B receives audio source 3 from MOH server B.
  E. IP phone B receives audio source 1 from MOH server A.
  C. IP phone B receives audio source 2 from MOH server B.

  ---

  Because audio source 2 is in top of the MRGL List and it will be selected locally first.

• Question 65:

  A Cisco Unified Cm user is set up with one remote destination profile that has two remote destination numbers: the first destination number is the user's mobile phone in country A and the second is a mobile phone located in country . All outbound calls are centralized from the gateway at country A. The user reports that inbound calls are properly routed to the mobile phone as long as the user is in country A. But inbound calls are not successfully routed to country B. Which two options could be the cause of this? (Choose two)

  A. The enable mobile connect option must be selected under the user's second remote destination number.
  B. The value of remote destination limits should be chaned to 2 instead of the default value of 4 under the end user page.
  C. The enable mobile voice access option must be selected under the end user page.
  D. The value of maximum wait time for desk pickup should be changed to 20000 instead of the default of D. 10000, under the end user page.
  E. The rerouting calling search space assigned to the user's remote destination profile must have access to international calls.
  A. The enable mobile connect option must be selected under the user's second remote destination number.
  E. The rerouting calling search space assigned to the user's remote destination profile must have access to international calls.

• Question 66:

  Refer to the exhibit.



  Which ds0-group option should you select to support automated number identification information collection on inbound calls for this digital T1 voice circuit?

  A. eandm-wink-start
  B. eandm-delay-dial
  C. eandm-delay-dial
  D. eandm-lmr
  E. eandm-fgd
  E. eandm-fgd

  ---

  Because it can receive ANI information and sends DNIS info. But can't send ANI.

  References: http://www.cisco.com/c/en/us/td/docs/ios-xml/ios/voice/isdn/configuration/15-mt/vi-15-mt-book/vi-imp-t1cas-voip.html

• Question 67:

  Which directory path on Cisco Unified CM publisher is used to temporarily store the Call Detail Records collected from other nodes until they are processed by the CDR Repository Manager?

  A. car/yyyymmdd
  B. preserve/yyyymmdd
  C. cdr/yyyymmdd
  D. collected/yyyymmdd
  E. processed/yyyymmdd
  B. preserve/yyyymmdd

• Question 68:

  How many RTP streams exist on the network when a Cisco Unified Contact Center Express agent is engaged in a call that is being silently monitored and recorded?

  A. 3
  B. 4
  C. 5
  D. 6
  E. 8
  D. 6

  ---

  6 RTP streams exist when UCCE agent is engaged in a call when it is being silently monitored.

  References: http://www.cisco.com/en/US/docs/voice_ip_comm/cust_contact/contact_center/crs/express_9_0/design/UCCX_BK_UD5B347F_00_uccx-solution-reference-network-design_chapter_0110.html

• Question 69:

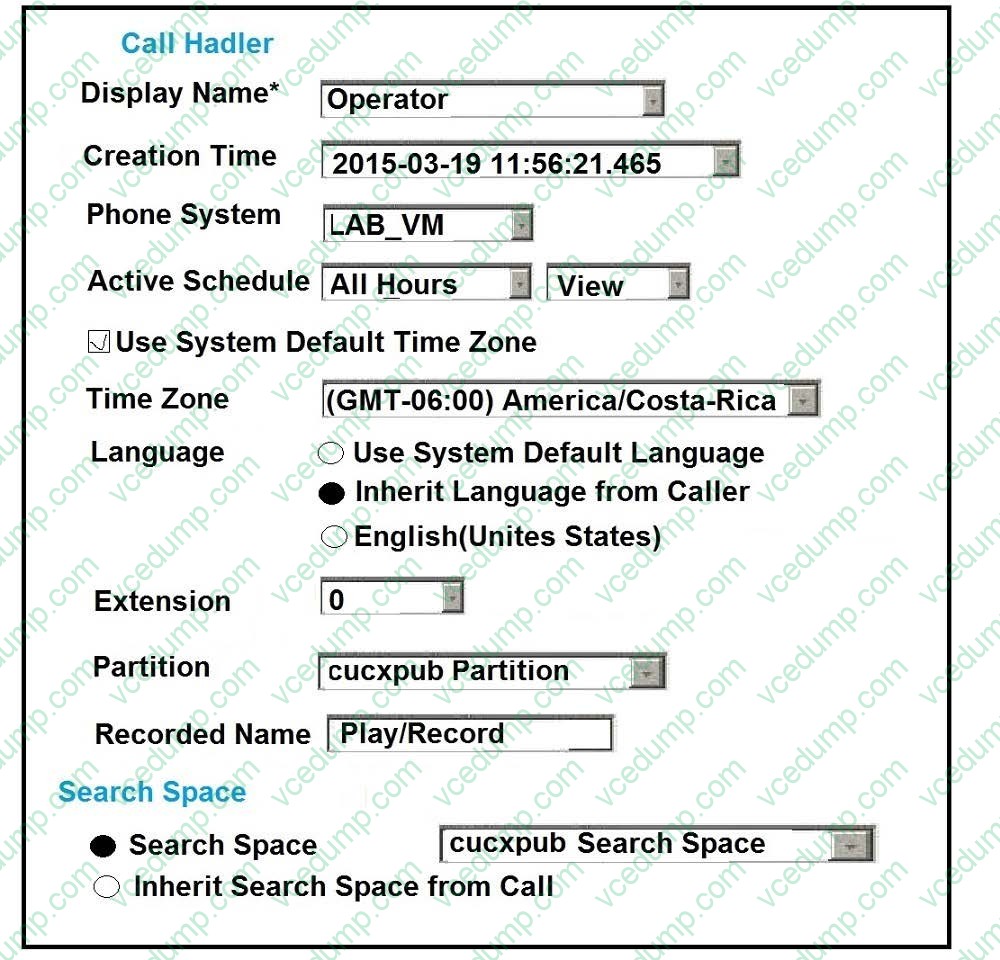

  Refer to the exhibit. A Unity administrator is assigned to determine why the Corporate System users cannot call certain Call Handlers. What configuration element should be changed to allow the users to reach this call handler?



  A. The Partition
  B. The Search Space
  C. The Active Schedule
  D. The Phone System
  D. The Phone System

• Question 70:

  Which three options are valid per-session video conference participants supported on the Cisco Integrated Router Generation 2 with packet voice and video digital signal processor 3? (Choose three.)

  A. 3
  B. 4
  C. 6
  D. 8
  E. 9
  F. 12
  G. 16
  B. 4
  D. 8
  G. 16

  ---

  The integrated video conferencing services use the same DSP resources on PVDM3s that are used for widely deployed ISR G2 voice capabilities. These modules, in conjunction with Cisco IOS Software, perform audio and video mixing, video transcoding for certain resolutions, and other functions for video endpoints. PVDM3 modules support flexible media resources and conference profile management to maximize capacity with predictable end-user experiences. Both homogenous and heterogonous video conferences are supported. A homogenous conference refers to one in which participants connect to the ISR G2 with devices that support the same video format attributes (for example, the same codec, resolution, frame rate, and bit rate). A heterogeneous conference refers to one in which participants can connect to a conference bridge with devices that support different video format attributes. Each conference allows 4-, 8-, or 16-party participants.

  References: http://www.cisco.com/c/en/us/products/collateral/unified-communications/voice-video-conferencing-isr-routers/data_sheet_c78-649427.html
