Cisco 400-051 Online Practice Questions and Exam Preparation

Cisco 400-051 Online Questions & Answers

• Question 281:

  Refer to the exhibit.



  A network engineer is troubleshooting a call routing issue where failed calls on the primary path (SiteA-RTR) were not sent to the secondary path (SiteC-RTR).

  Why is CUCM unable to extend the call setup through SiteC-RTR?

  A. Stop routing on Q.931 Disconnect cause code is set to 27
  B. Stop routing on Unallocated Number Flag is set to true
  C. Stop Routing on User Busy Flag is set to true
  D. Retry count for SIP Invite is set to 1
  E. Retry count for SIP response is set to 1
  B. Stop routing on Unallocated Number Flag is set to true

• Question 282:

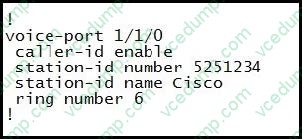

  Refer to the exhibit.



  In an effort to troubleshoot a caller ID delivery problem, a customer emailed you the voice port configuration on a Cisco IOS router. Which type of voice port is it?

  A. FXS
  B. EandM
  C. BRI
  D. FXO
  E. DID
  D. FXO

  ---

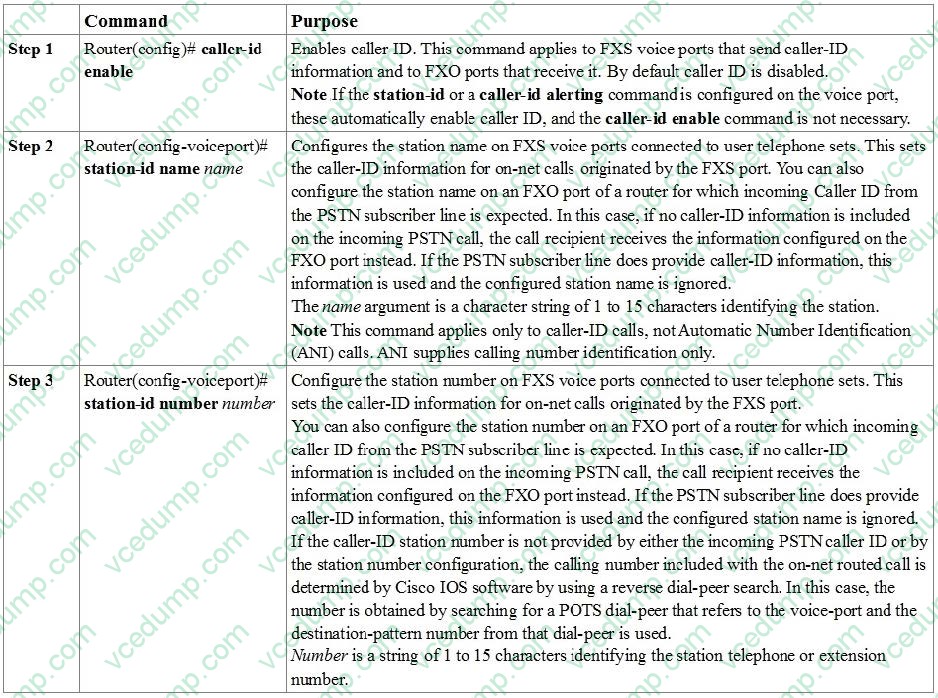

  To configure caller-ID on FXS and FXO voice ports, use the following commands beginning in global configuration mode:



  References: http://www.cisco.com/c/en/us/td/docs/ios/12_2/voice/configuration/guide/fvvfax_c/vvfclid.html

• Question 283:

  Which two statements describe specs-based virtualization support model for third-party servers running CISCO UC applications? (Choose two.)

  A. Cisco UC Virtualization Foundation software is mandatory.
  B. Only direct-attached storage is allowed.
  C. Generic server hardware must be validated by Cisco.
  D. VMware vSphere is mandatory.
  E. VMware vCenter is mandatory.
  F. Cisco TAC supports the server when all spec-based rules are followed.
  D. VMware vSphere is mandatory.
  E. VMware vCenter is mandatory.

  ---

  Reference: https://www.cisco.com/c/dam/en/us/td/docs/voice_ip_comm/uc_system/virtualization/collaboration-virtualization-hardware.html

• Question 284:

  Which two types of patterns are always nonurgent in Cisco Unified Communications Manager version 11.0 (Choose two.)

  A. Voice Mail Directory Number
  B. Remote Destination Directory Number
  C. Voice Mail Pilot
  D. Hunt Pilot
  E. Route Pattern
  F. Translation Pattern
  A. Voice Mail Directory Number
  C. Voice Mail Pilot

• Question 285:

  Which factor is most important when using heartbeats to maintain the high-availability status of an application?

  A. bandwidth
  B. latency
  C. routing
  D. round-trip time
  D. round-trip time

• Question 286:

  Which two components are required when configuring the Cisco Unified Communications Manager for time-of-day routing? (Choose three.)

  A. Partition
  B. Time Period
  C. Time Schedule
  D. Time Zone
  E. Date Time Group
  A. Partition
  B. Time Period
  C. Time Schedule

• Question 287:

  Refer to the exhibit.



  Which SIP message header is used to tunnel QSIG messages across the SIP network when the OGW receives a call bound for the TGW?

  A. Content-TypE. application/sdp
  B. Content-TypE. application/qsig
  C. Content-TypE. message/ISUP
  D. Content-TypE. message/external-body
  E. Content-TypE. application/x-q931
  B. Content-TypE. application/qsig

  ---

  Tunneling over SIP

  The Cisco gateway receives QSIG messages from the PBX side and then identifies the destination of the message (or call). The QSIG messages received from the PBX are encapsulated within SIP messages as Multipurpose Internet Mail

  Extensions (MIME) bodies and are sent (tunneled) across the IP network to the recipient gateway.

  When encapsulating a QSIG message (for switch type primary-qsig) inside a SIP message, Cisco gateways include the QSIG message in a MIME body of the SIP request or response using media type application/QSIG:



  Content-Type: application/QSIG



  References: http://www.cisco.com/c/en/us/solutions/collateral/enterprise-networks/empowered-branch-solution/white_paper_c11_459092.html

• Question 288:

  Which three Software Licensing transport setting types are available on UCM 12.0 for license management? (Choose three.)

  A. Prime License Manager
  B. Enterprise License Manager
  C. Transport Gateway
  D. Smart License Manager Proxy
  E. Direct
  F. HTTP/HTTPS Proxy
  C. Transport Gateway
  E. Direct
  F. HTTP/HTTPS Proxy

• Question 289:

  Which Device Pool configuration setting will override the device-level settings only when a device is roaming within a device mobility group?

  A. Region
  B. Location
  C. SRST Reference
  D. Calling Party Transformation CSS
  E. Media Resource Group List
  D. Calling Party Transformation CSS

  ---

  Device Mobility Related Settings: The parameters under these settings will override the device-level settings only when the device is roaming within a Device Mobility Group. The parameters included in these settings are: ?Device Mobility Calling Search Space ?AAR Calling Search Space ?AAR Group ?Calling Party Transformation CSS ?Called Party Transformation CSS The device mobility related settings affect the dial plan because the calling search space dictates the patterns that can be dialed or the devices that can be reached.

• Question 290:

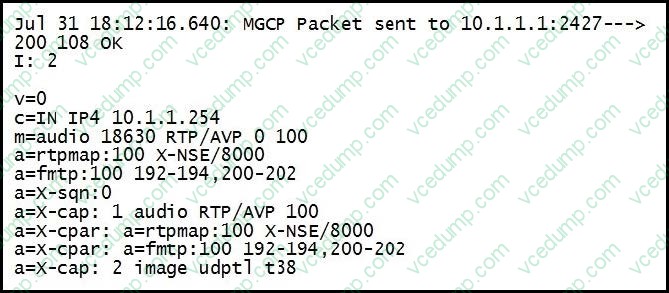

  Refer to the exhibit.



  You received this debug output to troubleshoot a Cisco IOS MGCP gateway media-related problem at a customer site. What is the purpose of this message?

  A. The MGCP gateway is responding to an RQNT message from Cisco Unified Communications Manager to poll the media capabilities on its endpoints.
  B. The MGCP gateway is responding to an AUEP message from Cisco Unified Communications Manager to poll the media capabilities on its endpoints.
  C. The MGCP gateway is responding to an AUCX message from Cisco Unified Communications Manager to poll the active calls on its endpoints.
  D. The MGCP gateway is responding to an MDCX message from Cisco Unified Communications Manager during a call setup.
  E. The MGCP gateway is responding to a CRCX message from Cisco Unified Communications Manager during a call setup.
  E. The MGCP gateway is responding to a CRCX message from Cisco Unified Communications Manager during a call setup.
