Cisco 400-051 Online Practice Questions and Exam Preparation

Cisco 400-051 Online Questions & Answers

• Question 121:

  Which configuration file does a Cisco IP phone with MAC address 1111.2222.3333 request from the TFTP server when an Initial Trust List file is present?

  A. SEP111122223333.cnf.xml
  B. SEP111122223333.cnf
  C. SEP111122223333.cnf.xml.sgn
  D. SEPDefault.cnf.xml.sgn
  E. SEP111122223333.cnf.xml.enc.sgn
  C. SEP111122223333.cnf.xml.sgn

• Question 122:

  Which file does a Cisco IP phone with MAC address 1111.2222.3333 request from the TFTP server when TFTP configuration encryption is enabled?

  A. SEP111122223333.cnf.xml.enc
  B. SEP111122223333.cnf.xml.enc.sgn
  C. SEP111122223333.cnf.xml.sgn.enc
  D. SEPDefault.cnf.xml.enc.sgn
  E. SEP111122223333.xml.enc
  B. SEP111122223333.cnf.xml.enc.sgn

• Question 123:

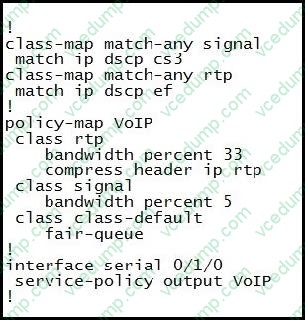

  Refer to the exhibit.



  Assume that the serial interface link bandwidth is full T1. What is the bandwidth that is guaranteed for voice signaling traffic with a DSCP value of CS3?

  A. 33 percent of 1.544 Mb/s
  B. 5 percent of 1.544 Mb/s
  C. 38 percent of 1.544 Mb/s
  D. 62 percent of 1.544 Mb/s
  E. 0 percent of 1.544 Mb/s
  B. 5 percent of 1.544 Mb/s

  ---

  Under the policy map VOIP the CS3 value falls under the signal class-map, which has been allocated 5 percent of the bandwidth.

• Question 124:

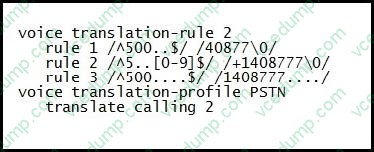

  Refer to the exhibit.



  Which number is sent as the caller ID when a user at extension 5001 places a call that matches this translation profile?

  A. 14087775001
  B. +4087775001
  C. 4087750001
  D. +14087775001
  D. +14087775001

  ---

  When someone dials 5001, it will match rule 2 because it exactly starts with 5(five) using the ^ sign and ends with [0-9] followed by $. In replace pattern you can see +1408777 and \0 means all set of match pattern. Thus, +14087775001.

• Question 125:

  Tom Lee is an active user in a Cisco Unified CM deployment with fully functional LDAP synchronization and authentication to an Active Directory. Daily resynchronization is set at 11:00 pm. At 8:00 am on March 1st 2014, this user was

  deleted from the AD.

  What will Tom Lee experience when he attempts to log in Extension Mobility at an IP phone and then access his Unified CM User Options page on his PC, at 9:00 am on March 1st 2014?

  A. Extension Mobility will not work, but the User Options page will work.
  B. Extension Mobility and the User Options page will not work.
  C. Extension Mobility will work, but the User Options page will not work.
  D. Extension Mobility and the User Options page will work.
  E. The information provided is insufficient to answer this question.
  C. Extension Mobility will work, but the User Options page will not work.

• Question 126:

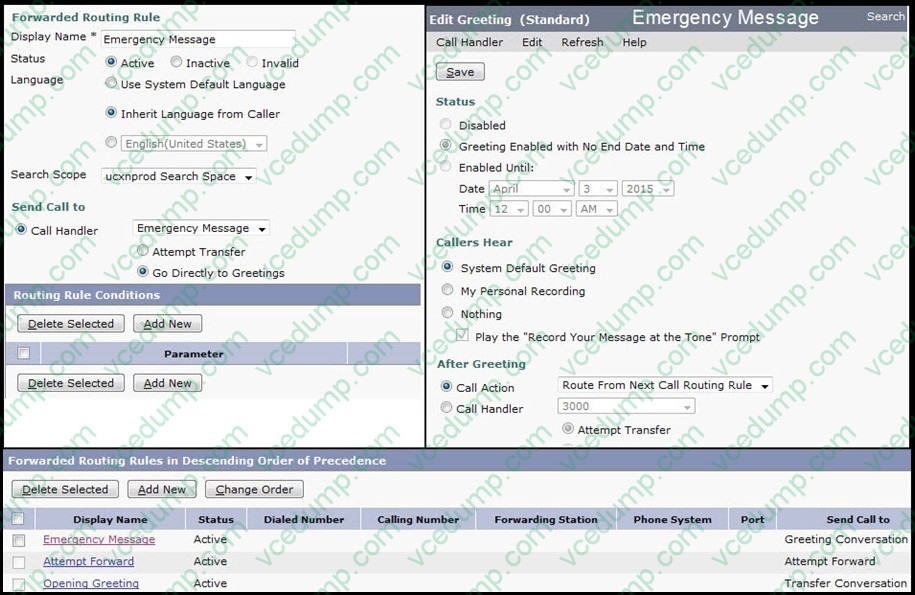

  Refer to the exhibit.



  What does an outside caller hear when calling a user and forwarding to Cisco Unity Connection?

  A. The caller hears the Emergency greeting, followed by the voicemail greeting of the user they originally called.
  B. The caller hears the message "Emergency Message is not available," followed by the voicemail greeting of the user they originally called.
  C. The caller hears the emergency greeting followed by the Opening Greeting message.
  D. The caller hears the Main Message greeting and then the call is disconnected.
  B. The caller hears the message "Emergency Message is not available," followed by the voicemail greeting of the user they originally called.

• Question 127:

  Which two statements about the restrictions for support of H.239 are true? (Choose two.)

  A. SIP to H323 video calls using H.239 are not supported.
  B. Redundancy for H.323 calls is not supported.
  C. H.239 calls are not supported over intercluster trunks with Cisco Unified Communications Manager.
  D. H.239 is not supported with third-party endpoints.
  E. Cisco Unified Communications Manager supports a maximum of three video channels when using H.239.
  A. SIP to H323 video calls using H.239 are not supported.
  B. Redundancy for H.323 calls is not supported.

  ---

  Restriction for Support for H.239

  The Support for H.239 feature has the following restrictions:

  Interworking SIP-H.323 Video calls using H.239 is not supported.

  Redundancy for H.323 calls is not supported.

  A fast-start request cannot include a request to open an H.239 additional video channel as it is not supported.

  H.239 systems based on H.235 is not supported.

  The SBC does not support call transfer for H.323 calls. When an H.323 endpoint is placed on hold, it closes its media as well as video channels.

  References: http://www.cisco.com/c/en/us/td/docs/routers/asr1000/configuration/guide/sbcu/2_xe/sbcu_2_xe_book/sbc_h239.html

• Question 128:

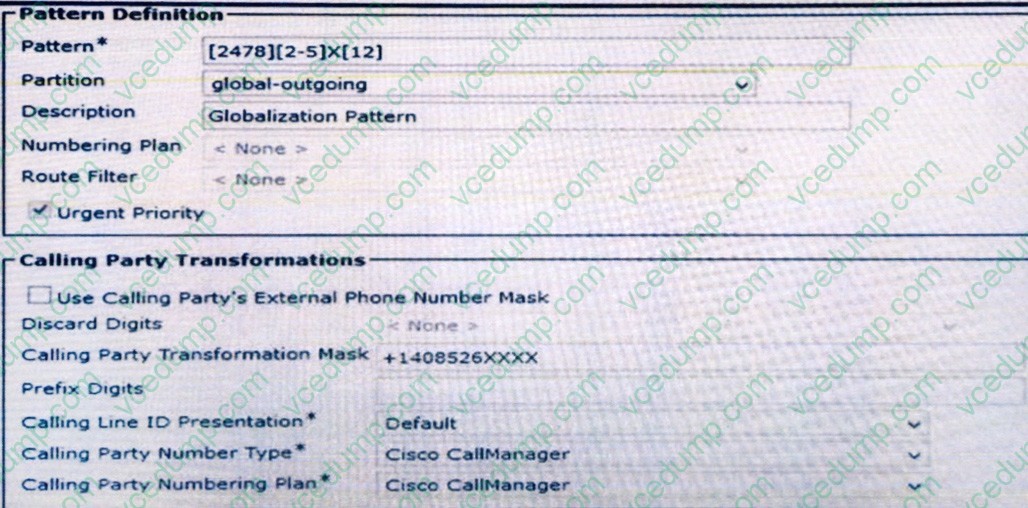

  Refer to the Exhibit.



  Which three Cisco Unified CM internal extension match the globalization pattern shown and provide a globalized calling party number? (Choose three.)

  A. 2041
  B. 2671
  C. 3392
  D. 4202
  E. 7352
  F. 8253
  A. 2041
  D. 4202
  E. 7352

• Question 129:

  What does a Cisco Expressway-E do when it receives a SIP REGISTER message from a Jabber client for MRA phone service registration?

  A. It performs a DNS lookup for the Expressway-C and establishes a new TCP connection to it before forwarding the REGISTER message to the Expressway-C
  B. It sends a 200 OK for the REGISTER back to the Jabber client if this client has previously been provisioned through the Expressway E and C pair
  C. It sends a timestamped SERVICE message to the Expressway-C before forwarding the REGISTER message to the Expressway-C
  D. It forwards the REGISTER message to the Expressway-C which then forwards it to the UCM for phone service registration
  B. It sends a 200 OK for the REGISTER back to the Jabber client if this client has previously been provisioned through the Expressway E and C pair

• Question 130:

  Which three are Video Call Traffic Class configurable on Cisco Unified CM? (Choose three.)

  A. High-definition Endpoint
  B. Desktop
  C. Standard Telepresence Conferencing
  D. Mixed
  E. Standard Telepresence Endpoint
  F. 3rd Party Conferencing
  G. Immersive
  H. Audio-only
  B. Desktop
  G. Immersive
  H. Audio-only
