Cisco 352-001 Online Practice Questions and Exam Preparation

Cisco 352-001 Online Questions & Answers

• Question 551:

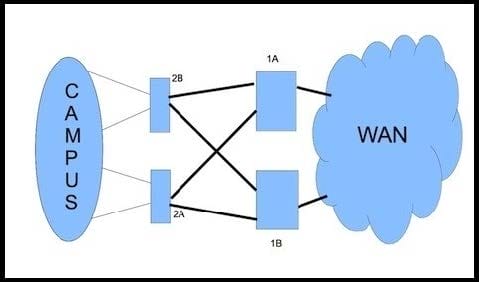

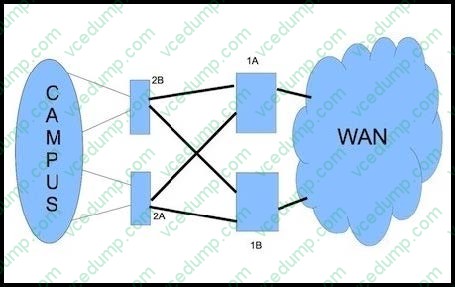

  Refer to the exhibit.



  How would you adjust the design to improve convergence on the network?

  A. Add an intra-POP link between routers 1A and 1B, and enable IP LFA FRR.
  B. Use an IP SLA between the end stations to detect path failures.
  C. Enable SSO-NSF on routers 1A and 1B.
  D. Use BGP to connect the sites over the WAN.
  A. Add an intra-POP link between routers 1A and 1B, and enable IP LFA FRR.

• Question 552:

  Refer to the exhibit.



  All of these network devices are running IPv6. When host A is attached to this link, how will it discover the presence of routers B and C?

  A. Routers B and C will respond to an ICMP get route request sent by host A.
  B. Routers B and C will detect the addition of the new host the first time it transmits any packets, and will send an ICMP router discovery reply to host A.
  C. Host A will discover routers B and C through the neighbor discovery process.
  D. Routers B and C send out periodic gratuitous ARPv6 messages to alert newly attached hosts to their presence.
  C. Host A will discover routers B and C through the neighbor discovery process.

• Question 553:

  Which three statements accurately describe OSPF route summarization? (Choose three.)

  A. OSPF routes can be summarized at any OSPF router in the network using area range or summary address commands.
  B. OSPF internal routes can be summarized only at the ABRs.
  C. OSPF type 5 external routes can be summarized only at the ASBRs.
  D. Route summarization can lead to a more stable network.
  E. OSPF internal routes are automatically summarized via type 3 summary LSAs.
  F. A flat addressing scheme is required in order to summarize OSPF routes.
  B. OSPF internal routes can be summarized only at the ABRs.
  C. OSPF type 5 external routes can be summarized only at the ASBRs.
  D. Route summarization can lead to a more stable network.

• Question 554:

  A device attached to a router has very strict policing and no burst. To avoid traffic being dropped, what is the maximum data burst leaving the router (in bytes) that has a shaper configured for 20 Mb/s with a Tc of 4 ms?

  A. 5 KB
  B. 10 KB
  C. 80 KB
  D. 640 KB
  C. 80 KB

• Question 555:

  AS100 and AS200 each have two peering points in different parts of their network. AS100 would like to use one of the links and keep the other link as backup. What should be changed for the design inside AS100 for prefixes received from AS200?

  A. MED
  B. weight
  C. AS-PATH
  D. local preference
  D. local preference

• Question 556:

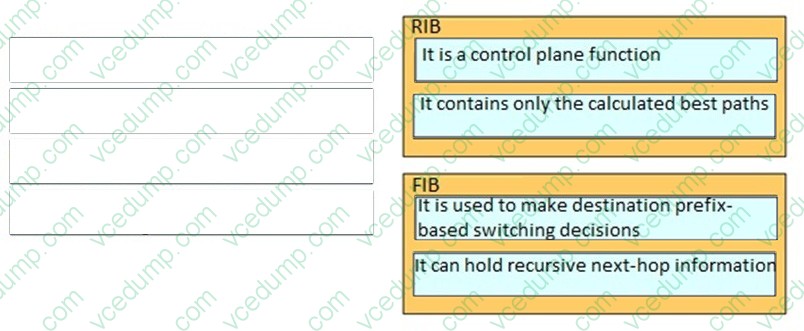

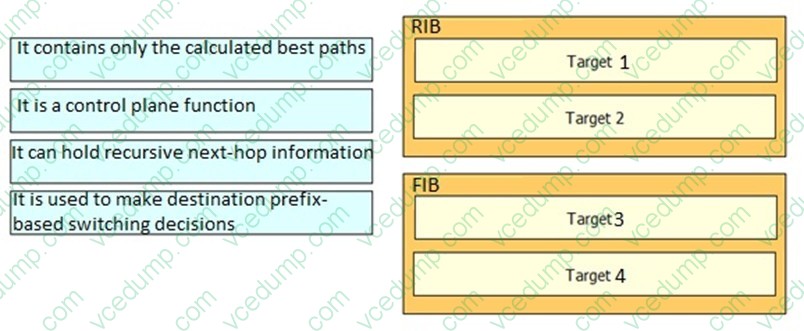

  DRAG DROP

  Drag the definitions on the left with the corresponding RIB or FIB function on the right.

  Select and Place:





• Question 557:

  Refer to the exhibit.



  Will traffic sourced from router A and destined for a host on network 10.1.1.0/24 always take the optimal path to that host?

  A. No, if router A chooses to forward traffic destined to a host on the 10.1.1.0/24 network to router B, it will take a less than optimal path to reach its destination.
  B. Yes, router A has enough information to always direct traffic to router C when forwarding traffic to a host on the 10.1.1.0/24 network.
  C. Yes, router B will forward the traffic towards 10.1.1.0/24 correctly, if router A chooses that path.
  D. It doesn't matter which path to a host on 10.1.1.0/24 router A chooses, through router B or router C, since they are equal in cost.
  E. It depends on the routing protocol.
  A. No, if router A chooses to forward traffic destined to a host on the 10.1.1.0/24 network to router B, it will take a less than optimal path to reach its destination.

• Question 558:

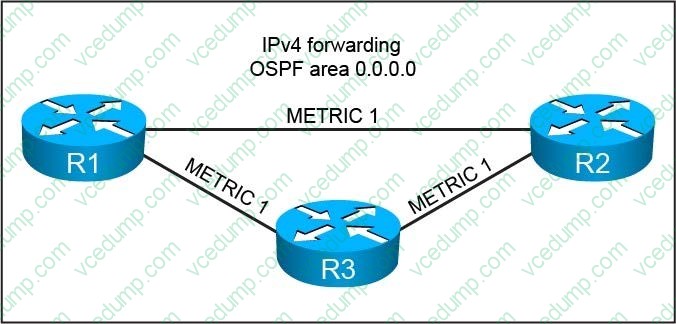

  Refer to the exhibit.



  You are asked to design this OSPF network to converge within 60 ms for unicast packets after a topology change due to a single link failure. Which technology can be enabled while conforming to the design requirements?

  A. Loop-Free Alternates
  B. BFD
  C. IGP neighbor timer tuning
  D. IGP SPF timer tuning
  E. RSVP-TE Fast Reroute
  B. BFD

• Question 559:

  What are two possible drawbacks of ending Loop-Free Alternate to support fast convergence for most destination IGP prefixes? (Choose two)

  A. The IGP topology might need to be adjust
  B. Loop-free alternate's convergence in less than 100 milliseconds is not possible
  C. Loop-free alternate's are supported only for prefixes that are considered external tot the IGP
  D. Loop-free alternates are not supported in global VPN VRF OSPF instances
  E. Additional path computations are needed
  A. The IGP topology might need to be adjust
  E. Additional path computations are needed

• Question 560:

  Which three methods allow storage access across an IP network? (Choose three.)

  A. FCIP
  B. Fiber Channel over GRE
  C. Fiber Channel over L2TPv3
  D. iSCSI
  E. NFS
  A. FCIP
  D. iSCSI
  E. NFS
