Cisco 352-001 Online Practice Questions and Exam Preparation

Cisco 352-001 Online Questions & Answers

• Question 481:

  Which two statements regarding to QoS marking are true? (Choose two)

  A. Shaping is one of the ways that packets can be remarked
  B. Class-based marking occurs after packet classification
  C. 802.1Q/p CoS bits and IP Precedence are both layer 3 marking fields
  D. QoS marking establishes a trust boundary that scheduling tools depend on
  E. MPLS EXP and DSCP are both layer 2 marking fields
  B. Class-based marking occurs after packet classification
  C. 802.1Q/p CoS bits and IP Precedence are both layer 3 marking fields

• Question 482:

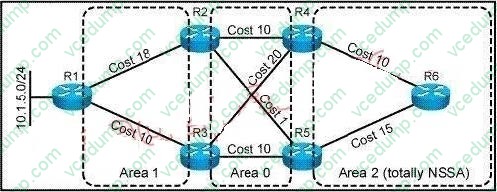

  Refer to the exhibit.



  In this network, R1 is redistributing 10.1.5.0/24 into Area 1. Which LSA containing 10.1.5.0/24 will R6 have in its database?

  A. R6 will have an NSSA external (type 7) LSA in its local database for 10.1.5.0/24.
  B. R6 will have an external (type 5) LSA for 10.1.5.0/24 in its local database.
  C. R6 will have a border router (type 4) LSA in its local database for 10.1.5.0/24.
  D. R6 will not have any LSAs containing 10.1.5.0/24.
  D. R6 will not have any LSAs containing 10.1.5.0/24.

• Question 483:

  Which Option is an example of SaaS?

  A. Google Apps
  B. Amazon AWs
  C. Google App Engine
  D. Microsoft Azure
  A. Google Apps

• Question 484:

  A large ISP is analysing which IGP meets these following requirements

  Network must be resilient against unstable MTU in one side of newly released transmission pieces of equipment

  Network must support MPLS traffic engineering solution for future use

  Which IGP must be selected and why?

  A. ISIS : in case MTU changes your TE tunnels keep the LSP stable
  B. OSPF: adjacency remains up even if MTU changes
  C. OSPF: in case MTU changes your TE tunnels keep the LSP stable
  D. ISIS: adjacency remains up even if MTU changes
  D. ISIS: adjacency remains up even if MTU changes

• Question 485:

  Which statement accurately describes how PIM sparse mode operates?

  A. RPs can become bottlenecks, since multicast traffic must always flow through the RP and down the shared tree to get to the receivers.
  B. RPs switch each traffic flow to the shortest path tree when more than one receiver is present.
  C. If an RP fails and there is no backup RP, new sources that begin sending will not be discovered by the other PIM routers in the network.
  D. If an RP fails and there is no backup RP, multicast traffic will cease flowing in the network.
  C. If an RP fails and there is no backup RP, new sources that begin sending will not be discovered by the other PIM routers in the network.

• Question 486:

  As part of network design, two geographically separated data centers must be interconnected using Ethernet-over-MPLS pseudowire. The link between the sites is stable, the topology has no apparent loops, and the root bridges for the respective VLANs are stable and unchanging. Which aspect must be the part of the design to mitigate the risk of connectivity issues between the data centers?

  A. Enable Spanning Tree on one data center, and Rapid Reconfiguration of Spanning tree on the other
  B. Ensure that the spanning tree diameter for one or more VLANs is not too large.
  C. Enable UDLD on the link between the data centers.
  D. Enable root guard on the link between the data centers.
  B. Ensure that the spanning tree diameter for one or more VLANs is not too large.

• Question 487:

  Which two features can be used to extend VRFs across a campus? (Choose two.)

  A. 802.1q trunks
  B. LDP
  C. MPLS TE
  D. GRE
  E. port channels
  A. 802.1q trunks
  D. GRE

• Question 488:

  You have created a network design that has two point-to-point Metro Ethernet circuits extending a single production VLAN between two data centers. Under normal circumstances, one circuit will carry traffic and spanning tree will block the other. If the company wants you to make use of both circuits to carry production traffic, which two technologies and features will you investigate to integrate into your network design? (Choose two.)

  A. EtherChannel
  B. MST
  C. Multichassis EtherChannel
  D. PVST+
  A. EtherChannel
  C. Multichassis EtherChannel

• Question 489:

  A large enterprise network has two data centers and a WAN edge in a hub-and-spoke network topology. The entire network is in a single OSPF area. Spoke routers are connected to unreliable WAN links. Which two changes must be made to deploy LSA filtering on the spoke routers? (Choose two.)

  A. Configure the hub routers as ASBRs
  B. Keep the spoke routers in normal areas
  C. Configure the hub routers as ABRs
  D. Place spoke routers in totally stubby areas
  E. Place spoke routers in stub areas
  C. Configure the hub routers as ABRs
  D. Place spoke routers in totally stubby areas

• Question 490:

  What is the definition of the TOGAF framework?

  A. a series of tools for process improvement that uses statistical methods to reduce defects in processes and manufacturing
  B. a framework for enterprise IP Address Management (IPAM) based on the IANA trusted IP lease allocation scheme
  C. an ISO framework that establishes a model for network management and contains guidelines for managing objects, the management database, and the application entity
  D. a five-volume framework for service management that covers design, transition, and delivery of service, and from which the ISO 20000 was developed
  E. a framework for enterprise architecture that provides a comprehensive approach for designing, planning, implementing, and governing enterprise information architecture
  E. a framework for enterprise architecture that provides a comprehensive approach for designing, planning, implementing, and governing enterprise information architecture
