Cisco 352-001 Online Practice Questions and Exam Preparation

Cisco 352-001 Online Questions & Answers

• Question 361:

  Which two functions are performed at the distribution layer of the three-layer hierarchical network design model? (Choose two)

  A. Fast transport
  B. QoS classification and marking boundary
  C. Fault isolation
  D. Redundancy and load balancing
  E. Reliability
  C. Fault isolation
  D. Redundancy and load balancing

• Question 362:

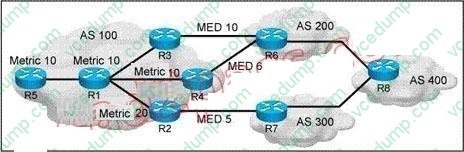

  Refer to the exhibit.



  In this BGP setup, 10.1.1.0/24 is advertised by AS 400 to its peers. Border routers in AS 100 reset the next-hop router to themselves. R2, R3, and R4 are route reflector clients of R1 and R5 is a nonclient iBGP peer of R1. What is the BGP next hop on R5 for the address 10.1.1.0/24?

  A. R1
  B. R2
  C. R3
  D. R4
  E. R6
  D. R4

• Question 363:

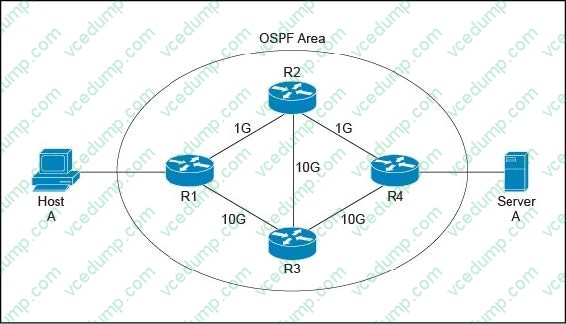

  Refer to the exhibit.



  After this new OSPF design with per-packet load balancing was implemented, Host A reported that large file downloads from Server A became slow and sometimes failed. The operations team discovered that packets are arriving out of order on R1. Which cost- conscious redesign action will fix the issue?

  A. Upgrade all links to 10 Gbps.
  B. Add an IP SLA probe on R1 and R4.
  C. Adjust the OSPF auto-cost reference bandwidth on R4.
  D. Adjust the OSPF auto-cost reference bandwidth on all routers.
  D. Adjust the OSPF auto-cost reference bandwidth on all routers.

• Question 364:

  You are designing a solution to connect a primary data center to a disaster recovery site, The hosted applications will be web and email servers that are provided through a virtualized environment. Which connectivity technology should you consider for this design?

  A. L2TPV3.
  B. VPWS.
  C. Point-To-Point GRE tunnels.
  D. VPLS.
  A. L2TPV3.

• Question 365:

  Which technology, implemented on aggregation-edge nodes at the aggregation layer, provides per-tenant isolation at Layer 3, with separate dedicated per-tenant routing and forwarding tables on the inside interfaces of firewall contexts?

  A. VLAN
  B. VXLAN
  C. VRF-lite
  D. VDC
  C. VRF-lite

• Question 366:

  A company is planning to deploy high-availability cluster support for their servers in a collapsed core data center design. Which issue should be a concern with this design?

  A. NIC teaming
  B. MAC address aging
  C. Layer 3 domain sizing
  D. Layer 2 domain sizing
  D. Layer 2 domain sizing

• Question 367:

  You are designing a Group Encrypted Transport virtual private network solution for an existing branch network. The existing network has the following characteristics:

  50 remote sites (with an additional 30 remote sites expected over the next 3 years)

  Connectivity between all sites is via Multiprotocol Label Switching Layer 3 virtual private network service from a single provider

  Open Shortest Path First is the routing protocol used between provider edge and customer edge routers

  The customer edge routers will become group members performing the encryption between sites

  Which additional routing protocol would you use for the overlay routing between the group members?

  A. Open Shortest Path First (with a different process ID)
  B. Enhanced Interior Gateway Routing Protocol
  C. No additional protocol is necessary.
  D. External Border Gateway Protocol
  E. Routing Information Protocol Version 2
  F. Next Hop Resolution Protocol
  C. No additional protocol is necessary.

• Question 368:

  Service provider XYZ wants to implement IPv6 on their MPLS network using MPLS 6PE or 6VPE techniques. Currently XYZ providers IPv4 multicast services over an MPLS network by using MVPN, and wants to provide parallel IPv6 multicast services. Which two multicast solutions enable the IPv6 multicast services? (Choose 2)

  A. MVPN for IPv6 multicast service
  B. MPLS 6PE, because it provides IPv6 multicast support by default
  C. PIM-DM to enable IPv6 multicast in conjunction with MPLS 6PE/6VPE
  D. an overlay model using Layer 2 MPLS tunnels
  E. MPLS 6VPE, because it provides IPv6 multicast support by default
  A. MVPN for IPv6 multicast service
  D. an overlay model using Layer 2 MPLS tunnels

• Question 369:

  A financial services company runs HSRP at the edge of its network to allow for redundancy for the default gateway for its servers. The CTO of the company is concerned that the failover time for HSRP is too slow and a different mechanism should be used. The network engineer disagrees and believes that HSRP can provide the required fast down detection and failover for the edge of the network. Which option is the fastest down detection and failover solution for this HSRP environment?

  A. Limit the Layer 2 broadcast domain.
  B. Decrease the HSRP timers.
  C. Implement BFD.
  D. Migrate from IEEE 802.1D to 802.1w.
  E. Implement HSRP preemption.
  C. Implement BFD.

• Question 370:

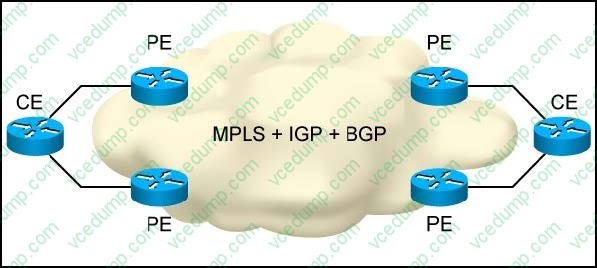

  Refer to the exhibit.



  You are designing an MPLS network with Layer 3 VPNs, where the traffic path must be the same in both directions inside the MPLS network to ensure that symmetric routing occurs. The sites are connected to two PE routers. Which two design considerations will allow you to achieve this symmetric routing? (Choose two.)

  A. When MPLS TE is used, the bidirectional TE tunnel automatically provides symmetric routing.
  B. The MPLE TE tunnels should be set up in both directions so that the same path is used.
  C. There should not be any equal cost paths for IGP inside the MPLS backbone, the IGP routing should use the same path in both directions, and the BGP routing does not matter.
  D. There should not be any equal cost paths for BGP inside the MPLS backbone, the BGP routing should use the same path in both directions, and the IGP routing does not matter.
  E. There should not be any equal cost paths for the IGP and the BGP inside the MPLS backbone, and both IGP and BGP routing should use the same path in both directions.
  B. The MPLE TE tunnels should be set up in both directions so that the same path is used.
  E. There should not be any equal cost paths for the IGP and the BGP inside the MPLS backbone, and both IGP and BGP routing should use the same path in both directions.
