Cisco 350-401 Online Questions & Answers

• Question 611:

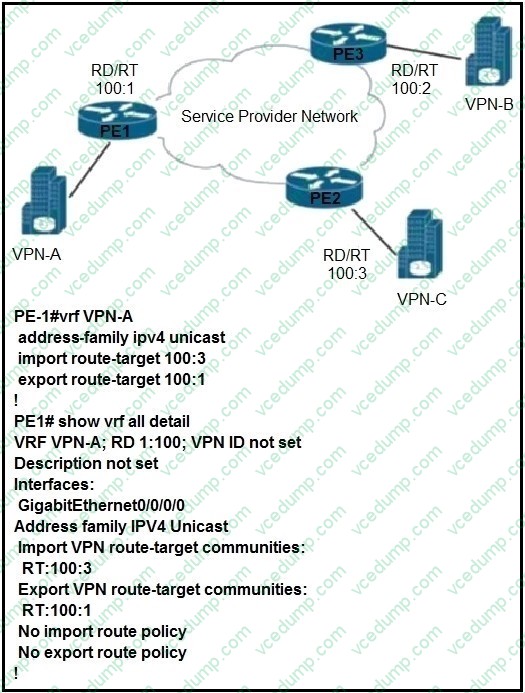

  Refer to the exhibit.



  VPN-A sends point-to-point traffic to VPN-B and receives traffic only from VPN-C VPN-B sends point-to-point traffic to VPN-C and receives traffic only from VPN-A.

  Which configuration is applied?

  A. PE-2 vrf VPN-B address-family ipv4 unicast import route-target 100:1 export route-target 100:2
  B. PE-3 vrf VPN-B address-family ipv4 unicast import route-target 100:1 export route-target 100:2
  C. PE-2 vrf VPN-B address-family ipv4 unicast import route-target 100:1 export route-target 100:2
  D. PE-3 vrf VPN-B address-family ipv4 unicast import route-target 100:2 export route-target 100:2
  B. PE-3 vrf VPN-B address-family ipv4 unicast import route-target 100:1 export route-target 100:2

• Question 612:

  Which characteristic applies to Cisco SD-Access?

  A. It uses dynamic routing the discover and provision access switches.
  B. It uses VXLAN for the control plane
  C. It uses VXLAN for the data plane
  D. It uses dynamic routing to discover and provision border switches
  B. It uses VXLAN for the control plane

• Question 613:

  Which statement about LISP encapsulation in an EIGRP OTP implementation is true?

  A. LISP learns the next hop
  B. OTP uses LISP encapsulation to obtain routes from neighbors
  C. OTP uses LISP encapsulation for dynamic multipoint tunneling
  D. OTP maintains the LISP control plane
  C. OTP uses LISP encapsulation for dynamic multipoint tunneling

  ---

  Explanation

  The EIGRP Over the Top solution can be used to ensure connectivity between disparate EIGRP sites. This feature uses EIGRP on the control plane and Locator ID Separation Protocol (LISP) encapsulation on the data plane to route traffic across the underlying WAN architecture. EIGRP is used to distribute routes between customer edge (CE) devices within the network, and the traffic forwarded across the WAN architecture is LISP encapsulated. EIGRP OTP only uses LISP for the data plane, EIGRP is still used for the control plane. Therefore we cannot say OTP uses LISP encapsulation for dynamic multipoint tunneling as this requires encapsulating both data and control plane traffic -> Answer 'OTP uses LISP

  encapsulation for dynamic multipoint tunneling' is not correct.

  In OTP, EIGRP serves as the replacement for LISP control plane protocols (therefore EIGRP will learn the next hop, not LISP -> Answer 'LISP learns the next hop' is not correct). Instead of doing dynamic EID-to- RLOC mappings in native LISP-mapping services, EIGRP routers running OTP over a service provider cloud create targeted sessions, use the IP addresses provided by the service provider as RLOCs, and exchange routes as EIDs. Let's take an example:

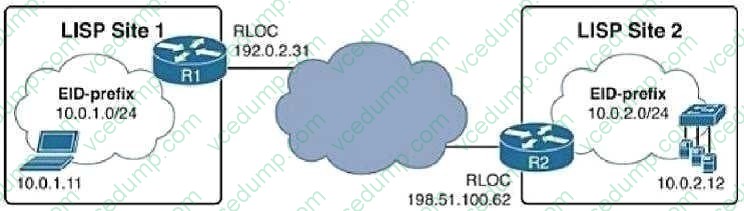

  If R1 and R2 ran OTP to each other, R1 would learn about the network 10.0.2.0/24 from R2 through EIGRP, treat the prefix 10.0.2.0/24 as an EID prefix, and take the advertising next hop 198.51.100.62 as the RLOC for this EID prefix.

  Similarly, R2 would learn from R1 about the network 10.0.1.0/24 through EIGRP, treat the prefix 10.0.1.0/24 as an EID prefix, and take the advertising next hop 192.0.2.31 as the RLOC for this EID prefix. On both routers, this information would be used to populate the LISP mapping tables. Whenever a packet from 10.0.1.0/24 to 10.0.2.0/24 would arrive at R1, it would use its LISP mapping tables just like in ordinary LISP to discover that the packet has to be LISP encapsulated and tunneled toward 198.51.100.62, and vice versa. The LISP data plane is reused in OTP and does not change; however, the native LISP mapping and resolving mechanisms are replaced by EIGRP.

  References:

  CCIE Routing and Switching V5.0 Official Cert Guide, Volume 1, Fifth Edition

• Question 614:

  Refer to the following. What is the JSON syntax that is formed from the data?

  Make is Gocar

  Model is Zoom

  Features are:

  1. Power Windows

  2. Manual Drive

  3. Auto AC

  A. Make":'Gocar, "Model': "Zoom", "Features": ["Power Windows", "Manual Dnve", "Auto AC"]}
  B. `Make ": "Gocar1, "Model": "Zoom", "Features": ["Power Windows", "Manual Drive", "Auto AC"]
  C. {"Make": Gocar, "Model": Zoom, "Features": Power Windows, Manual Drive, Auto AC}
  D. ("Make":[ "Gocar", "Model": "Zoom"], Features": ["Power Windows", "Manual Drive", "Auto AC"]}
  A. Make":'Gocar, "Model': "Zoom", "Features": ["Power Windows", "Manual Dnve", "Auto AC"]}

  ---

  Explanation

  JSON syntax structure: + uses curly braces {} to hold objects and square brackets [] to hold arrays + JSON data is written as key/value pairs + A key/value pair consists of a key (must be a string in double quotation marks ""), followed by a colon :, followed by a value. For example: "name":"John" + Each key must be unique + Values must be of type string, number, object, array, boolean or null + Multiple key/value within an object are separated by commas , JSON can use arrays. Arrays are used to store multiple values in a single variable. For example:

  {

  "name":"John",

  "age":30,

  "cars":[ "Ford", "BMW", "Fiat"]

  }

  In the above example, "cars" is an array which contains three values "Ford", "BMW" and "Fiat".

  Note: Although our correct answer above does not have curly braces to hold objects but it is still the best choice here.



• Question 615:

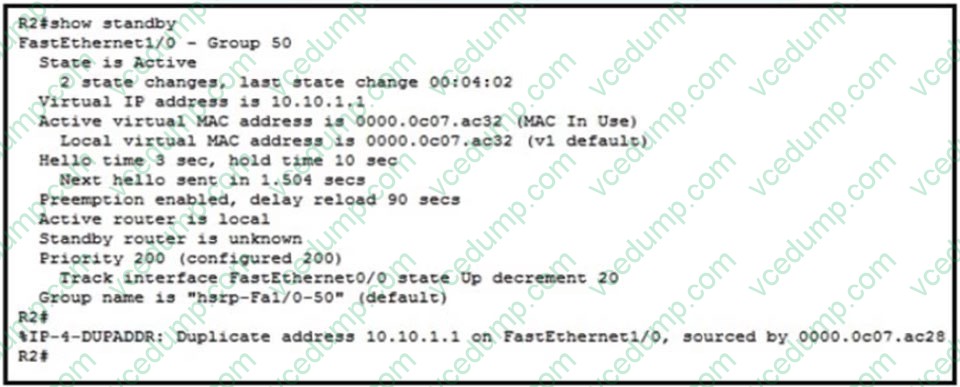

  Refer to the exhibit.



  An engineer configures a new HSRP group. While reviewing the HSRP status, the engineer sees the logging message generated on R2.

  Which is the cause of the message?

  A. The same virtual IP address has been configured for two HSRP groups
  B. The HSRP configuration has caused a spanning-tree loop
  C. The HSRP configuration has caused a routing loop
  D. A PC is on the network using the IP address 10.10.1.1
  A. The same virtual IP address has been configured for two HSRP groups

• Question 616:

  Which entity is a Type 1 hypervisor?

  A. Oracle VM VirtualBox
  B. VMware server
  C. Citrix XenServer
  D. Microsoft Virtual PC
  C. Citrix XenServer

• Question 617:

  What is one being of implementing a data modetag language?

  A. accuracy of the operations performed
  B. uses XML style of data formatting
  C. machine-oriented logic and language-facilitated processing.
  D. conceptual representation to simplify interpretation.
  A. accuracy of the operations performed

• Question 618:

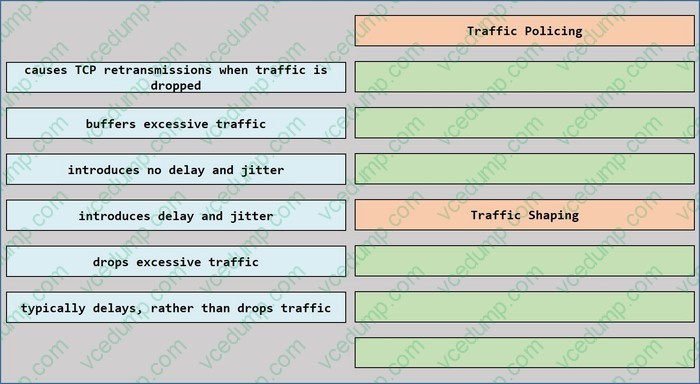

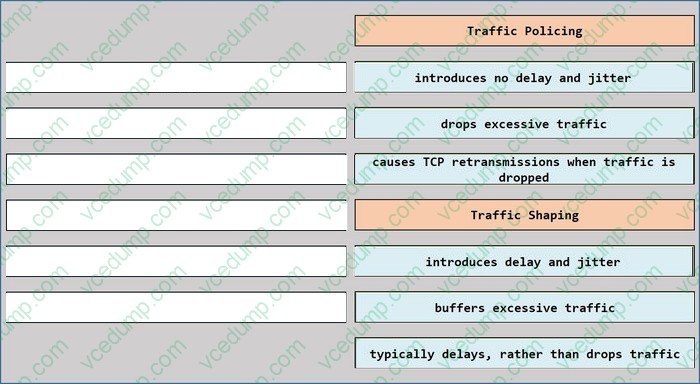

  DRAG DROP

  Drag and drop the descriptions from the left onto the QoS components on the right.

  Select and Place:





• Question 619:

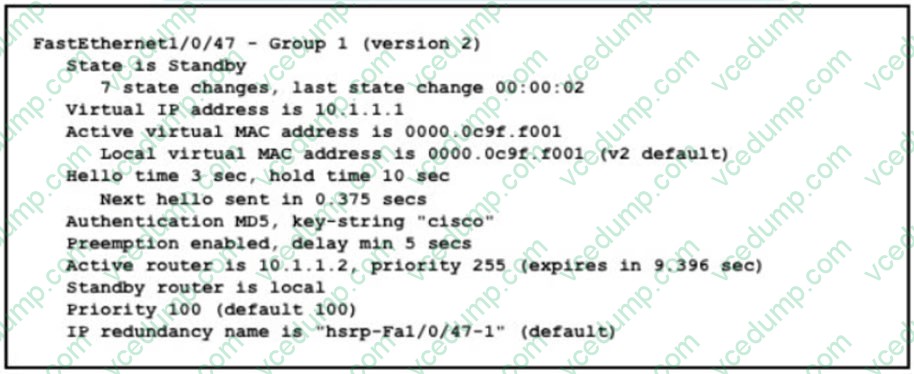

  Refer to the exhibit.



  An engineer configures HSRP and enters the show standby command.

  Which two facts about the network environment are derived from the output? (Choose two.)

  A. The local device has a higher priority selling than the active router
  B. The virtual IP address of the HSRP group is 10.1.1.1.
  C. If the local device fails to receive a hello from the active router for more than 5 seconds, it becomes the active router.
  D. The hello and hold timers are set to custom values.
  E. If a router with a higher IP address and same HSRP priority as the active router becomes available, that router becomes the new active router 5 seconds later.
  B. The virtual IP address of the HSRP group is 10.1.1.1.
  E. If a router with a higher IP address and same HSRP priority as the active router becomes available, that router becomes the new active router 5 seconds later.

  ---

  Explanation

  https://www.cisco.com/c/en/us/support/docs/ip/hot-standby-router-protocol-hsrp/9281-3.html#:~:text=The%20priority%20field,default%20of%20100.

• Question 620:

  In a Cisco SD-Access network architecture, what is the role of the Fabric Edge Node?

  A. It manages endpoint to device relationships
  B. It connects external layer 3 networks to the SDA fabric
  C. It connects wired endpoints to the SDA fabric
  D. It connects wireless endpoints to the SDA fabric
  C. It connects wired endpoints to the SDA fabric
