• Question 321:

  Which statement about Cisco EAP-FAST is true?

  A. It does not require a RADIUS server certificate
  B. It requires a client certificate
  C. It is an IETF standard.
  D. It operates in transparent mode
  A. It does not require a RADIUS server certificate

  ---

  Explanation

  The Cisco switch was configured with PAgP, which is a Cisco proprietary protocol so non-Cisco switch could not communicate.

  If your environment is relatively small or you do not have a RADIUS server in production, you can use an authentication server that is built in to the WLC. This is called Local EAP, and it supports LEAP, EAP-FAST, PEAP, and EAP-TLS.

  https://www.cisco.com/c/en/us/support/docs/wireless/4400-series-wireless-lan-controllers/99791-eapfast-wlc-rad-config.html

• Question 322:

  A network engineer must configure a router to send logging messages to a syslog server based on these requirements:

  1. uses syslog IP address: 10.10.10.1 2. uses a reliable protocol 3. must not use any well-known TCP/UDP ports

  Which configuration must be used?

  A. logging host 10.10.10.1 transport tcp port 1024
  B. logging origin-id 10.10.10.1
  C. logging host 10.10.10.1 transport udp port 1023
  D. logging host 10.10.10.1 transport udp port 1024
  A. logging host 10.10.10.1 transport tcp port 1024

• Question 323:

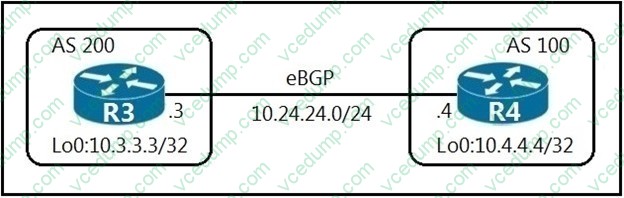

  Refer to the exhibit.



  An engineer must establish eBGP peering between router R3 and router R4. Both routers should use their loopback interfaces as the BGP router ID.

  Which configuration set accomplishes this task?

  A. R3(config)#router bgp 200R3(config-router)#neighbor 10.4.4.4 remote-as 100R3(config-router)# neighbor 10.4.4.4 update-source Loopback0R4(config)#router bgp 100R4(config-router)#neighbor 10.3.3.3 remote-as 200R4(config-router)#network 10.3.3.3 update-source Loopback0
  B. R3(config)#router bgp 200R3(config-router)#neighbor 10.24.24.4 remote-as 100R3(config-router)#neighbor 10.24.24.4 update-source Loopback0R4(config)#router bgp 100R4(config-router)#neighbor 10.24.24.3 remote-as 200R4(config-router)#neighbor 10.24.24.3 update-source Loopback0
  C. R3(config)#router bgp 200R3(config-router)#neighbor 10.4.4.4 remote-as 100R3(config-router)#bgp router-id 10.3.3.3R4(config)#router bgp 100R4(config-router)#neighbor 10.3.3.3 remote-as 200R4(config-router)#bgp router-id 10.4.4.4
  D. R3(config)#router bgp 200R3(config-router)#neighbor 10.24.24.4 remote-as 100R3(config-router)#bgp router-id 10.3.3.3R4(config)#router bgp 100R4(config-router)#neighbor 10.24.24.3 remote-as 200R4(config-router)#bgp router-id 10.4.4.4
  D. R3(config)#router bgp 200R3(config-router)#neighbor 10.24.24.4 remote-as 100R3(config-router)#bgp router-id 10.3.3.3R4(config)#router bgp 100R4(config-router)#neighbor 10.24.24.3 remote-as 200R4(config-router)#bgp router-id 10.4.4.4

• Question 324:

  How is a data modeling language used?

  A. To enable data to be easily structured, grouped validated, and replicated
  B. To represent finite and well-defined network elements that cannot be changed.
  C. To model the flows of unstructured data within the infrastructure.
  D. To provide human readability to scripting languages
  A. To enable data to be easily structured, grouped validated, and replicated

  ---

  Explanation

  Customer needs are fast evolving. Typically, a network center is a heterogenous mix of various devices at multiple layers of the network. Bulk and automatic configurations need to be accomplished. CLI scraping is not flexible and optimal. Re- writing scripts many times, even for small configuration changes is cumbersome. Bulk configuration changes through CLIs are error-prone and may cause system issues. The solution lies in using data models-a programmatic and standards- based way of writing configurations to any network device, replacing the process of manual configuration. Data models are written in a standard, industry-defined language. Although configurations using CLIs are easier (more human-friendly), automating the configuration using data models results in scalability.

  https://www.cisco.com/c/en/us/td/docs/optical/ncs1000/60x/b_Datamodels_cg_ncs1000/b_Datamodels_cg_ncs1000_chapter_00.pdf

• Question 325:

  Which design principle should be followed in a Cisco SD-Access wireless network deployment?

  A. The WLC is connected outside of the fabric
  B. The WLC is part of the fabric underlay
  C. The access point is connected outside of the fabric.
  D. The WLC is part of the fabric overlay.
  A. The WLC is connected outside of the fabric

  ---

  Explanation

  WLC ?WLC is connected outside Fabric (optionally directly to Border) ?WLC needs to reside in global routing table ?to talk to CP!

  ?No need for inter-VRF leaking for AP to join the WLC ?WLC can only belong to one FD. WLC talks to one CP (two for HA)

  Access Points ?AP is directly connected to FE (or to an extended node switch) ?AP is part of Fabric overlay ?AP belongs to the INFRA_VN which is mapped to the global routing table (new in DNAC 1.1) ?AP joins the WLC in Local mode

• Question 326:

  DRAG DROP

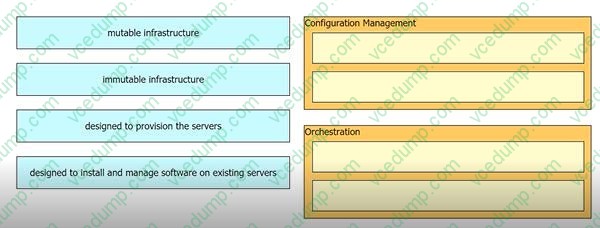

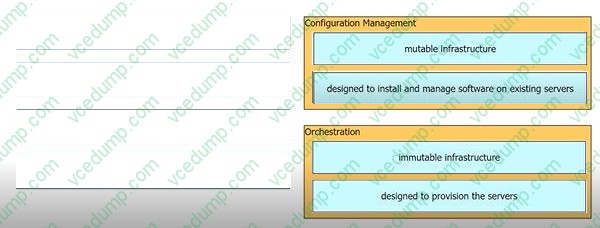

  Drag and drop the characteristics from the left onto the orchestration tool classifications on the right.

  Select and Place:





• Question 327:

  DRAG DROP

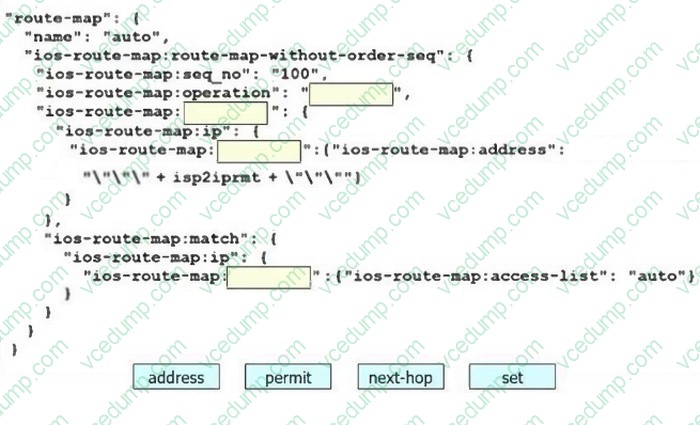

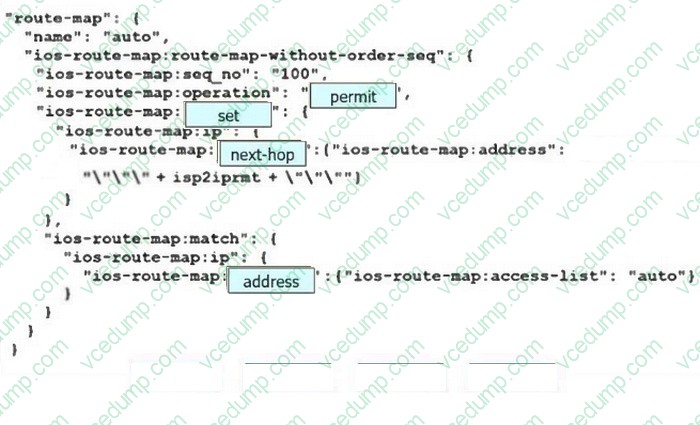

  Drag and drop the code snippets from the bottom onto the blanks in the code to construct a request that configures policy-based routing.

  Select and Place:





• Question 328:

  What is a consideration when designing a Cisco SD-Access underlay network?

  A. End user subnets and endpoints are part of the underlay network.
  B. The underlay switches provide endpoint physical connectivity for users.
  C. Static routing is a requirement,
  D. It must support IPv4 and IPv6 underlay networks.
  B. The underlay switches provide endpoint physical connectivity for users.

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/solutions/CVD/Campus/cisco-sda-design-guide.html#Underlay

• Question 329:

  How does IGMP function with multicast routing and PIM?

  A. IGMP is enabled automatically when multicast routing and PIM are configured on a router
  B. IGMP is incompatible with multicast routing
  C. IGMP is incompatible with PIM
  D. IGMP must be enabled manually when multicast routing and PIM are configured on a router.
  A. IGMP is enabled automatically when multicast routing and PIM are configured on a router

• Question 330:

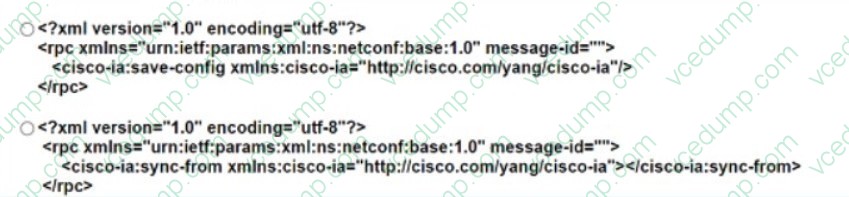

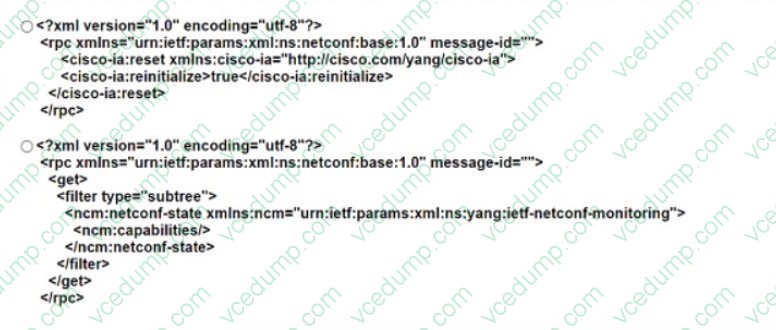

  Refer to the exhibit. An engineer must save the configuration of router R2 using the NETCONF protocol. Which script must be used?





  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C
