Cisco 350-401 Online Questions & Answers

• Question 161:

  In a high-density AP environment, which feature can be used to reduce the RF cell size and not demodulate radio packets above a given threshold?

  A. RX-SOP
  B. FRA
  C. 80211k
  D. RRM
  A. RX-SOP

• Question 162:

  What is the function of a VTEP in VXLAN?

  A. provide the routing underlay and overlay for VXLAN headers
  B. dynamically discover the location of end hosts in a VXLAN fabric
  C. encapsulate and de-encapsulate traffic into and out of the VXLAN fabric
  D. statically point to end host locations of the VXLAN fabric
  C. encapsulate and de-encapsulate traffic into and out of the VXLAN fabric

  ---

  Explanation

  VXLAN Tunnel Endpoint

  The VTEP device uses this IP address to encapsulate Ethernet frames and transmits the encapsulated packets to the transport network through the IP interface.

• Question 163:

  Using the EIRP formula, what parameter is subtracted to determine the EIRP value?

  A. transmitter power
  B. antenna cable loss
  C. antenna gain
  D. signal-to-noise ratio
  B. antenna cable loss

  ---

  Explanation

  Once you know the complete combination of transmitter power level, the length of cable, and the antenna gain, you can figure out the actual power level that will be radiated from the antenna. This is known as the effective isotropic radiated power (EIRP), measured in dBm. EIRP is a very important parameter because it is regulated by governmental agencies in most countries. In those cases, a system cannot radiate signals higher than a maximum allowable EIRP. To find the EIRP of a system, simply add the transmitter power level to the antenna gain and subtract the cable loss.

• Question 164:

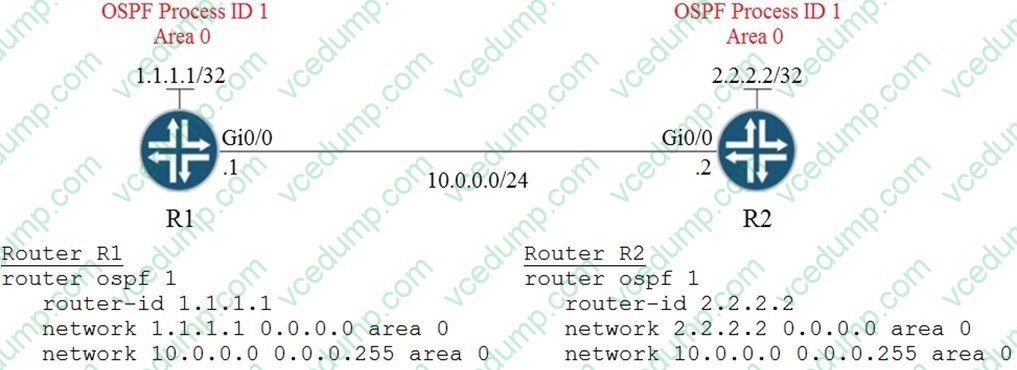

  Refer to the exhibit.



  A network engineer is configuring OSPF between router R1 and router R2. The engineer must ensure that a DR/BDR election does not occur on the Gigabit Ethernet interfaces in area 0.

  Which configuration set accomplishes this goal?

  A. R1(config-if)interface Gi0/0 R1(config-if)ip ospf network point-to-point R2(config-if)interface Gi0/0 R2(config-if)ip ospf network point-to-point
  B. R1(config-if)interface Gi0/0 R1(config-if)ip ospf network broadcast R2(config-if)interface Gi0/0 R2(config-if)ip ospf network broadcast
  C. R1(config-if)interface Gi0/0 R1(config-if)ip ospf database-filter all out R2(config-if)interface Gi0/0 R2(config-if)ip ospf database-filter all out
  D. R1(config-if)interface Gi0/0 R1(config-if)ip ospf priority 1 R2(config-if)interface Gi0/0 R2(config-if)ip ospf priority 1
  A. R1(config-if)interface Gi0/0 R1(config-if)ip ospf network point-to-point R2(config-if)interface Gi0/0 R2(config-if)ip ospf network point-to-point

  ---

  Explanation

  Broadcast and Non-Broadcast networks elect DR/BDR while Point-to-point/multipoint do not elect DR/BDR. Therefore we have to set the two Gi0/0 interfaces to point-to-point or point-to-multipoint network to ensure that a DR/BDR election does not occur.

• Question 165:

  SIMULATION

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary preconfigurations have been applied.

  5. Do no remove any existing configurations from the devices, only those necessary to make the appropriate changes required to fulfill the listed tasks.

  6. Do not change the enable password or hostname for any device.

  7. Save your configurations to NVRAM before moving to the next item.

  8. Click Next at the bottom of the screen to submit this lab and move to the next question

  9. When Next is clicked, the lab closes and cannot be reopened.

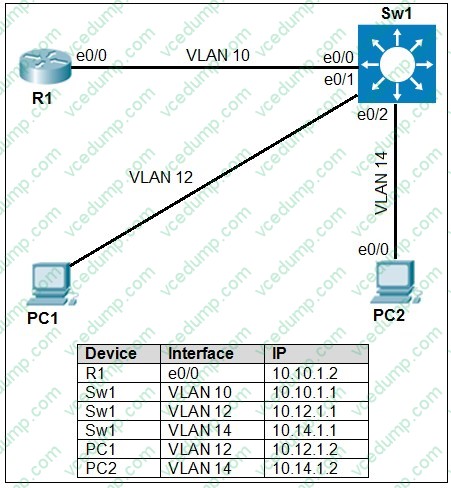

  Topology



  Tasks

  The Operations team started configuring several monitoring activities. Complete the configurations for the tasks below.

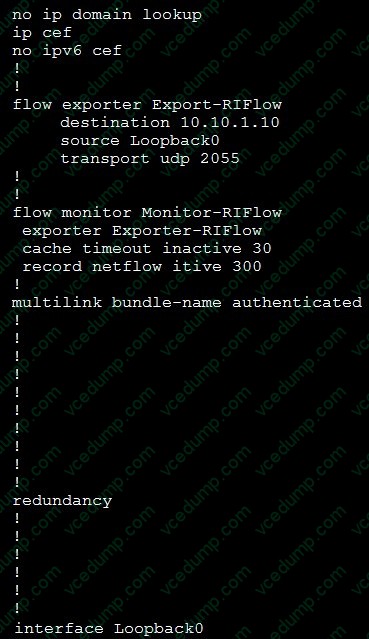

  1. Enable Flexible NetFlow on R1 E0/0 in both directions using the pre-configured flow monitor.

  2. Configure the switch port analyzer on Sw1 and mirror all VLAN 12 traffic to interface E1/3 using session number 12.

  3. Configure a basic IP SLA ICMP echo operation on R1 to ping PC1 every 300 seconds.

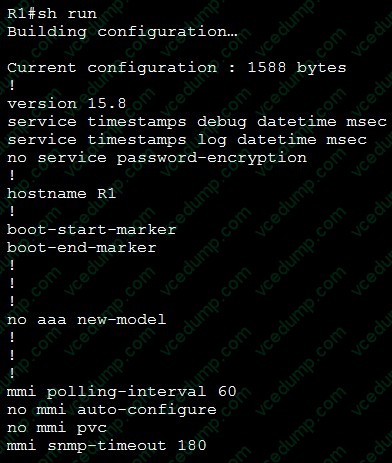

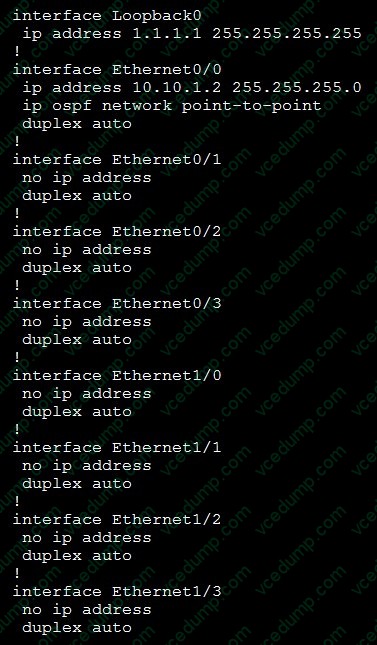

  R1















  A. See the solution below in Explanation.
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. See the solution below in Explanation.

  ---

  Explanation

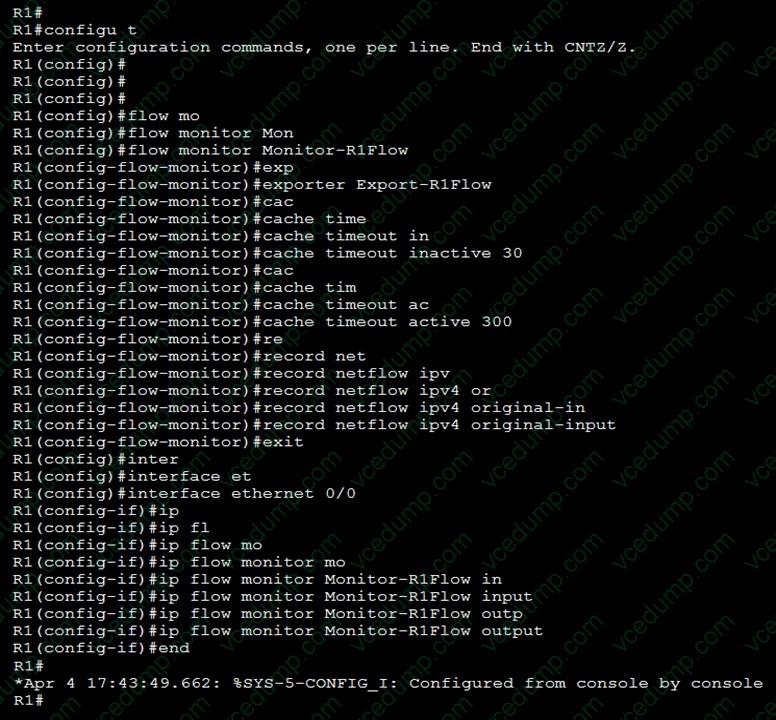

  R1 Configuration (Enable Flexible NetFlow)

  Router#configure terminal

  Enter configuration commands, one per line. End with END or Ctrl-Z.

  R1(config)#interface Ethernet0/0

  R1(config-if)#ip flow ingress

  R1(config-if)#ip flow egress

  R1(config-if)#ip flow monitor Monitor-R1Flow input interface

  R1(config-if)#ip flow monitor Monitor-R1Flow output interface

  R1(config-if)#end

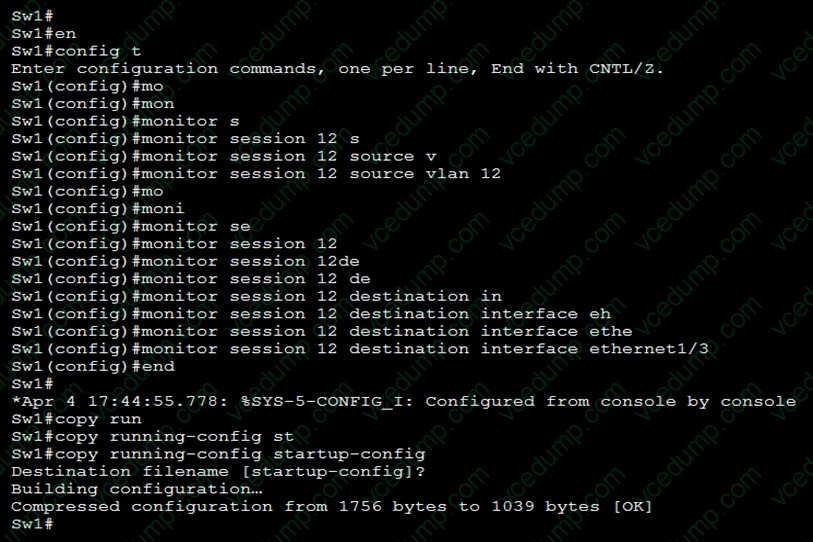

  Sw1 Configuration (Configure SPAN)

  Sw1#configure terminal

  Enter configuration commands, one per line. End with END or Ctrl-Z.

  Sw1(config)#monitor session 12 source interface VLAN12

  Sw1(config)#monitor session 12 destination interface Ethernet1/3

  Sw1(config)#end

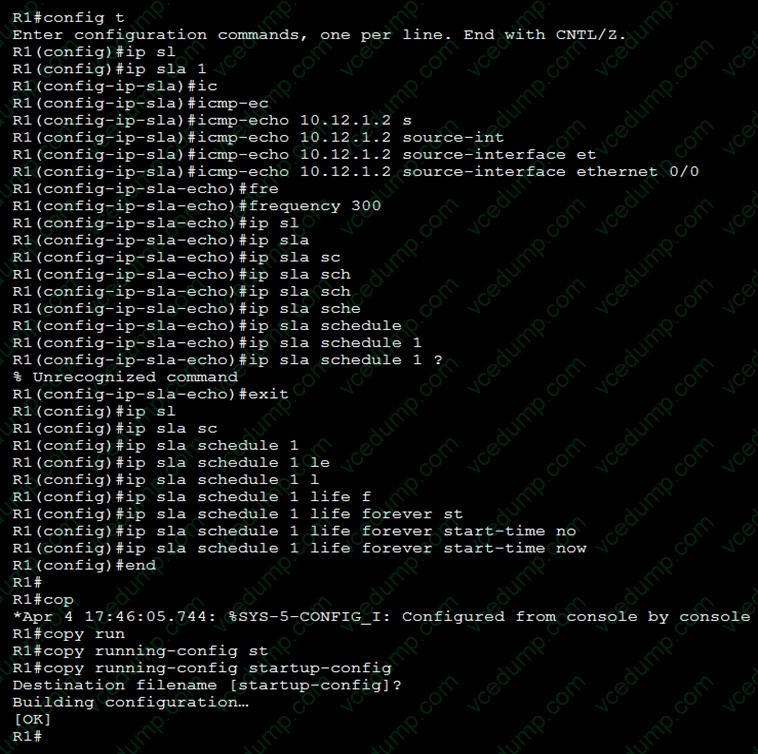

  R1 Configuration (Configure IP SLA ICMP Echo)

  R1#configure terminal

  Enter configuration commands, one per line. End with END or Ctrl-Z.

  R1(config)#ip sla icmp-echo operation 1

  R1(config-ip-sla-icmp)#source-interface Ethernet0/0

  R1(config-ip-sla-icmp)#destination 10.12.1.2

  R1(config-ip-sla-icmp)#frequency 300

  R1(config-ip-sla-icmp)#exit

  R1(config)#end

• Question 166:

  What is a client who is running 802.1x for authentication reffered to as?

  A. supplicant
  B. NAC device
  C. authenticator
  D. policy enforcement point
  A. supplicant

• Question 167:

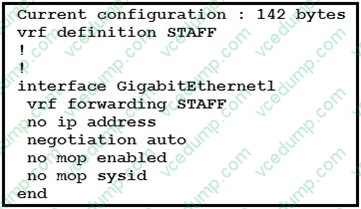

  Refer to the exhibit.





  An engineer must assign an IP address of 192.168.1.1/24 to the GigabitEthemet1 interface.

  Which two commands must be added to the existing configuration to accomplish this task? (Choose two)

  A. Router(config-vrf)#address-family ipv6
  B. Router(config-if)#ip address 192.168.1.1 255.255.255.0
  C. Router(config-vrf)Sip address 192.168.1.1 255.255.255.0
  D. Router(config-if)=address-family ipv4
  E. Router(config-vrf)#address-family ipv4
  B. Router(config-if)#ip address 192.168.1.1 255.255.255.0
  E. Router(config-vrf)#address-family ipv4

  ---

  Explanation

  Router#show run vrf STAFF

  Building configuration...

  Current configuration : 237 bytes

  vrf definition STAFF

  !

  address-family ipv4

  exit-address-family

  !

  !

  interface GigabitEthernet0/1

  vrf forwarding STAFF

  ip address 192.168.1.1 255.255.255.0

  standby version 2

  shutdown

  duplex auto

  speed auto

  media-type rj45

  !

  end

• Question 168:

  A company recently rearranged some users' workspaces and moved several users to different desks. The network administrator receives a report that all of the users who were moved are having connectivity issues.

  Which of the following is the most likely reason?

  A. Ports are error disabled.
  B. Ports are administratively down.
  C. Ports are having an MDIX issue.
  D. Ports are trunk ports.
  A. Ports are error disabled.

• Question 169:

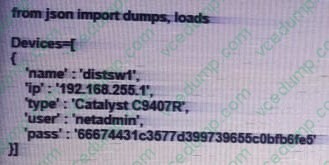

  An engineer must export the contents of the devices object in JSON format.

  Which statement must be used?



  A. json.repr(Devices)
  B. json.dumps(Devices)
  C. json.prints(Devices)
  D. json.loads(Devices)
  B. json.dumps(Devices)

• Question 170:

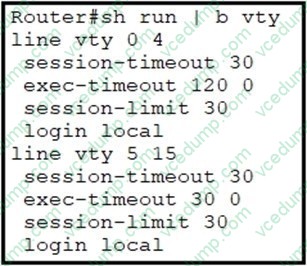

  Refer to the exhibit.



  Security policy requires all idle-exec sessions to be terminated in 600 seconds.

  Which configuration achieves this goal?

  A. line vty 0 15 absolute-timeout 600
  B. line vty 0 15 exec-timeout
  C. line vty 0 15 exec-timeout 10 0
  D. line vty 0 4 exec-timeout 600
  C. line vty 0 15 exec-timeout 10 0

  ---

  Explanation

  The "exec-timeout" command is used to configure the inactive session timeout on the console port or the virtual terminal. The syntax of this command is:

  exec-timeout minutes [seconds]

  Therefore we need to use the "exec-timeout 10 0" command to set the user inactivity timer to 600 seconds (10 minutes).
