Cisco 350-401 Online Practice Questions and Exam Preparation

Cisco 350-401 Online Questions & Answers

• Question 121:

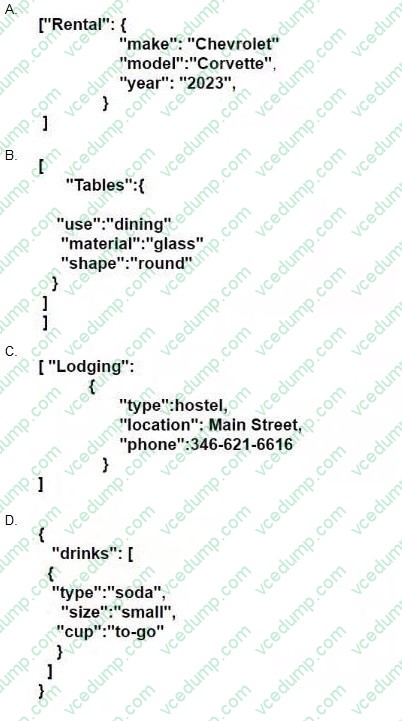

  Which JSON script is properly formatted?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

• Question 122:

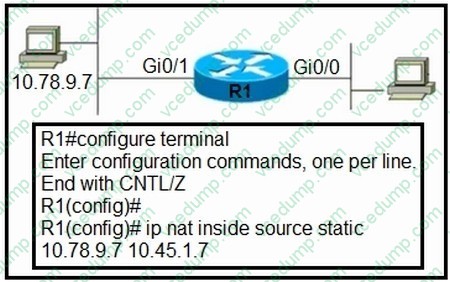

  Refer to the exhibit.



  A network architect has partially configured static NAT.

  Which commands should be asked to complete the configuration?

  A. R1(config)#interface GigabitEthernet0/0 R1(config)#ip pat outside R1(config)#interface GigabitEthernet0/1 R1(config)#ip pat inside
  B. R1(config)#interface GigabitEthernet0/0 R1(config)#ip nat outside R1(config)#interface GigabitEthernet0/1 R1(config)#ip nat inside
  C. R1(config)#interface GigabitEthernet0/0 R1(config)#ip nat inside R1(config)#interface GigabitEthernet0/1 R1(config)#ip nat outside
  D. R1(config)#interface GigabitEthernet0/0 R1(config)#ip pat inside R1(config)#interface GigabitEthernet0/1 R1(config)#ip pat outside
  B. R1(config)#interface GigabitEthernet0/0 R1(config)#ip nat outside R1(config)#interface GigabitEthernet0/1 R1(config)#ip nat inside

• Question 123:

  What is the purpose of an integration API in Cisco DNA Center?

  A. Obtain information about clients, sites, and topology from Cisco DNA Center.
  B. Enable external systems to take actions in response to an event.
  C. Allow the platform into approval chains in ITSM.
  D. Enable discovery and control of the network by using HTTPS verbs.
  C. Allow the platform into approval chains in ITSM.

• Question 124:

  SIMULATION

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary preconfigurations have been applied.

  5. Do not change the enable password or hostname for any device.

  6. Save your configurations to NVRAM before moving to the next item.

  7. Click Next at the bottom of the screen to submit this lab and move to the next question.

  8. When Next is clicked, the lab closes and cannot be reopened.

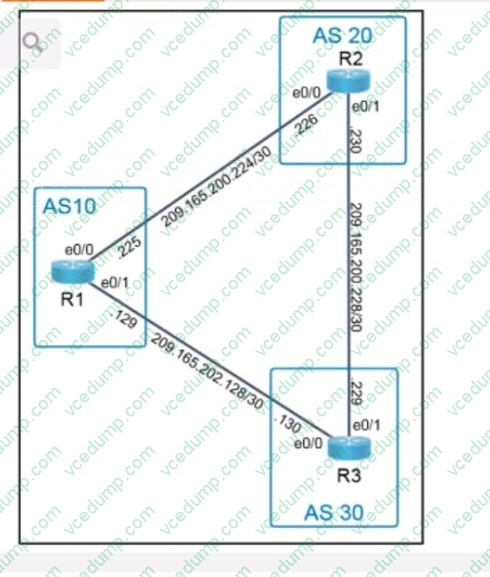

  Topology

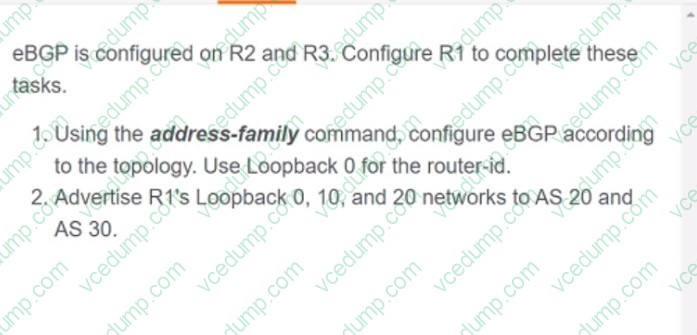

  Tasks



  A. See the solution below in Explanation.
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. See the solution below in Explanation.

  ---

  Explanation

  Solution:

  router bgp 10

  bgp router-id 10.1.1.111 no bgp defa ipv4-unicast

  neighbor 209.165.200.226 remote-as 20 neighbor 209.165.202.130 remote-as 30 address-family ipv4

  neighbor 209.165.200.226 activate

  neighbor 209.165.202.130 activate network 10.1.1.10 mask 255.255.255.255 network 209.165.201.10 mask 255.255.255.255 network 209.165.201.20 mask 255.255.255.255

• Question 125:

  When using BFD in a network design, which consideration must be made?

  A. BFD is used with first hop routing protocols to provide subsecond convergence.
  B. BFD is more CPU-intensive than using reduced hold timers with routing protocols.
  C. BFD is used with dynamic routing protocols to provide subsecond convergence.
  D. BFD is used with NSF and graceful to provide subsecond convergence.
  C. BFD is used with dynamic routing protocols to provide subsecond convergence.

  ---

  Explanation

  https://www.cisco.com/en/US/docs/ios/12_4t/ip_route/configuration/guide/t_bfd.html

• Question 126:

  Which action occurs during a Layer 3 roam?

  A. The client receives a new IP adcress after authentication occurs.
  B. The client is marked as `'foreign" on the original controller.
  C. The client database entry is moved from the old controller to the new controller.
  D. Client traffic is tunneled back to the original control after a Layer 3 roam occurs.
  C. The client database entry is moved from the old controller to the new controller.

• Question 127:

  Which feature does the Cisco DNA Center User-Defined Network workflow provide?

  A. Automatic segmentation of IoT devices
  B. Replacement of malfunctioning devices
  C. Automatic provisioning of AP devices
  D. Interface for AP configuration
  A. Automatic segmentation of IoT devices

  ---

  Explanation

  The correct answer is Option A. Automatic segmentation of IoT devices.

  Cisco DNA Center User-Defined Network provides a workflow for segmenting user and IoT devices into isolated network groups. This is useful in environments where many personal or IoT devices need secure access without being placed into the same shared network segment.

  Option B is incorrect because the workflow does not replace malfunctioning devices.

  Option C is incorrect because AP provisioning is a separate wireless deployment function.

  Option D is incorrect because the feature is not primarily an AP configuration interface.

• Question 128:

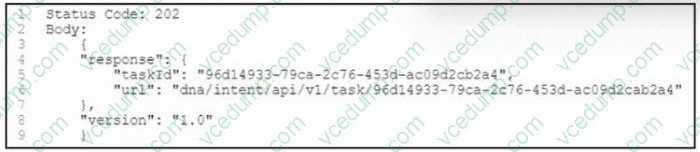

  Refer to the exhibit.

  Which HTTP request produced the REST API response that was returned by the Cisco Catalyst Center (formerly DNA Center) platform?

  A. POST /auth/token
  B. GET /network-device
  C. GET /template-programmer/template/version/42a3df73-3ef4-49e2-b4f0-6927bbd4bf52
  D. POST /discovery
  B. GET /network-device

• Question 129:

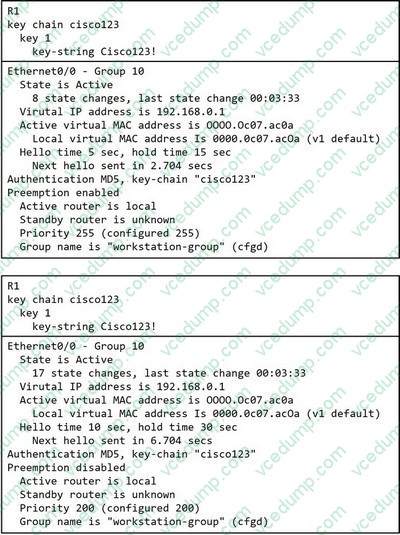

  Refer to the Exhibit.



  An engineer is installing a new pair of routers in a redundant configuration. When checking on the standby status of each router the engineer notices that the routers are not functioning as expected.

  Which action will resolve the configuration error?

  A. configure matching hold and delay timers
  B. configure matching key-strings
  C. configure matching priority values
  D. configure unique virtual IP addresses
  D. configure unique virtual IP addresses

  ---

  Explanation

  The most situable for this question is D (configure unique virtual address) as is one of requirements for a group to work, as seeing in the image. The others are wrong for the following reason. (so Wrong based in the question) A) Not mandatory the timers must match to work on HSRP. on HSRP negotiation the active router will override the standby timers.

  https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-9000/nb-06-cat-9k-stack-wp-cte-en.pdf

  B. On the image key string match so is not this reason HSRP cant be seen each other

  C. Wrong, priority is for selecing the active router, the best practice is should be different thus (WRONG)

  D. Different virtual Gateway configured on the same group number indeed will make HSRP routers negotiation fail for that group thus (CORRECT)

• Question 130:

  What is one difference between EIGRP and OSPF?

  A. OSPF is a Cisco proprietary protocol, and EIGRP is an IETF open standard protocol.
  B. OSPF uses the DUAL distance vector algorithm, and EIGRP uses the Dijkstra link-state algorithm
  C. EIGRP uses the variance command lot unequal cost load balancing, and OSPF supports unequal cost balancing by default.
  D. EIGRP uses the DUAL distance vector algorithm, and OSPF uses the Dijkstra link-state algorithm
  D. EIGRP uses the DUAL distance vector algorithm, and OSPF uses the Dijkstra link-state algorithm

  ---

  Explanation

  EIGRP is based on DUAL (Diffusing Update Algorithm) while OSPF uses Dijkstra's Shortest Path Algorithm with the major difference in how they calculate the shortest routing path. OSPF has capability to calculate the best shortest path to each reachable subnet/network using an algorithm called SFP (Shortest Path First) also known as Dijkstra algorithm. "Neighbor Table" that contain all discovered OSPF neighbour with whom routing information will be interchanged.
