Cisco 350-401 Online Questions & Answers

• Question 1241:

  SIMULATION

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary preconfigurations have been applied.

  5. Do no remove any existing configurations from the devices, only those necessary to make the appropriate changes required to fulfill the listed tasks.

  6. Do not change the enable password or hostname for any device.

  7. Save your configurations to NVRAM before moving to the next item.

  8. Click Next at the bottom of the screen to submit this lab and move to the next question 9. When Next is clicked, the lab closes and cannot be reopened.

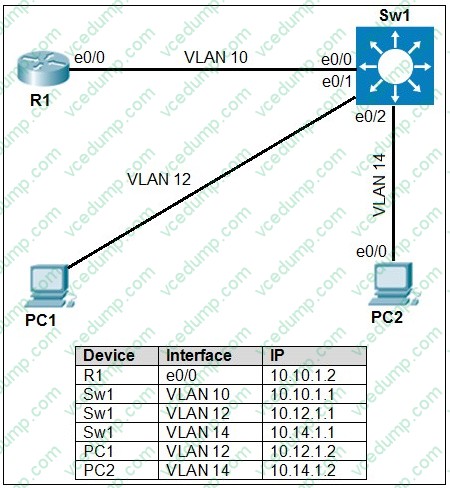

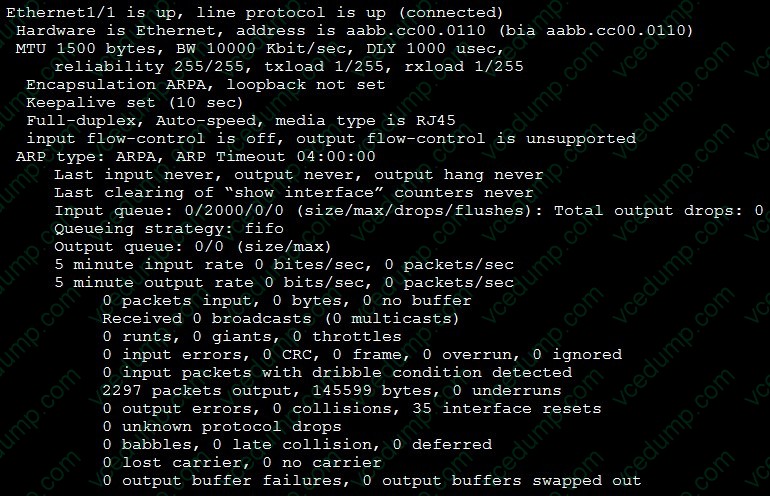

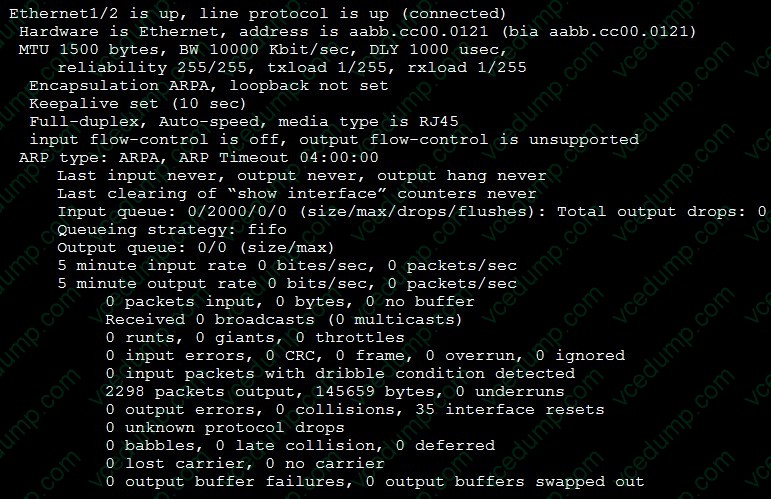

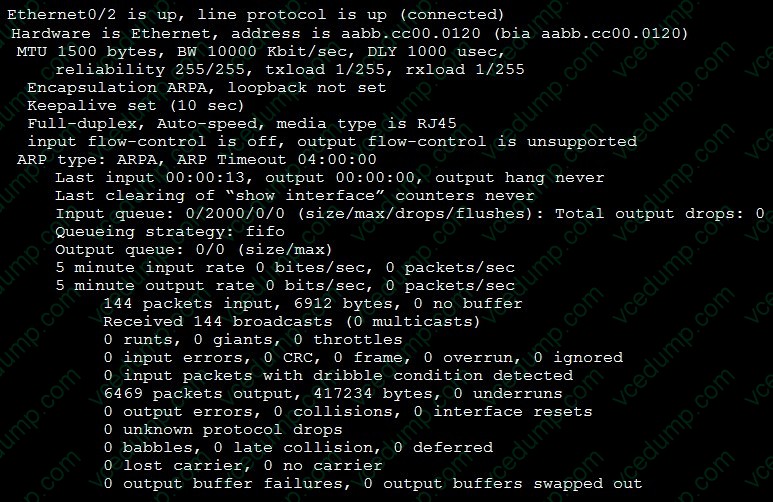

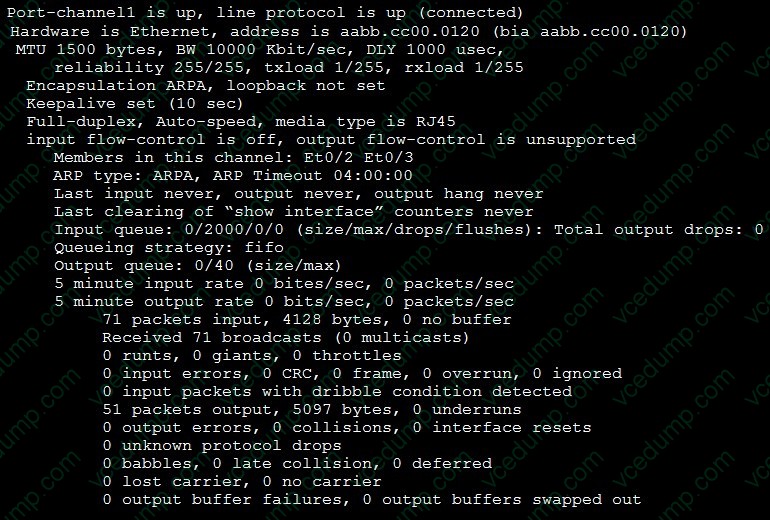

  Topology

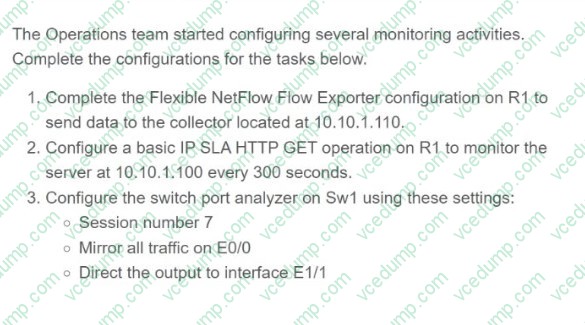

  Tasks



  A. See the solution below in Explanation.
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. See the solution below in Explanation.

  ---

  Explanation

  Solution:

  R1

  Config t

  Flow exporter Export-NetFlowENCOR

  destination 10.10.1.110

  transport udp 2055

  exit

  flow moni Monitor-NetFlowENCOR

  exit

  ip sla 1

  http get http://10.10.1.100

  frequ 300

  exit

  ip sla schedule 1 life forever start-time now

  SW1

  Config t

  Monitor session 7 source interface e0/0

  Monitor session 7 destination interface e1/1

  End

• Question 1242:

  SIMULATION

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary preconfigurations have been applied.

  5. Do not change the enable password or hostname for any device.

  6. Save your configurations to NVRAM before moving to the next item.

  7. Click Next at the bottom of the screen to submit this lab and move to the next question.

  8. When Next is clicked, the lab closes and cannot be reopened.

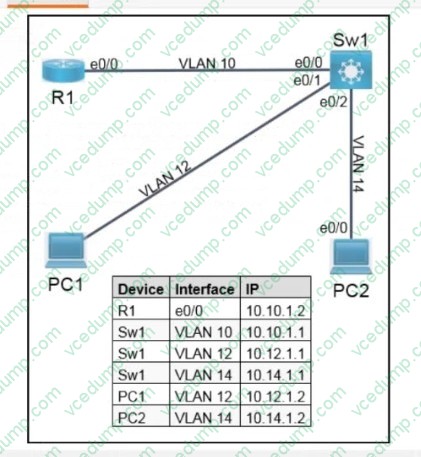

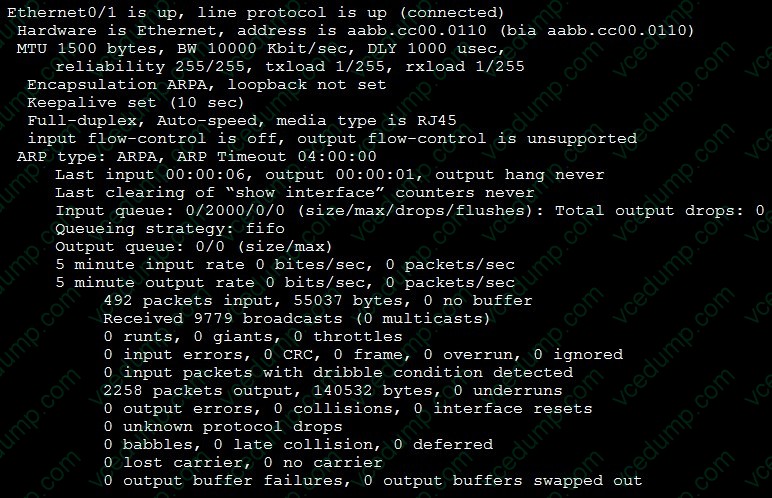

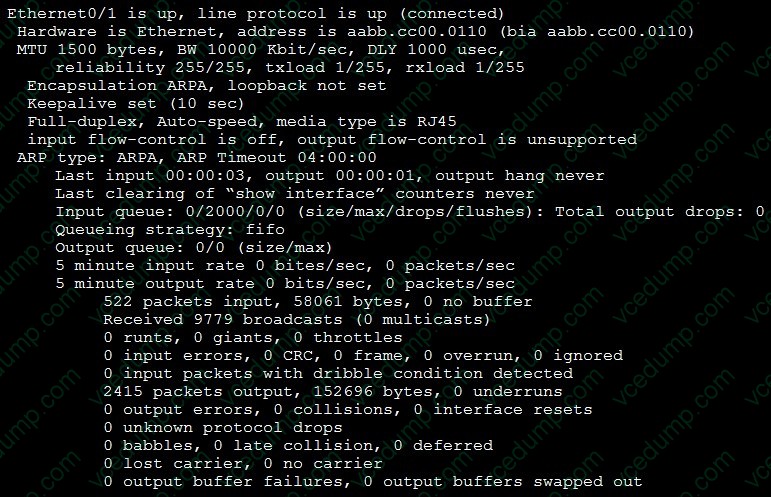

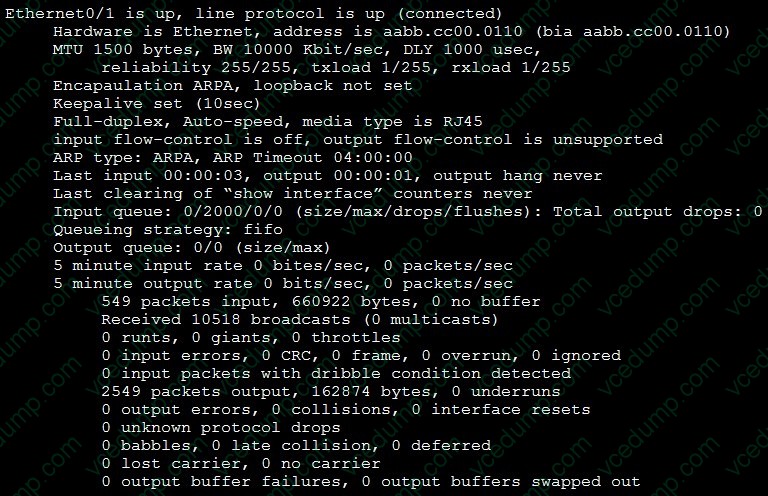

  Topology



  The Operations team started configuring several monitoring activities. Complete the configurations for the tasks below.

  1. Complete the Flexible NetFlow Flow Exporter configuration on R1 to send data to the collector using UDP port 2055.

  2. Configure the Switch Port Analyzer (SPAN) on SW1 and mirror all communication to and from PC1 to interface E1/1 using session number 11.

  3. Schedule the pre-configured IP SLA operation on R1 to start running immediately and to run indefinitely.

  A. See the solution below in Explanation.
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. See the solution below in Explanation.

  ---

  Explanation

  Task 1:

  Configure Flexible NetFlow Flow Exporter on R1

  Enter global configuration mode on R1:

  R1# configure terminal

  Define the flow exporter to send data to the collector at UDP port 2055:

  R1(config)# flow exporter EXPORTER-1

  R1(config-flow-exporter)# destination <Collector_IP> # Replace <Collector_IP> with the actual IP of the collector.

  R1(config-flow-exporter)# transport udp 2055

  R1(config-flow-exporter)# exit

  Define the flow monitor and attach the exporter:

  R1(config)# flow monitor MONITOR-1

  R1(config-flow-monitor)# exporter EXPORTER-1

  R1(config-flow-monitor)# record netflow-original

  R1(config-flow-monitor)# exit

  Apply the flow monitor to the interface:

  R1(config)# interface e0/0

  R1(config-if)# ip flow monitor MONITOR-1 input

  R1(config-if)# exit

  Task 2:

  Configure SPAN (Switch Port Analyzer) on SW1 to Monitor PC1 Traffic

  Enter global configuration mode on SW1:

  SW1# configure terminal

  Create SPAN session 11 to mirror traffic from PC1 to interface E1/1:

  SW1(config)# monitor session 11 source interface e0/0

  SW1(config)# monitor session 11 destination interface e1/1

  Task 3:

  Schedule IP SLA Operation on R1

  Configure the IP SLA operation on R1:

  R1(config)# ip sla 1

  R1(config-ip-sla)# icmp-echo <Target_IP> # Replace <Target_IP> with the IP address of the destination (e.g., PC2’s IP).

  R1(config-ip-sla)# frequency 60 # Set frequency if required.

  R1(config-ip-sla)# exit

  Schedule the IP SLA operation to start immediately and run indefinitely:

  R1(config)# ip sla schedule 1 start-time now life forever

  To verify the IP SLA configuration:

  R1# show ip sla configuration

• Question 1243:

  Which control plane protocol is used between Cisco SD-WAN routers and vSmart controllers?

  A. TCP
  B. OMP
  C. UDP
  D. BGP
  B. OMP

  ---

  Explanation

  Cisco SD-WAN uses Overlay Management Protocol (OMP) which manages the overlay network. OMP runs between the vSmart controllers and WAN Edge routers (and among vSmarts themselves) where control plane information, such as the routing, policy, and management information, is exchanged over a secure connection.

• Question 1244:

  What is a characteristic of YANG?

  A. It is a Cisco proprietary language that models NETCONF data
  B. It allows model developers to create custom data types
  C. It structures data in an object-oriented fashion to promote model reuse
  D. It provides loops and conditionals to control now within models
  C. It structures data in an object-oriented fashion to promote model reuse

• Question 1245:

  You have configured router R1 with multiple VRF's in order to support multiple customer VPN networks. If you wanted to see the best path for the 10.2.1.0.24 route in VRF Green, what command would you use?

  A. show ip route vrf Green 10.2.1.0
  B. show ip route 10.2.1.0 vrf Green
  C. show route all 10.2.1.0
  D. show ip route 10.2.1.0 Green
  A. show ip route vrf Green 10.2.1.0

  ---

  Explanation

  #show ip route vrf mgmt 10.100.10.1 % IP routing table vrf mgmt does not exist

• Question 1246:

  Which type of roaming event occurs when a client roams across multiple mobility groups?

  A. Layer1
  B. Layer7
  C. Layer3
  D. Layer2
  D. Layer2

• Question 1247:

  Which description of an SD-Access wireless network infrastructure deployment is true?

  A. The access point is part of the fabric underlay.
  B. The WLC is part of the fabric underaly.
  C. The access point is part the fabirc overlay.
  D. The wireless client is part of the fabirc overlay.
  C. The access point is part the fabirc overlay.

  ---

  Explanation

  Access Points + AP is directly connected to FE (or to an extended node switch) + AP is part of Fabric overlay

  https://www.ciscolive.com/c/dam/r/ciscolive/us/docs/2018/pdf/BRKEWN-2020.pdf

• Question 1248:

  When deploying a Cisco Unified Wireless solution what is a design justification for using a distributed WLC deployment model?

  A. It reduces the number of WLCs that network administrators must support by locating them in a common location
  B. It more evenly distributes MAC ARP and ND processing over multiple switches which helps with scalability
  C. The number of wireless clients is low and the size of the physical campus is small
  D. There are no latency concerns about LWAPP and CAPWAP tunnels traversing the campus core network
  D. There are no latency concerns about LWAPP and CAPWAP tunnels traversing the campus core network

• Question 1249:

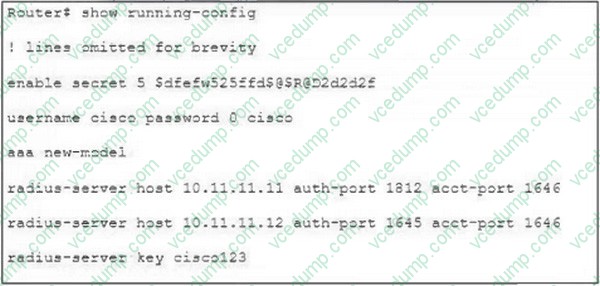

  Refer to the exhibit.



  A network engineer must permit administrators to automatically authenticate if there is no response from either of the AAA servers. Which configuration achieves these results?

  A. aaa authentication enable default group radius local
  B. aaa authentication login default group radius
  C. aaa authentication login default group tacacs+ line
  D. aaa authentication login default group radius none
  D. aaa authentication login default group radius none

• Question 1250:

  DRAG DROP

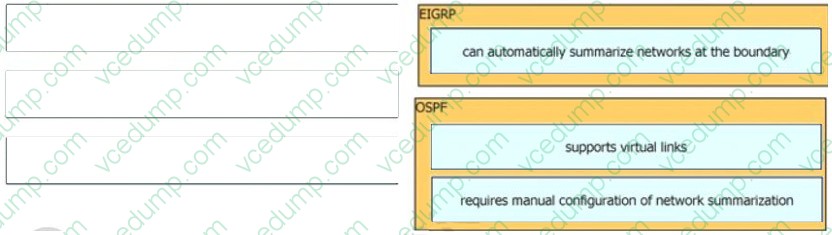

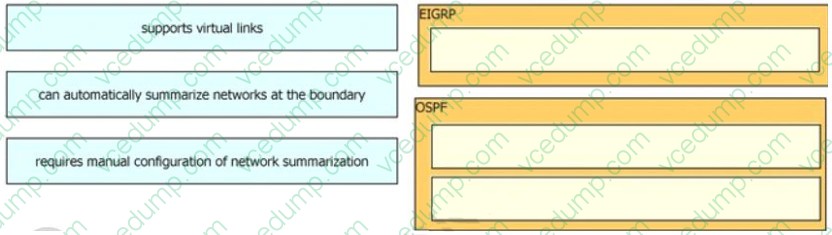

  Drag and drop the characteristics from the left onto the routing protocols they describe on the right.

  Select and Place:
