Cisco 350-029 Online Practice Questions and Exam Preparation

Cisco 350-029 Online Questions & Answers

• Question 431:

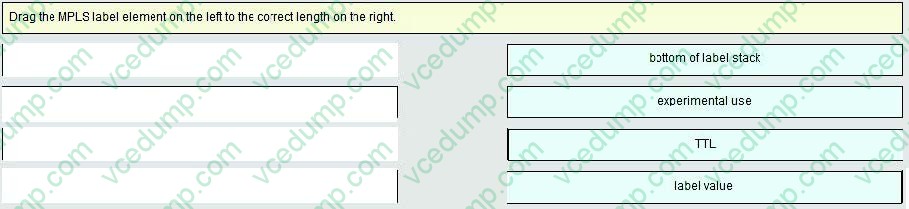

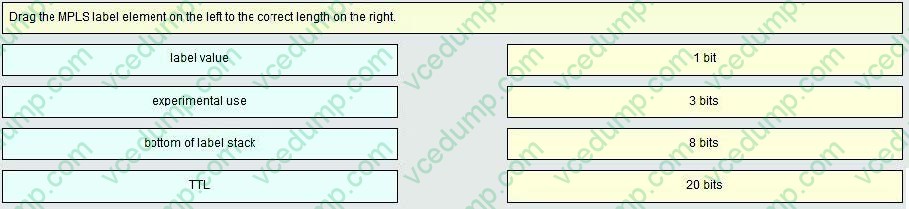

  Drag the MPLS lable element on the left to the correct length on the right.

  Select and Place:





• Question 432:

  How many content definitions does CSG allow?

  A. 40
  B. 400
  C. 4000
  D. 40,000
  C. 4000

  ---

  CISCO CSG CONFIGURATION LIMITS 256 total virtual LANs (client and server) 4000 content definitions 1024 services 16,000 access control list (ACL) items Up to six Cisco CSGs and/or CSMs can be installed in a Cisco Catalyst 6500 Series or Cisco 7600 Series chassis

• Question 433:

  A network engineer is using IS-IS IGP protocol to design a network.

  Which three design elements should be used to divide the network into a hierarchy of areas? (Choose three.)

  A. Core routers will be only level-2.
  B. Routers on the edge of the network will be only level-1.
  C. Router between core and edge routers will be level-1-2.
  D. Core routers will be only level-1.
  E. Routers on the edge of the network will be only level-2.
  F. Router between core and edge routers will be only level-2.
  G. Router between core and edge routers will be only level-1.
  A. Core routers will be only level-2.
  B. Routers on the edge of the network will be only level-1.
  C. Router between core and edge routers will be level-1-2.

• Question 434:

  In inter-AS multicast, which two optional nontransitive path attributes were introduced in BGP to carry unicast and multicast routing information for RPF check at the AS borders? (Choose two.)

  A. MP_UNREACH_NLRI
  B. MP_REACH_NLRI
  C. FWDR_PREF Details
  D. MP_PERF_NLRI
  E. ORIGINATOR_ID
  A. MP_UNREACH_NLRI
  B. MP_REACH_NLRI

• Question 435:

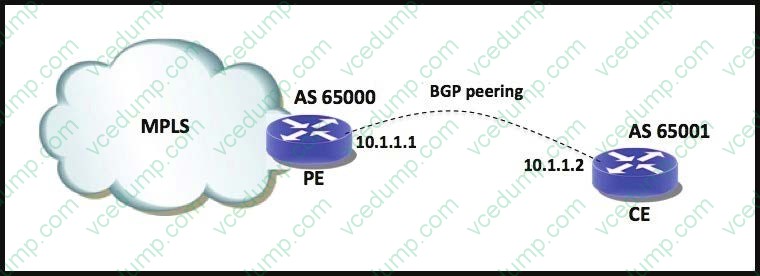

  Refer to the exhibit.



  An ISP engineer has been asked to identity a method to protect the PE and to control the number of BGP prefixes learned from his customers. The BGP session should be dropped if the PE router receives more than 1000 BGP prefixes. A syslog message should be generated when the number of BGP prefixes learned from CE exceeds 850.

  Which Cisco IOS command should the engineer apply on PE routers?

  A. neighbor 10.1.1.2 maximum-prefix 1000 85
  B. neighbor 10.1.1.2 maximum-prefix 1000 850
  C. neighbor 10.1.1.2 maximum-prefix 1000 85 warning-only
  D. neighbor 10.1.1.2 maximum-prefix 1000 850 warning-only
  A. neighbor 10.1.1.2 maximum-prefix 1000 85

• Question 436:

  What are three advantages of PPPoA implementation? (Choose three.)

  A. NAP and NSP provide secure access to corporate gateways without managing end-to-end PVCs. NAP and NSP use Layer 3 routing, Layer 2 Forwarding, or Layer 2 Tunneling Protocol tunnels. Hence, they can scale their business models for selling wholesale service.
  B. Only a single session per CPE on one virtual channel (VC). The username and password are configured on the CPE, so all users behind the CPE for that particular VC can access only one set of services. Users cannot select different sets of services, although using multiple VCs and establishing different PPP sessions on different VCs is possible.
  C. The NSP can oversubscribe by deploying idle and session timeouts using an industry standard RADIUS server for each subscriber.
  D. If a single IP address is provided to the CPE, and NAT or PAT is implemented, certain applications such as IPTV, which embed IP information in the payload, will not work. Additionally, if an IP subnet feature is used, an IP address also has to be reserved for the CPE.
  E. PPPoA can use the features on the SSG.
  F. Cisco Service Selection Gateway is not compatible with PPPoA.
  A. NAP and NSP provide secure access to corporate gateways without managing end-to-end PVCs. NAP and NSP use Layer 3 routing, Layer 2 Forwarding, or Layer 2 Tunneling Protocol tunnels. Hence, they can scale their business models for selling wholesale service.
  C. The NSP can oversubscribe by deploying idle and session timeouts using an industry standard RADIUS server for each subscriber.
  E. PPPoA can use the features on the SSG.

• Question 437:

  Refer to the exhibit.

  Based on the topology, the BGP configuration in R1, and the outputs from R1 and R2; identify why was subnet 33.33.33.33/32 not received on the R2 BGP table?

  A. R2 is not a route reflector client for R1.
  B. R1 is configured to suppress all inactive (RIB failure) routes.
  C. The 33.33.33.33/32 subnet must be learned through BGP.
  D. The 11.11.11.11/32 subnet exists in the routing table.
  D. The 11.11.11.11/32 subnet exists in the routing table.

• Question 438:

  ATM carries IP and PPP information with ATM cells. What ATM adaptation Layer is used when an ATM cell carries IP packets and PPP frames?

  A. AAU2
  B. AAL3
  C. AAL4
  D. AAL5
  D. AAL5

• Question 439:

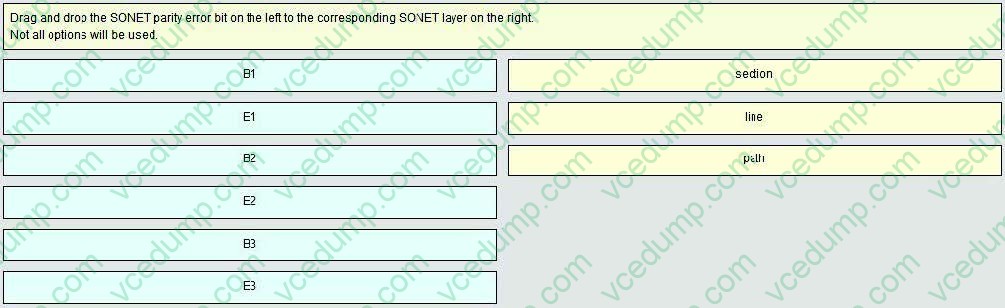

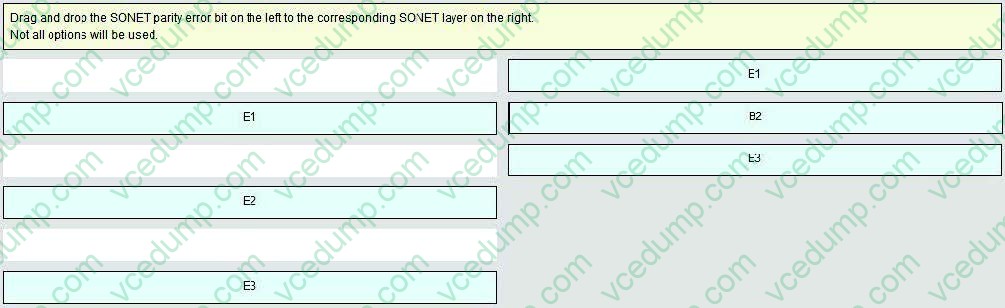

  Drag and drop the SONET parity error bit on the left to the corresponding SONET layer on the right. Not all options will be used.

  Select and Place:





• Question 440:

  What Cisco IOS feature examines packets received to make sure that the source address and interface are in the routing table and match the interface that the packet was received on?

  A. MPLS Traffic Engineering
  B. Receive ACL
  C. Unicast RPF
  D. Authentication
  E. Dynamic access-lists
  C. Unicast RPF
