Cisco 350-029 Online Practice Questions and Exam Preparation

350-029 Exam Details

  • Exam Code
    :350-029
  • Exam Name
    :CCIE Service Provider written
  • Certification
    :Cisco Certifications
  • Vendor
    :Cisco
  • Total Questions
    :520 Q&As
  • Last Updated
    :Dec 14, 2021

Cisco 350-029 Online Questions & Answers

  • Question 251:

    Based on the following output in a router A running LDP, which statement is true?

    ROUTER-A#show mpls ldp bindings 50.0.0.1 32 lib entry: 50.0.0.1/32, rev 5 local bindinG. label: imp-null remote bindinG. lsr: 50.0.0.4:0, label: 16

    A. None of the above.
    B. The IP address 50.0.0.1/32 is assigned to the non-directly connected LDP neighbor, 50.0.0.4.
    C. The IP address 50.0.0.1/32 is assigned to one of its own interfaces.
    D. The IP address 50.0.0.1/32 is assigned to its directly connected LDP neighbor, 50.0.0.4.

  • Question 252:

    What statement about Transit AS is true?

    A. Traffic and prefixes originating from Transit AS are carried across a Stub AS to their Source AS.
    B. None of the above.
    C. Traffic and prefixes originating from Source AS are carried across a Transit AS to reach their destination AS.
    D. Traffic and prefixes originating from Transit AS are carried across a Stub AS to their destination AS.

  • Question 253:

    Which four services use the inner labels of an MPLS label stack? (Choose four)

    A. MPLS VPN
    B. switching path in MPLS core
    C. Cisco MPLS Traffic Engineering and Fast Reroute
    D. MPLS over ATM
    E. VPN over Traffic Engineering core
    F. any transport over MPLS

  • Question 254:

    Which of the following statements regarding Selective Packet Discard (SPD) is correct?

    A. Selective Packet Discard (SPD) is a mechanism to drop non-routing packets instead of routing packets when the process level queue is congested.
    B. Selective Packet Discard (SPD) is a mechanism to drop normal IP packets instead of VOIP packets when the link is overloaded
    C. None of above.
    D. Selective Packet Discard (SPD) is a mechanism to drop Frame Relay frames with the DE bit set instead of Frame Relay frames DE bits without being set when the link is overloaded
    E. Selective Packet Discard (SPD) is a mechanism to drop packets with low IP precedence instead of packets with high IP precedence when the link is overloaded

  • Question 255:

    Which three of these are types of Ethernet Virtual Connections (EVCs) in the MEF concept? (Choose three)

    A. rooted multipoint EVC (E-Tree)
    B. point-to-point EVC (E-Line)
    C. point-to-multipoint EVC (E-Tree)
    D. hub spoke EVC (E-Tree)
    E. multipoint-to-multipoint EVC (E-LAN)

  • Question 256:

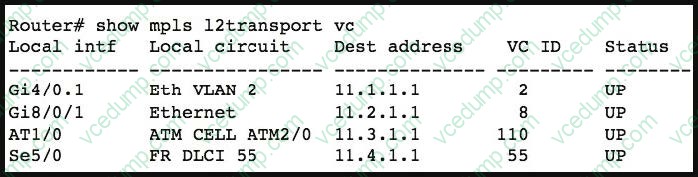

    Refer to the exhibit.

    Which attached circuit interface shown uses VC Type 4?

    A. Gi8/0/1
    B. AT1/0
    C. Se5/0
    D. ATM2/0
    E. Gi4/0.1

  • Question 257:

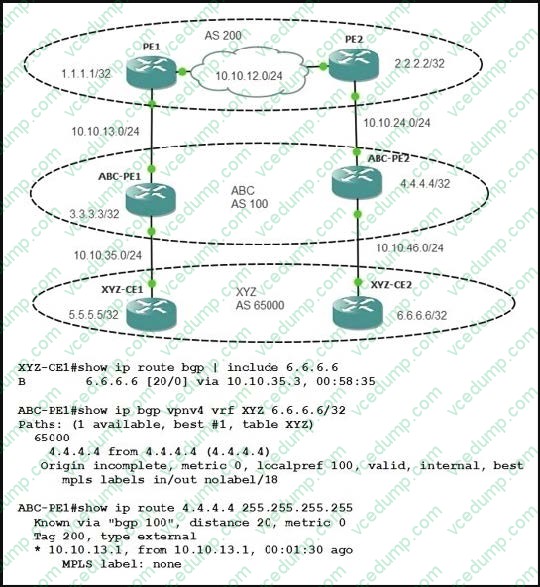

    Refer to the exhibit.

    AS 100 for ABC sites is used to carry XYZ customer traffic over ISP network. All routing between CEs to PEs are BGP-based. XYZ site 1 reports that it cannot reach XYZ site 2, although the destination network is installed in its routing table.

    Which statement describes the cause of the problem?

    A. LDP is not running between XYZ-CE1 and ABC_PE1.
    B. LDP is not running between ABC_PE1 and PE1.
    C. ABC_PE1 does not have an inbound label for subnet 6.6.6.6/32.
    D. send-label command is missing from PE1 to ABC-PE1.

  • Question 258:

    Which statement about the Link Control Protocol is true?

    A. LCP is used for basic PPP link setup and operation.
    B. LCP is used for PPP CHAP authentication.
    C. LCP is used for PPP over ATM setup.
    D. LCP is used for PPP over Ethernet setup.
    E. LCP is used for PPP over Frame Relay setup.

  • Question 259:

    Where are MPLS point-to-multipoint traffic engineering packets replicated?

    A. head-end router
    B. branch-point router
    C. midpoint router
    D. leaf-point router
    E. tail-end router

  • Question 260:

    A customer requests that sites are connected over an MPLS backbone using the MPLS AToM service. However, the network engineer advises that the MPLS L3VPN service may be better for this situation. Which characteristic of MPLS L3VPN may make it a better option from the Service Provider perspective?

    A. Reduction of operational complexity.
    B. Support for multiple network layer protocols, such as IP, IPX, and SNA
    C. Customer Layer 2 information will be maintained over the service provider core.
    D. Transparent to the customer
