• Question 171:

  Which option is the SONET frame format of the STM-4 SDH circuit?

  A. STS-1
  B. STS-192
  C. STS-12
  D. STS-3
  C. STS-12

• Question 172:

  Which statement about ATM AAL5 over MPLS is true?

  A. It supports ATM signaling.
  B. It supports traffic shaping of packets in MPLS to the ATM path.
  C. It supports ATM switched virtual circuits
  D. It supports fragmentation and reassembly.
  E. It supports AAL5 SDU switching.
  E. It supports AAL5 SDU switching.

  ---

  ReferencE. http://www.cisco.com/en/US/docs/ios/12_0s/feature/guide/fsaal22.html#wp1015337 Restrictions

  The following restriction apply to AAL5 over MPLS:

  The AAL5 over MPLS feature supports only AAL5 SDU switching.

  The following services are not supported with the AAL5 over MPLS feature:

  ATM switched virtual circuits (SVCs)

  ATM signaling

  Fragmentation and reassembly

  Traffic shaping of packets in the MPLS-to-ATM path

  The instructions for configuring AAL5 over MPLS in this feature module apply only to the Cisco 12000 series router for 12.0(21)ST. Avoid using these instructions for any other platform or release.

• Question 173:

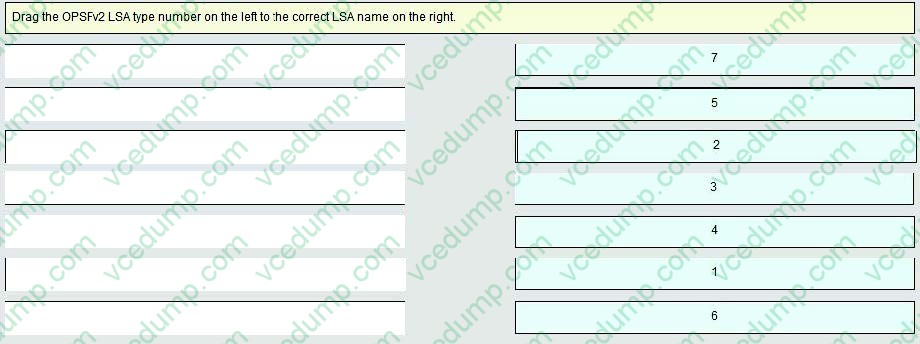

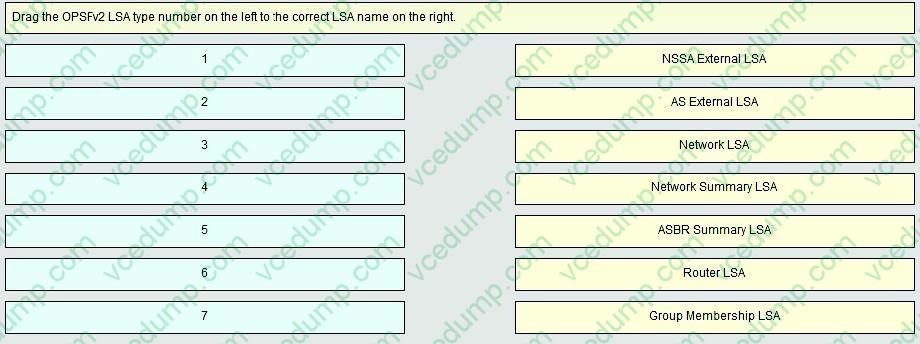

  Drag the OPSFv2 LSA type number on the left to the correct LSA on the right.

  Select and Place:





• Question 174:

  What is TCI?

  A. Tag Calling Interface
  B. Tag Control Identifier
  C. ToS Class Interface
  D. Tag Control Information
  D. Tag Control Information

• Question 175:

  Which two statements about VPNv4 address are true? (Choose two.)

  A. The VPNv4 address is 128 bits long with a 128-bit long subnet mask
  B. The VPNv4 address consists of an RD and an IPv4 address.
  C. The VPNv4 address is 96 bits long with a 64-bit long subnet mask.
  D. The VPNv4 address is 128 bits long with a 64-bit long subnet mask.
  E. The VPNv4 address consists of an RT and an IPv4 address.
  F. The VPNv4 address is 96 bits long with a 32-bit long subnet mask
  B. The VPNv4 address consists of an RD and an IPv4 address.
  F. The VPNv4 address is 96 bits long with a 32-bit long subnet mask

• Question 176:

  An ISP provides MPLS L3VPN services and is required to set up a multicast VPN. Which routers will be enabled with MDT to support a multicast VPN?

  A. All service provider routers participating in the multicast VPN.
  B. All service provider route reflectors.
  C. All service provider PE routers.
  D. All service provider P routers.
  E. All service providers P, PE and route reflector routers.
  A. All service provider routers participating in the multicast VPN.

• Question 177:

  If the IPv6 address 2001:0DB8:0000:0000:09C0:876A:0000:130B is entered into a router, which option is displayed in the configuration?

  A. 2001:db8:0:0:9C0:876A::130B
  B. 2001:db8:0:0:09C0:876A:0:130B
  C. 2001:db8::9C0:876A:0:130B
  D. 2001:db8::9C0:876A:130B
  E. 2001:0db8::9C:876A:13B
  C. 2001:db8::9C0:876A:0:130B

• Question 178:

  Which three of these are optical channel data unit (ODU) overhead fields? (Choose three)

  A. general communication channel 0 (GCC0)
  B. section monitoring
  C. reserved (RES)
  D. general communication channels 1 and 2 (GCC1 GCC2)
  E. tandem connection monitoring activation deactivation (TCM ACT)
  C. reserved (RES)
  D. general communication channels 1 and 2 (GCC1 GCC2)
  E. tandem connection monitoring activation deactivation (TCM ACT)

  ---

  Optical Data Unit (ODU)

  The ODU overhead is broken into several fields: RES, PM, TCMi, TCM ACT, FTFL, EXP, GCC1/GCC2 and APS/PCC. The reserved (RES) bytes are undefined and are set aside for future applications.

  The path monitoring (PM) field is similar to the SM field described above. It contains the TTI, BIP-8, BEI, BDI and Status (STAT) sub-fields.

  There are six tandem connection monitoring (TCMi) fields that define the ODU TCM sub-layer, each containing TTI, BIP-8, BEI/BIAE, BDI and STAT sub-fields associated to each TCM level (i=1 to 6). The STAT sub-field is used in the PM

  and TCMi fields to provide an indication of the presence or absence of maintenance signals.

  The tandem connection monitoring activation/deactivation (TCM ACT) field is currently undefined in the standards. The fault type and fault location reporting communication channel (FTFL) field is used to create a message spread over a 256byte multiframe. It provides the ability to send forward and backward path- level fault indications.

  The experimental (EXP) field is a field that is not subject to standards and is available for network operator applications.

  General communication channels 1 and 2 (GCC1/GCC2) fields are very similar to the GCC0 field except that each channel is available in the ODU. The automatic protection switching and protection communication channel (APS/PCC)

  supports up to eight levels of nested APS/PCC signals, which are associated to a dedicated-connection monitoring level depending on the value of the multiframe.

• Question 179:

  In Ethernet Aggregation application which option is needed when the U-PE connects to an N-PE and broadband remote access servers?

  A. Ethernet Multipoint Service (EMS)
  B. VPLS
  C. E1
  D. Wire Service
  A. Ethernet Multipoint Service (EMS)

• Question 180:

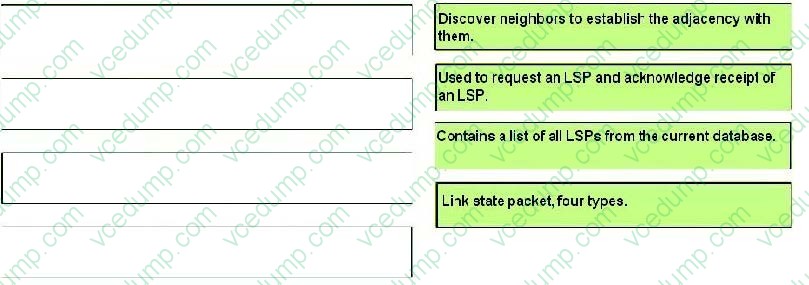

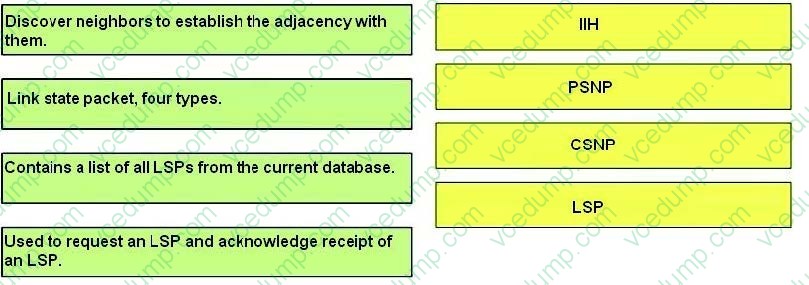

  Drag the ISIS packet types to correct type definition.

  Select and Place:
