• Question 191:

  Which three statements about the Route Distinguisher (RD) are true? (Choose three.)

  A. The RD is a BGP extended community.
  B. The RD prefix and a route target make the VPNv4 address unique.
  C. RD, similar to the AS number, is assigned to a service provider by the Internet Assigned Numbers Authority (IANA).
  D. The RD is an 8-byte field.
  E. One customer may use different RDs for the same IPv4 route.
  B. The RD prefix and a route target make the VPNv4 address unique.
  D. The RD is an 8-byte field.
  E. One customer may use different RDs for the same IPv4 route.

• Question 192:

  Which of the following IOS features can prevent IP spoofing attacks?

  A. Unicast Reverse Path Forwarding (uRPF)
  B. MPLS traffic Engineering
  C. Cisco Express Forwarding
  D. PPP over Ethernet
  E. IS-IS routing
  A. Unicast Reverse Path Forwarding (uRPF)

• Question 193:

  What happens when a broadcast storm is detected?

  A. The traffic threshold reaches 100%.
  B. CPU utilization reaches 100%.
  C. The value of the TotalSuppDiscards counter increments.
  D. The port goes down.
  E. The switch goes down.
  C. The value of the TotalSuppDiscards counter increments.

• Question 194:

  Which statements are correct for forwarding traffic into MPLS TE tunnels? (Choose 3)

  A. Autoroute causes the tunnel to be treated as a directly connected link to the head-end.
  B. Autoroute causes the TE head-end to establish IGP adjacency with the tail-end over the tunnel.
  C. Forwarding adjacency makes the TE head-end node advertise the Tunnel LSP into the IGP.
  D. Forwarding adjacency supports unequal cost load balancing over multiple TE tunnels.
  A. Autoroute causes the tunnel to be treated as a directly connected link to the head-end.
  C. Forwarding adjacency makes the TE head-end node advertise the Tunnel LSP into the IGP.
  D. Forwarding adjacency supports unequal cost load balancing over multiple TE tunnels.

• Question 195:

  Which are the three mandatory BGP attributes? (Choose three.)

  A. AS path
  B. origin
  C. local preference
  D. next hop
  E. MED value
  F. communities
  A. AS path
  B. origin
  D. next hop

• Question 196:

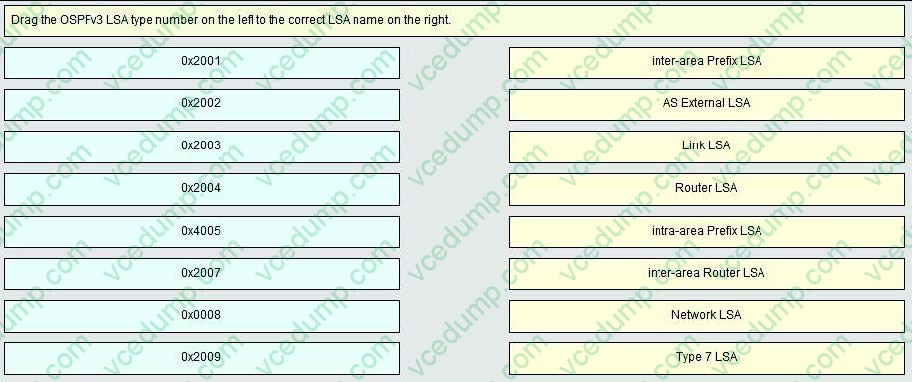

  Drag the OSPFv3 LSA type number on the left to the correct LSA name on the right.

  Select and Place:





• Question 197:

  Cisco IOS XR software is partitioned into three planes: control, data, and management. Which three of these belong to the data plane? (Choose three.)

  A. XML
  B. RIB
  C. FIB
  D. QoS
  E. PFI
  C. FIB
  D. QoS
  E. PFI

  ---

  (FIB, QoS, PFI). RIB is part of control plane

  1.4. SP high end product

  Cisco IOS XR Software is partitioned into three planes:

  Control: Distributes routing tasks and management of the routing information base (RIB) to participating RPs; different routing processes can be running on different physical units. DatA. Maintains the forwarding information base (FIB)

  changes across the participating nodes, letting the router perform as a single forwarding entity. Management: Controls the operation of the router as a single networking element.

• Question 198:

  Assume two routers on the same subnet, R1 and R2, both configured for HSRP. R1 has a priority of 120. Which of the following HSRP interface configurations will always result in the R2 becoming the primary? (Choose two.)

  A. standby 1 priority 120
  B. standby 1 priority 130 preempt
  C. standby 1 priority 130
  D. standby 1 priority 120 preempt
  E. standby 1 priority 110 preempt
  F. standby 1 priority 110
  B. standby 1 priority 130 preempt
  C. standby 1 priority 130

• Question 199:

  Typical ADSL broadband Internet access requires a username and password to be entered on end-user PC connected to the ADSL modem in order for the end user to gain access to the Internet. If a Cisco ADSL router is used instead of an ADSL modem, what functionality is required on the Cisco ADSL router so the end- user connected to the Cisco ADSL router can access the Internet without entering a username and password?

  A. Route Bridge Encapsulation (RBE)
  B. PPPoA
  C. Integrated Routing and Bridging (IRB)
  D. AAA
  E. PPPoE client
  E. PPPoE client

• Question 200:

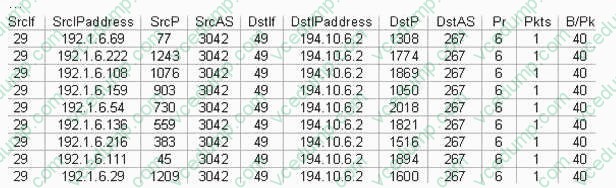

  R1#show ip cache flow.



  A network administrator issues the command "show ip cache flow" and finds the shown output. What can be concluded? (Choose two.)

  A. It is normal traffic.
  B. There is a potential sacrificed host located at network 192.1.6.0 generating attacks.
  C. There is a potential DOS attack on device of 194.10.6.2.
  D. It is multicast traffic source from 194.10.6.2
  E. It is multicast traffic destined for 194.10.6.2
  B. There is a potential sacrificed host located at network 192.1.6.0 generating attacks.
  C. There is a potential DOS attack on device of 194.10.6.2.
