Cisco 350-020 Online Practice Questions and Exam Preparation

Cisco 350-020 Online Questions & Answers

• Question 181:

  Where is the administrative unit pointer found in the STM-1 signal in SDH?

  A. Path Overhead
  B. Regenerator Section Overhead
  C. Multiplexer Section Overhead
  D. Line overhead
  C. Multiplexer Section Overhead

• Question 182:

  What is the difference in power at the input and the output of the device under test?

  A. Cross Talk
  B. Return Loss
  C. Insertion Loss
  D. Passband
  E. None of the above
  C. Insertion Loss

• Question 183:

  What is the difference in power at the input and the output of the device under test?

  A. Cross Talk
  B. Return Loss
  C. Insertion Loss
  D. Passband
  E. None of the above
  C. Insertion Loss

• Question 184:

  What tool holds settings for GateWay/SNMP, GateWay/TL1 and GateWay/CORBA?

  A. Add NE Wizard
  B. Circuit Wizard
  C. Control panel
  D. PM graph
  E. Subnetwork Explorer
  F. Management Wizard
  C. Control panel

• Question 185:

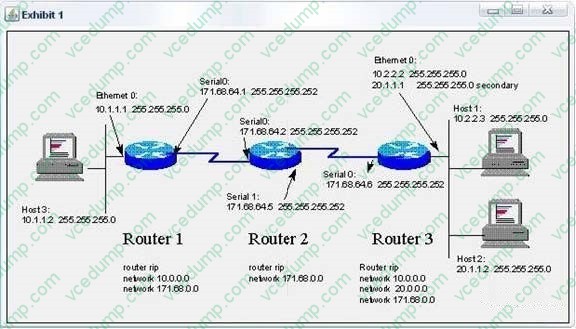

  Click the Exhibit button to view the topology.



  With RIP running, what command would be used to set the default route on Router 2 to 171.68.64.6 (Router 3)?

  A. ip default-network 171.68.64.6
  B. ip route 0.0.0.0 255.255.255.255 171.68.64.6
  C. ip route 0.0.0.0 0.0.0.0 171.68.64.6
  D. None of the above
  C. ip route 0.0.0.0 0.0.0.0 171.68.64.6

• Question 186:

  In MPLS what is an LSP?

  A. Label Selection Pair
  B. Label Switched Path
  C. Lightweight Signaling Protocol
  D. Large Sampling Path
  B. Label Switched Path

• Question 187:

  Click the Exhibit button.



  In a customer access ring environment, what type of transport architecture is best suited for creating an OC-12 RPR ring with 4 Cisco 12000 nodes?

  A. It depends upon the traffic flow.
  B. Meshed fiber with DWDM
  C. SONET OC-12 2F. BLSR ring
  D. SONET OC-12 2F. UPSR ring
  E. Hub and spoke fiber with DWDM
  C. SONET OC-12 2F. BLSR ring

• Question 188:

  What CiscoWorks 2000 application provides support for optical NEs?

  A. Internet Performance Monitor
  B. Resource Manager Essentials
  C. Service Level Manager
  D. Voice Health Monitor
  B. Resource Manager Essentials

• Question 189:

  How has the MDS 9000 been engineered to promote the use of DWDM for SAN extension?

  A. The MDS 9000 has eliminated "Fibre Channel Droop" through proxy acknowledgements of frame arrivals.
  B. The MDS 9000 has implemented buffer to buffer credits per port on the 16 port line card to allow for long distances.
  C. The effects of Fibre Channel Droop are exaggerated and by using light amplification can be nullified.
  D. DWDM has increased available lamdas in order to simultaneously send data on a second lamda, thereby eliminating fibre channel droop.
  B. The MDS 9000 has implemented buffer to buffer credits per port on the 16 port line card to allow for long distances.

• Question 190:

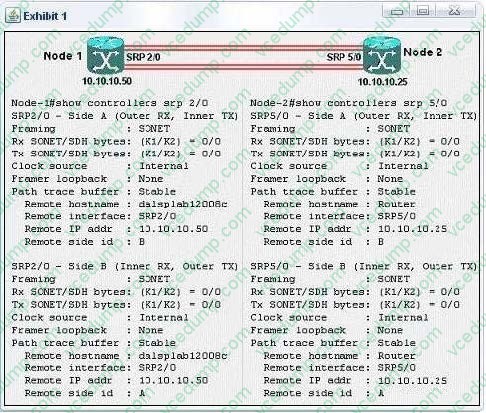

  Click the Exhibit button.



  A customer has improperly installed a 2-node OC-12 SRP ring using dark fiber. Based on the printout from each node shown in the exhibit, what is the problem?

  A. Misconfigured timing
  B. Single faulty span or fiber between nodes
  C. A-B side SRP interfaces are fiber-looped on each node
  D. A-B side TX-TX and RX-RX fibers connected between nodes
  E. A-A and B-B side SRP interfaces connected between nodes
  C. A-B side SRP interfaces are fiber-looped on each node
