Cisco 350-020 Online Practice Questions and Exam Preparation

Cisco 350-020 Online Questions & Answers

• Question 171:

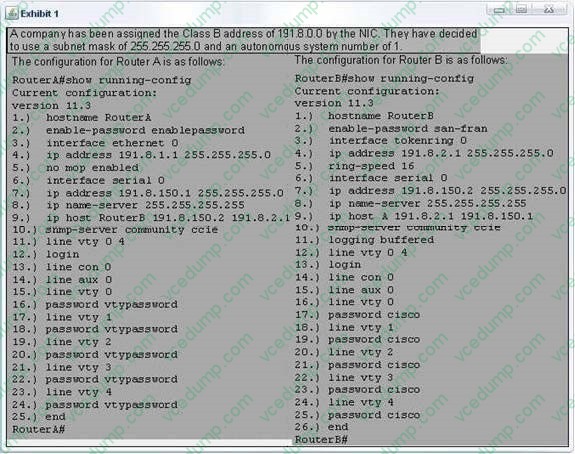

  Click the Exhibit button to view the configuration.



  The network associated with Router A's Ethernet 0 port is designed to be publicly accessible. However, Router B's Token Ring 0 network should be accessible only to hosts from Router A's Ethernet 0 network. What access list for Router B would accomplish this?

  A. access-list 99 permit 191.8.1.0 0.0.0.255 access-list 99 deny 0.0.0.0 255.255.255.255
  B. access-list 103 permit 191.8.1.0 0.0.0.255 access-list 103 deny 0.0.0.0 255.255.255.255
  C. access-list 88 deny 0.0.0.0 255.255.255.255 access-list 88 permit 191.8.1.0 0.0.0.255
  D. access-list 3 permit 191.8.1.0 255.255.255.0 access-list 3 deny 0.0.0.0 0.0.0.0
  E. access-list 99 permit 191.8.10.0 0.0.0.0 access-list 99 deny 0.0.0.0 255.255.255.255
  A. access-list 99 permit 191.8.1.0 0.0.0.255 access-list 99 deny 0.0.0.0 255.255.255.255

• Question 172:

  What network is a supernet?

  A. 134.176.64.0 255.255.192.0
  B. 16.0.1.0 255.255.255.0
  C. 134.176.0.16 255.255.255.240
  D. 195.97.16.0 255.255.254.0
  D. 195.97.16.0 255.255.254.0

• Question 173:

  What is the purpose of Dual Ring Interconnect in SONET rings?

  A. Protects signals against a node failure in a single ring
  B. Protects signals when a ring switch fails C. Protects signals when multiple span switches fail
  D. Protects pre-emptible traffic from being dropped when a ring switch occurs
  E. Protects signals against intermediate node failures between rings
  E. Protects signals against intermediate node failures between rings

• Question 174:

  An incoming frame is received by a transparent bridge. If the destination address of the frame is not present in the database, the bridge:

  A. Discard the frame
  B. Send out the frame on all interfaces, except on the interface where the frame originate
  C. Put the destination MAC address in the table
  D. Broadcast the frame on all interfaces
  E. None of the above
  B. Send out the frame on all interfaces, except on the interface where the frame originate

• Question 175:

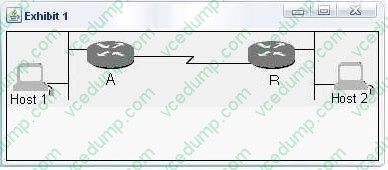

  Click the Exhibit button to view the topology.



  Host 1 and Host 2 are on Ethernet LANs in different buildings. A serial line is installed between two Cisco routers using Cisco HDLC serial line encapsulation. Routers A and B are configured to route IP traffic. Host 1 sends a packet to Host 2. A line hit on the serial line causes an error in the packet. When this is detected, the retransmission is sent by:

  A. Host 1
  B. Host2
  C. Router A
  D. RouterB
  E. Protocol analyzer
  A. Host 1

• Question 176:

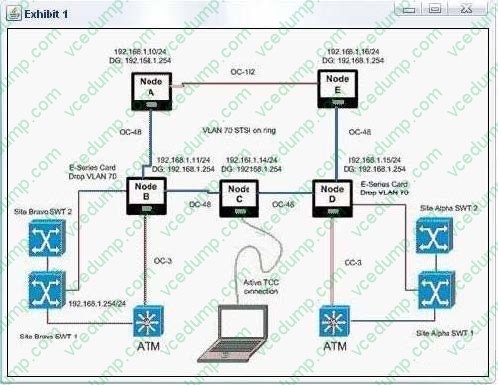

  Click the Exhibit button.



  In the figure, what IP address would you assign to a desktop connected to the TCC port on node E . Would a static route be needed to allow access to other nodes, and in which node would you install it?

  A. Any Pingable IP address from Telnet session in Site Bravo SWT 1, No static route needed to allow access to other nodes.
  B. 192.168.1.101/24, Yes in Node E, local subnet pointed to 192.168.1.254.
  C. 192.168.1.152/24, No Static route needed to allow access to other nodes.
  D. 192.168.1.14/24, No Static route needed to allow access to other nodes.
  C. 192.168.1.152/24, No Static route needed to allow access to other nodes.

• Question 177:

  A network administrator is using debug commands to check the performance of a network. What steps can the administrator take to ensure that the "debug" will not require too much CPU, or at least that she will not have to reboot the router to disable debug? (multiple answer)

  A. Make the debug command as specific as possible
  B. use the max-time parameter of the debug command
  C. in configuration mode, enter scheduler interval 15
  D. Configure a loopback to channel debug traffic
  A. Make the debug command as specific as possible
  C. in configuration mode, enter scheduler interval 15

• Question 178:

  In Frame Relay, what devices resend packets that do not transmit correctly?

  A. Digital transmission media cabled to monitor ports, as opposed to straight DCE signaling
  B. Network end stations
  C. Network switches running SNMP management software
  D. Special bridging devices within the backbone cloud
  B. Network end stations

• Question 179:

  Optical Supervisory Channel that connects Cisco DWDM active platforms is:

  A. 192Kb/s and the 33rd Lambda
  B. Ethernet Framed and the 33rd Lambda
  C. 32nd Lambda and not framed
  D. 10G and the 33rd Lambda
  B. Ethernet Framed and the 33rd Lambda

• Question 180:

  What is the transmission limitation on a single 1550 nm signal, at OC-192 bit-rate, over certified SMF. 28 fiber using no dispersion compensation?

  A. Four-wave mixing
  B. Polarization-mode dispersion
  C. Chromatic dispersion
  D. Attenuation
  C. Chromatic dispersion
