Cisco 350-020 Online Practice Questions and Exam Preparation

Cisco 350-020 Online Questions & Answers

• Question 201:

  The total capacity of a 2F MS-SPRing network of N nodes operating as MS-SPRing nodes operating at a ring speed of STM-4 in VC4 units is: (NOTE: PT=Pass Through traffic)

  A. 2xN-PT
  B. 4xN-PT
  C. 8xN-PT
  D. Depends on the traffic pattern
  A. 2xN-PT

• Question 202:

  What is the power at the output ports of a 90%-10% Tee coupler that has an 80 m W light source and 1 dB of excess loss?

  A. 57.2 m W and 6.3 m W
  B. 72 m W and 8 m W
  C. 90.6 m W 10.2 m W
  D. 60.3 m W 3.2 m W
  A. 57.2 m W and 6.3 m W

• Question 203:

  Which three are types of payloads carried by path signal label byte C2?

  A. 0x16 scrambled POS
  B. 0x13 ATM
  C. 0x13 unscrambled POS
  D. OxCF scrambled POS
  E. OxCF unscrambled POS
  A. 0x16 scrambled POS
  B. 0x13 ATM
  E. OxCF unscrambled POS

• Question 204:

  What is true about the DLCI field in the Frame Relay header?

  A. It consists of two portions, source and destination, which map data to a logical channel.
  B. It generally has significance only between the local switch and the DTE device.
  C. It is an optional field in the ITU-T specification.
  D. It is present only in data frames sent through the network.
  B. It generally has significance only between the local switch and the DTE device.

• Question 205:

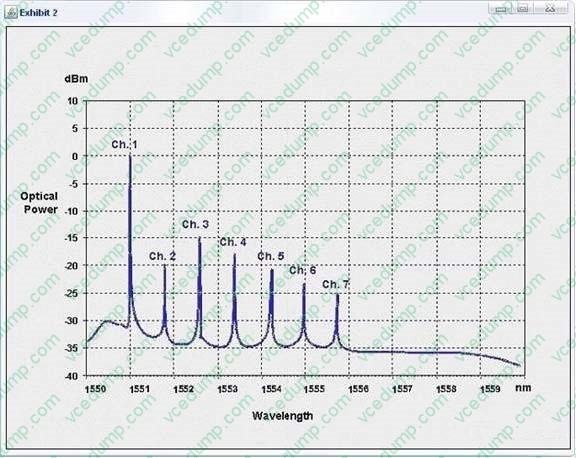

  Click the Exhibit button to view the graph.



  The graph represents optical signal power versus wavelength measurement from 1550nm to 1560nm. What is the worst case optical signal-to-noise ratio (OSNR) of Channel 1 at 0.5nm away from the peak?

  A. 21dB
  B. 24dB
  C. 27dB
  D. 30dB
  E. 33dB
  D. 30dB

• Question 206:

  In BGP, why should a Route Reflector be used?

  A. To overcome issues of split-horizon within BGP
  B. To reduce the number of External BGP peers by allowing updates to 'reflect' without the need to be fully meshed
  C. To allow the router to 'reflect' updates from one Internal BGP speaker to another without the need to be fully meshed
  D. To divide Autonomous Systems into mini-Autonomous Systems, allowing the reduction in the number of peers
  E. None of the above
  C. To allow the router to 'reflect' updates from one Internal BGP speaker to another without the need to be fully meshed

• Question 207:

  Where is the administrative unit pointer found in the STM-1 signal in SDH?

  A. Path Overhead
  B. Regenerator Section Overhead
  C. Multiplexer Section Overhead
  D. Line overhead
  C. Multiplexer Section Overhead

• Question 208:

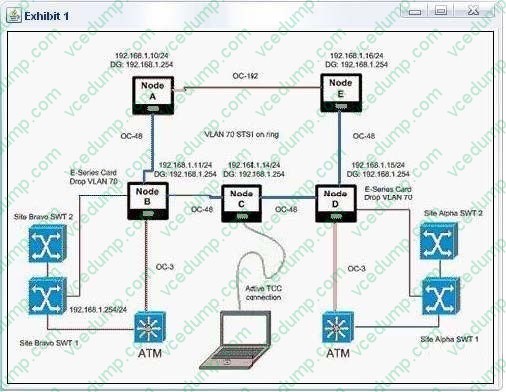

  Click the Exhibit button.



  In the figure, if OSPF were disabled on the DCC links between the nodes in the system:

  A. The system would not auto-discover all nodes, and A-Z provisioning would not be possible to all nodes.
  B. OSPF is by Default disabled on the DCC, it is only enabled when unusual remote access is needed.
  C. Static routes would be needed in each node to facilitate connectivity between the nodes.
  D. Only Gateway Network Element connected nodes would be auto-discovered. VLAN 70 would act as the Data Control Network, and A-Z provisioning would be unavailable.
  A. The system would not auto-discover all nodes, and A-Z provisioning would not be possible to all nodes.
  C. Static routes would be needed in each node to facilitate connectivity between the nodes.
  D. Only Gateway Network Element connected nodes would be auto-discovered. VLAN 70 would act as the Data Control Network, and A-Z provisioning would be unavailable.

• Question 209:

  In R4.1 of the 15454, the ML-series Ethernet cards provide QoS enhancements that allow Service Providers to deliver CIR/PIR (Committed Information Rate/Peak Information Rate) type SLA's.

  Which two specific QoS mechanisms were added to accomplish this?

  A. Weighted Deficit Round Robin Scheduling (WDRR)
  B. Tri-colorpolicer
  C. Discard Eligible Tail Drop Mechanism
  D. Low Latency Queuing (LLQ)
  B. Tri-colorpolicer
  C. Discard Eligible Tail Drop Mechanism

• Question 210:

  MPLS traffic engineering routing information is carried by:

  A. BGP MEDs
  B. MP-BGP
  C. OSPF Opaque LSAs or IS-IS TLVs
  D. RTP or RTCP packets
  C. OSPF Opaque LSAs or IS-IS TLVs
