• Question 71:

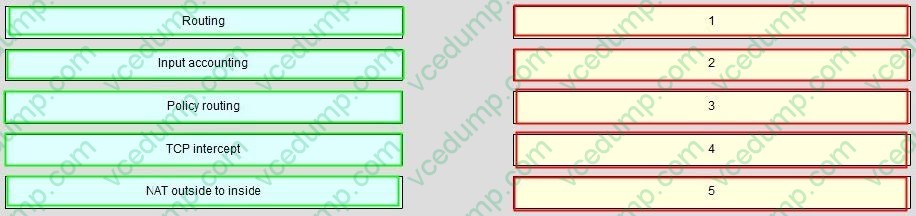

  Drag the actions on the left to the correct order on the right when doing outside-to-inside NAT translation.

  Select and Place:





• Question 72:

  Which configuration would make an IP SLA probe use a precedence value of 3?

  A. ip sla 1 icmp-echo 1.1.1.1 tos 12
  B. ip sla 1 icmp-echo 1.1.1.1 tos 96
  C. ip sla 1 icmp-echo 1.1.1.1 precedence 3
  D. ip sla 1 icmp-echo 1.1.1.1 dscp 12
  B. ip sla 1 icmp-echo 1.1.1.1 tos 96

• Question 73:

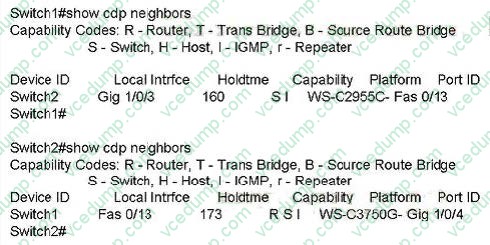

  Refer to the exhibit. Look at the command output. What can you use to prevent this behavior?



  A. udld
  B. spanning-tree loopguard
  C. VTP mode transparent
  D. switchport mode desirable
  A. udld

• Question 74:

  Refer to the exhibit. R1 has an EBGP session to ISP 1 and an EBGP session to ISP 2. R1 receives the same prefixes through both links. Which configuration should be applied so that the link between R1 and ISP 2 will be preferred for outgoing traffic (R1 to ISP 2)?



  A. Increase local preference on R1 for received routes
  B. Decrease local preference on R1 for received routes
  C. Increase MED on ISP 2 for received routes
  D. Decrease MED on ISP 2 for received routes
  A. Increase local preference on R1 for received routes

• Question 75:

  When two bridges are competing for the root bridge of an IEEE 802.1D spanning tree and both have the same bridge priority configured, which parameter determines the winner?

  A. highest-numbered IP interface
  B. MAC address
  C. device uptime
  D. root port cost
  B. MAC address

• Question 76:

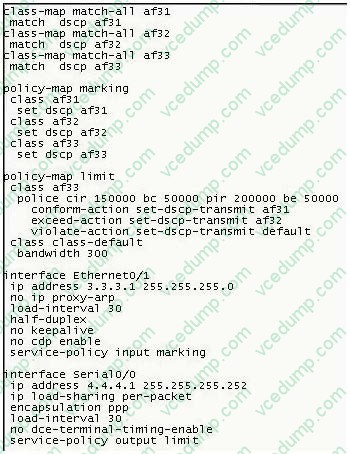

  Refer to the exhibit. As a network administrator, you have configured a dual-rate, dual-bucket policer in accordance with RFC 2698 on the serial interface of you router, connecting to your provider. The SLA with your provider states that you should only send AF31 (limited to 150 kb/s), AF32 (limited to 50 kb/s)and AF33 (best effort). Your service provider claims you are not conforming to the SLA.

  Which two things are wrong with this configuration? (Choose two.)



  A. The configuration of a service policy on half-duplex Ethernet interfaces is not supported.
  B. The class class-default sub-command of the policy-map limit command should be set to the DSCP
  C. default.
  D. The violate action is wrong.
  E. This policer configuration is not implementing RFC 2698 dual-bucket, dual-rate.
  F. The policer is configured in the wrong class.
  C. default.
  E. This policer configuration is not implementing RFC 2698 dual-bucket, dual-rate.

• Question 77:

  Which two statements are true about traffic shaping? (Choose two.)

  A. Shaping buffers excess packets.
  B. It is applied in the incoming direction only.
  C. Shaping can remark excess packets.
  D. It supports interaction with frame relay congestion indication.
  A. Shaping buffers excess packets.
  D. It supports interaction with frame relay congestion indication.

• Question 78:

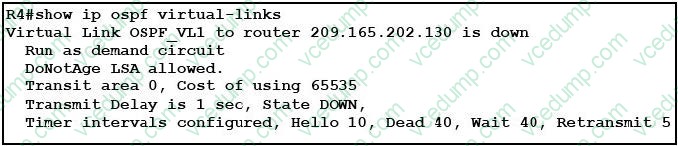

  Refer to the exhibit. An OSPF virtual link is configured between R4 and R3. Based upon the show command output, why is the virtual-link down?



  A. Virtual links cannot transit area 0.
  B. The cost of the virtual link needs to be configured as 1.
  C. The timer intervals for virtual links need to be aggressive (2, 8, 8, and 1).
  D. The virtual interface VL1 is shut down.
  A. Virtual links cannot transit area 0.

• Question 79:

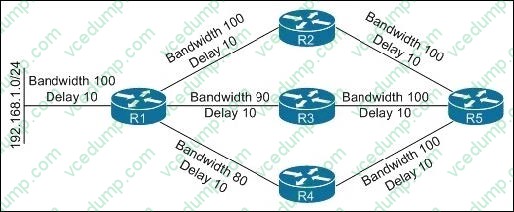

  Refer to the exhibit.



  EIGRP has been configured on all routers in this network. Which EIGRP neighbor will R5 consider as the successor for network 192.168.1.0/24?

  A. R3 will be the successor for 192.168.1.0/24.?
  B. R4 will be the successor for 192.168.1.0/24.?
  C. R2 will be the successor for 192.168.1.0/24.?
  D. There is not enough information to determine which neighbor will be considered as successor.
  E. R3 and R4 will both be a successor for 192.168.1.0/24.
  C. R2 will be the successor for 192.168.1.0/24.?

• Question 80:

  What is the Internet Protocol Number for all PIM control Messages?

  A. 15
  B. 17
  C. 25
  D. 103
  D. 103
