• Question 131:

  An architect is designing a storage solution for a Cisco UCS server infrastructure with these requirements:

  1.

  identical deployment of servers

  2.

  can add vHBAs to a group of servers

  3.

  configuration of servers stays synchronized

  Which solution meets these requirements?

  A. service profile template
  B. global adapter policy
  C. WWPN pool
  D. updating vNIC template
  A. service profile template

• Question 132:

  DRAG DROP

  Drag and drop the technologies from the left onto the correct descriptions on the right.

  Select and Place:





  ---

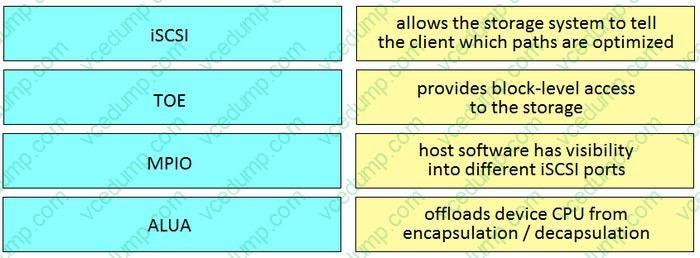

  Explanation/Reference:

• Question 133:

  An engineer working for a private telecommunication company with an employee ID 4419 90 979 is installing a pair of Nexus 7000 Series Switches and must deploy the solution with these requirements:

  1.

  The environment must be separated for test and production purposes

  2.

  The separation should include control, data and management plane with fault domain isolation and improved security

  3.

  The test environment needs only F2 series line cards and a maximum of 256 VLANs

  Which set of actions meets these requirements?

  A. Use VRF faQUMIife environments Configure allow feature set for both VRFs Enable limit-resource vlan minimum for the test VRF
  B. Use VDC for each of the environments Configure limit-resource module-type functionality for the test VDC Enable limit resource vlan for the test VDC.
  C. Use VDC for each of the environments Configure allow feature set for both VRFs Enable limit-resource vlan maximum for the test VRF
  D. Use VRF for each of the environments Configure limit-resource module-type functionality for the test VDC. Enable module-type for the VRF
  B. Use VDC for each of the environments Configure limit-resource module-type functionality for the test VDC Enable limit resource vlan for the test VDC.

• Question 134:

  When planning to deploy a load-balancing service as a managed node, which ACI configuration must be included?

  A. BGP ECMP
  B. Layer 4 to Layer 7 device package
  C. inline load-balancing device
  D. ITD
  B. Layer 4 to Layer 7 device package

  ---

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/ACI_Best_Practices/b_ACI_Best_Practices/b_ACI_Best_Practices_chapter_0110.html

• Question 135:

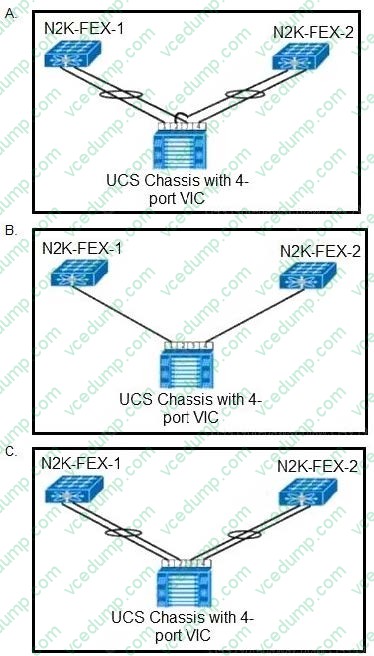

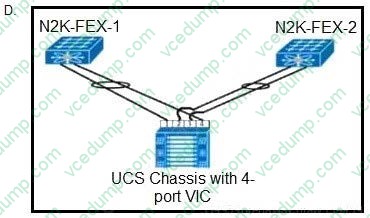

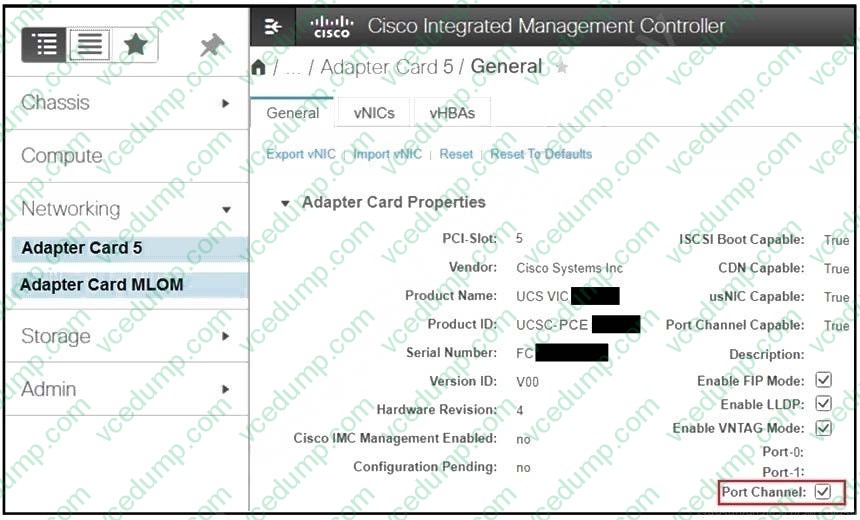

  Refer to the exhibit.



  An engineer must connect the four-port Cisco UCS VIC adapter to the fabric extenders. Which connectivity implements a port-channel standalone mode?





  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 136:

  A cloud service provider provisioned four active/active data centers in various locations within the country at 50 miles between each data center. The data centers must provide redundant network infrastructure and always be available to customers.

  Which two data center design steps must be used to meet these requirements? (Choose two.)

  A. Provide application hosting services to customers from the closest data center.
  B. Implement active cluster in data centers 1 and 2 and backup in 3 and 4.
  C. Use asynchronous replication between data centers 1 and 2.
  D. Deploy database services in data center 1 and application layer to other data centers.
  E. Configure application data replication to all backup data centers.
  A. Provide application hosting services to customers from the closest data center.
  E. Configure application data replication to all backup data centers.

• Question 137:

  An engineer is implementing a storage area network where an NPV is used. The engineer notices that the servers in a storage farm are experiencing heavy traffic contention. The engineer needs to migrate traffic from heavily loaded server interfaces to interfaces with less load. When the new links are deployed, the existing traffic is not rebalanced as expected.

  Which feature must be used to meet these requirements?

  A. NPV
  B. multiple VSAN support
  C. DVM
  D. disruptive load balancing
  A. NPV

  ---

  Disruptive Auto Load Balancing of Server Logins across NP Links FC NPV supports disruptive load balancing of server logins. When disruptive load balancing is enabled, FC NPV redistributes the server interfaces across all available NP uplinks when a new NP uplink becomes operational. To move a server interface from one NP uplink to another NP uplink, FC NPV forces reinitialization of the server interface so that the server performs a new login to the core switch. FC NPV supports disruptive load balancing of server logins. When disruptive load balancing is enabled, FC NPV redistributes the server interfaces across all available NP uplinks when a new NP uplink becomes operational. To move a server interface from one NP uplink to another NP uplink, FC NPV forces reinitialization of the server interface so that the server performs a new login to the core switch. Only server interfaces that are moved to a different uplink are reinitialized. A system message is generated for each server interface that is moved.

• Question 138:

  An engineer must design a multitenant solution using Cisco 7709 switches. The solution must support separate routing instances, separate spanning tree domains, and separate firewalls for each tenant. Which solution meets these requirements?

  A. CFS
  B. VDC
  C. vPC
  D. VRF
  B. VDC

• Question 139:

  A SAN fabric is built between a pair of Cisco MDS 9000 Series Switches. The requirement is for the ISL to use the VSAN ID to toward traffic from multiple VSANs across the same physical link. Additionally, the Fibre Channel trace feature must be supported.

  Which ISL interface parameters are required to meet these requirements?

  A. switchport mode TE switchport mode trunk vsan
  B. switchport mode TE switchport mode trunk
  C. switchport mode E switchport mode trunk vsan
  D. switchport mode E switchport mode trunk
  B. switchport mode TE switchport mode trunk

• Question 140:

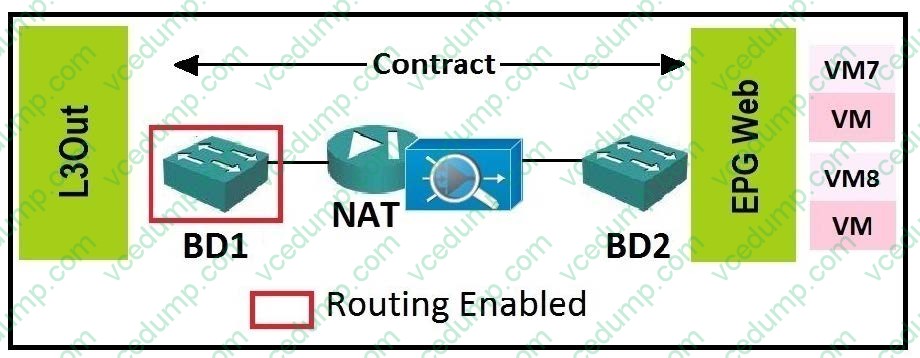

  Refer to the exhibit.



  What must be the default gateway of the servers in EPG Web?

  A. subnet address of BD1
  B. subnet address of L3Out
  C. subnet address of BD2
  D. NAT appliance
  D. NAT appliance

  ---

  Because of the NAT, the server subnet and and bd2 subnet are different, so the servers cannot use bd2 subnet gateway. Therefore only the NAT device knows the local gateway for the servers.
