Cisco 300-320 Online Practice Questions and Exam Preparation

Cisco 300-320 Online Questions & Answers

• Question 221:

  DRAG DROP

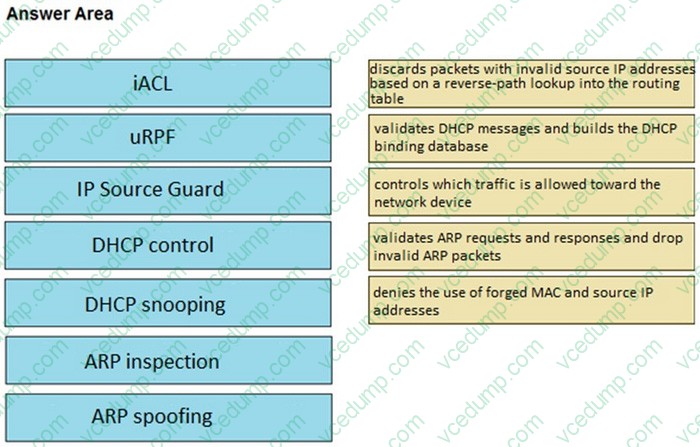

  Drag and drop the network protection mechanisms from the left onto the correct descriptions on the right. Not all options are used.

  Select and Place:





• Question 222:

  Which two options describe how Taboo contracts differ from regular contracts in Cisco ACI? (Choose two)

  A. Taboo contract entries are looked up with higher priority than entries in regular contracts
  B. Taboo contract entries are looked up with lower priority than entries in regular contracts.
  C. They are not associated with one EPG
  D. They are associated with one EPG
  E. Taboo contract entries are looked up based on administrator configured priority
  F. They are associated with pair of EPGs
  A. Taboo contract entries are looked up with higher priority than entries in regular contracts
  F. They are associated with pair of EPGs

  ---

  There may be times when the ACI administrator might need to deny traffic that is allowed by another contract.

  Taboos are a special type of contract that an ACI administrator can use to deny specific traffic that would otherwise be allowed by another contract. Taboos can be used to drop traffic matching a pattern (any EPG, a specific EPG, matching a filter, and so forth). Taboo rules are applied in the hardware before the rules of regular contracts are applied. Taboo contracts are not recommended as part of the ACI best practices but they can be used to transition from traditional networking to ACI. To imitate the traditional networking concepts, an "allow-all-traffic" contract can be applied, with taboo contracts configured to restrict certain types of traffic."

  EPG ?End-Point Groups

• Question 223:

  An engineer must create a BGP design that allows traffic load balancing. Which BGP feature must be enabled manually to achieve this design?

  A. maximum-paths
  B. extended communities
  C. confederations
  D. maximum-prefix
  A. maximum-paths

• Question 224:

  On which type of port is STP disabled?

  A. Flex Link
  B. PortFast
  C. P2p Edge
  D. EtherChannel
  A. Flex Link

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3550/software/release/12-2_25_see/configuration/guide/swflink.html

• Question 225:

  What is the latest Cisco high-availability solution?

  A. VRRP
  B. HSRP
  C. VSS
  D. GLBP
  C. VSS

• Question 226:

  Which VPN connectivity representing both Hub-and-Spokes and Spokes-to-Spokes?

  A. DMVPN
  B. IPSec VPN
  C. VPN Router
  D. VPN hub
  A. DMVPN

• Question 227:

  You use 2x ISPs for the internet connectivity. How could you avoid your internal network to become a transit area (Choose two)?

  A. accept all routes from ISPs inbound
  B. advertise all routes outbound
  C. filter internal routes inbound
  D. filter internal routes outbound
  E. use just one ISP
  A. accept all routes from ISPs inbound
  D. filter internal routes outbound

• Question 228:

  Which option prevents the dropping of asymmetrically routed packets in active/active failover paired firewalls?

  A. Nothing can be done to prevent this from happening.
  B. Configure different policies on both firewalls.
  C. Assign similar interfaces on each firewall to the same asymmetric routing group.
  D. Assign similar interfaces on each firewall to a different asymmetric routing group.
  C. Assign similar interfaces on each firewall to the same asymmetric routing group.

• Question 229:

  What is the primary benefit of deployment MPLS over the WAN as opposed to extending VRF-lite across the WAN?

  A. convergence time
  B. low operating expense
  C. low latency
  D. dynamic fault-tolerance
  B. low operating expense

• Question 230:

  A customer has an existing Wan circuit with a capacity 10 mbps. The circuit has 6 Mbps of various user traffic and 5 mbps of real-time audio traffic on average. Which two measures could be taken to avoid loss of real time Traffic? (Choose Two)

  A. Police the traffic to 5 mbps and allow excess traffic to be remarked to the default queue
  B. Configure congestion avoidance mechanism WRED within the priority queue
  C. Policy the traffic to 3.3 mbps and allow excess traffic to be remarked to the default queue
  D. Increase the wan circuit bandwidth
  E. Ensure that real time traffic is prioritized over other traffic
  D. Increase the wan circuit bandwidth
  E. Ensure that real time traffic is prioritized over other traffic
