Cisco 300-320 Online Practice Questions and Exam Preparation

Cisco 300-320 Online Questions & Answers

• Question 241:

  Which two practices will avoid Cisco Express Forwarding polarization?(Choose two.)



  A. The core layer should use default Layer 3 hash information.
  B. The core layer should use default Layer 4 hash information.
  C. The distribution layer should use default Layer 3 hash information.
  D. The distribution layer should use default Layer 4 hash information.
  E. The core layer should use Layer 3 and Layer 4 information as input to the Cisco Expressing Forwarding hashing algorithm.
  F. The distribution layer should use Layer 3 and Layer 4 information as input into the Cisco Expressing Forwarding hashing algorithm.
  A. The core layer should use default Layer 3 hash information.
  F. The distribution layer should use Layer 3 and Layer 4 information as input into the Cisco Expressing Forwarding hashing algorithm.

• Question 242:

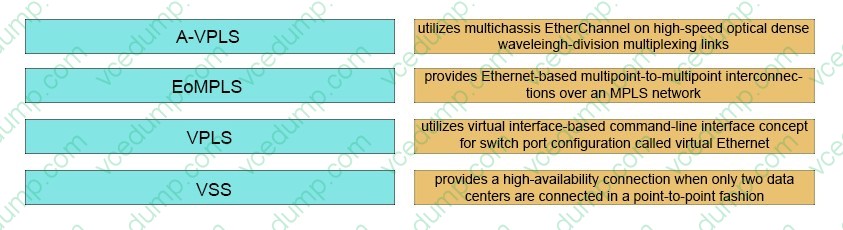

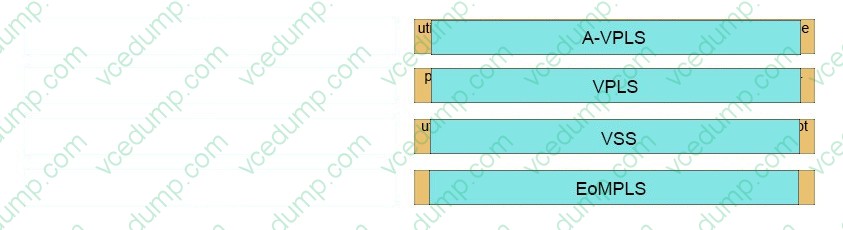

  DRAG DROP

  Drag and drop the Remote Data Center Layer 2 Extension option from the left onto its function on the right.

  Select and Place:





• Question 243:

  A network engineer is designing a network that must incorporate seamless failover when a link failure occurs between the core and distribution layer. What two technologies will allow this? (Choose two.)

  A. ECMP
  B. RSTP
  C. MEC
  D. GLBP
  E. HSRP
  A. ECMP
  C. MEC

• Question 244:

  A company is Multi-Homed to different service providers running BGP. Which action ensures that the company AS does not become a transit AS?

  A. Create a distribute list that filters all routes except the default route and applies to both BGP neighbour interfaces in the inbound direction
  B. Create a distribute list that filters all routes except the default route and applies to a single BGP neighbour in the outbound direction
  C. Create prefix list that matches the company prefixes and applies to both BGP neighbour definitions in the outbound direction.
  D. Create a route map that matches the provider BGP communities and networks and applies to both transit neighbour interfaces in the outbound direction.
  C. Create prefix list that matches the company prefixes and applies to both BGP neighbour definitions in the outbound direction.

• Question 245:

  A network engineer is evaluating an architecture that utilizes VSS for the data center module. Which two advantages of using VSS technology are true? (Choose two.)

  A. It removes the need to configure redundant switches with identical policies.
  B. It removes the need for Hot Standby Router Protocol.
  C. It adds arbitrary forwarding topologies on top of a fixed routed underlay topology.
  D. Each switch has a separate control plane.
  E. It is capable of supporting live migration of virtual machines as they move from one physical server to another.
  A. It removes the need to configure redundant switches with identical policies.
  B. It removes the need for Hot Standby Router Protocol.

• Question 246:

  Design for data center where you don't have to dedicate one switch per rack?

  A. Top of rack
  B. End of row
  C. Blade Switch
  D. Middle of row
  B. End of row

• Question 247:

  OTV to interconnect three data centers and what should there be in each data center

  A. VTEP
  B. vxlan ?
  A. VTEP

• Question 248:

  When a router has to make a rate transition from LAN to WAN, what type of congestion needs should be considered in the network design?

  A. RX-queue deferred
  B. TX-queue deferred
  C. RX-queue saturation
  D. TX-queue saturation
  E. RX-queue starvation
  F. TX-queue starvation
  F. TX-queue starvation

  ---

  http://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/Campus/HA_campus_DG/hacampusdg.html

• Question 249:

  When designing data centers for multitenancy, which two benefits are provided by the implementation of VSAN and zoning? (choose two)

  A. VSAN provides a means of restricting visibility and connectivity among devices connected to a zone
  B. VSANs have their own set of services and address space, which prevents an issue in one VSAN from affecting others
  C. Zones provide the ability to create many logical SAN fabrics on a single Cisco MDS 9100 family switch
  D. VSANs and zones use separate fabrics
  E. Zones allow an administrator to control which initiators can see which targets
  B. VSANs have their own set of services and address space, which prevents an issue in one VSAN from affecting others
  E. Zones allow an administrator to control which initiators can see which targets

• Question 250:

  Which of these is true of IP addressing with regard to VPN termination?

  A. addressing designs need to allow for summarization
  B. termination devices need routable addresses inside the VPN
  C. IGP routing protocols will update their routing tables over an IPsec VPN
  D. designs should not include overlapping address spaces between sites, since NAT is not supported
  C. IGP routing protocols will update their routing tables over an IPsec VPN

  ---

  An IPsec VPN is an overlay on an existing IP Network. The VPN termination devices need routable IP addresses for the outside Internet connection. Private IP address can be used on the inside of the VPN. Just a good IP network design supports summarization, the VPN address space needs to be designed to allow for network summarization. NAT may be needed to support overlapping address space between sites in an organization.
