Cisco 300-320 Online Practice Questions and Exam Preparation

Cisco 300-320 Online Questions & Answers

• Question 211:

  Given the addresses 10.10.16.0/24 and 10.10.23.0/24, which option is the best summary?

  A. 10.10.0.0/16
  B. 10.10.8.0/23
  C. 10.10.16.0/23
  D. 10.10.16.0/21
  D. 10.10.16.0/21

• Question 212:

  A VPN solution requires bulk traffic encryption, low OpEx to add new sites, and the ability to accommodate dynamic tunnels between branch locations. What VPN solution can fulfill these requirements?

  A. GETVPN
  B. SSL VPN
  C. Easy VPN
  D. DMVPN
  D. DMVPN

• Question 213:

  A network engineer wants to segregate three interconnected campus network via IS-IS routing. A two-layer hierarchy must be used to support large routing domains to avoid more specific routes from each campus network being advertised to

  other campus network routers automatically.

  What two actions should be taken to accomplish this segregation? (Choose two).

  A. Assign a unique IS-IS NET value for each campus and configure internal campus routers with level 1 routing.
  B. Designate two IS-IS routers from each campus to act as a Layer 1/Layer 2 backbone routers at the edge of each campus network.
  C. Designate two IS-IS routers as BDR routers at the edge of each campus.
  D. Assign similar router IDs to all routers within each campus.
  E. Change the MTU sizes of the interface of each campus network router with a different value
  A. Assign a unique IS-IS NET value for each campus and configure internal campus routers with level 1 routing.
  B. Designate two IS-IS routers from each campus to act as a Layer 1/Layer 2 backbone routers at the edge of each campus network.

• Question 214:

  An office has requested to set up a backup link to the internet. Which routing protocol helps to achieve multihoming with two different ISPs?

  A. iBGP
  B. IS-IS
  C. eBGP
  D. EIGRP
  C. eBGP

• Question 215:

  Which desing tecnology allows two cisco catalyst chassis to use SSO and NSF to provide nonstop communication even if one of the menber chasis fails?

  A. Auto chassis detect
  B. VSS
  C. VPc
  D. Peer Gateway
  B. VSS

• Question 216:

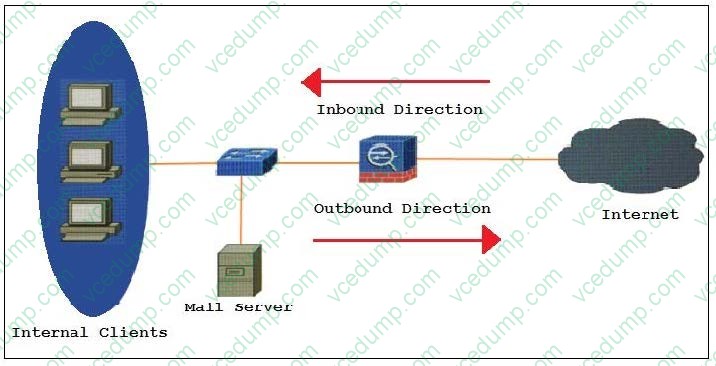

  Refer to the exhibit.



  An engineer is designing a new firewall for an organization and must provision Network Address Translation. This new firewall must support basic Internet access for the organization as well as provide inbound connectivity

  to the mail server. The infrastructure has only one public IP address available for use on the new firewall.

  Which two forms of NAT must be configured? (Choose two.)

  A. static NAT for the inbound traffic on port 25
  B. dynamic NAT for the inbound traffic on port 25
  C. dynamic NAT for the outbound traffic
  D. NAT overloading for the outbound traffic
  E. NAT overloading for the inbound traffic on port 25
  A. static NAT for the inbound traffic on port 25
  D. NAT overloading for the outbound traffic

• Question 217:

  A network consultant is designing an Internet Edge solution and is providing the details around the flows supporting a local Internet Proxy. How is on-premises web filtering supported?

  A. A cisco ASA uses an IPS module to inspect HTTP and HTTPS traffic.
  B. A Cisco ASA redirects HTTP and HTTPS traffic to the WSA using WCCP.
  C. A Cisco ASA connects to the web security appliance via TLS to monitor HTTP and HTTPS traffic.
  D. A Cisco ASA redirects HTTP and HTTPS traffic to CWS with a Web Security Connector.
  B. A Cisco ASA redirects HTTP and HTTPS traffic to the WSA using WCCP.

• Question 218:

  The Cisco Nexus 1000V is intended to address which disadvantage of the VMware vSphere solution?

  A. Inability to deploy new functional servers without requiring physical changes on the network
  B. Complexity added by the requirement for an ESX host for each virtual machine
  C. Network administrators lack control of the access layer of the network
  D. To increase the number of physical infrastructure and the virtual machines that can be managed
  C. Network administrators lack control of the access layer of the network

• Question 219:

  HSRP is running Bet SW A and Dist SW B. Which two links do the switches use to transmit HSRP mess? choose two

  A. core Switch A, port g2/1 to distr switch A, port g3/1
  B. distr Switch A, port g5/1 to distr swit B, port g5/2
  C. Core Switch A, por g1/1 tp core swit B, port g1/2
  D. Core Switch B, port g2/2 to distr switch b, port g3/2
  E. Distr Switch A, port g4/1 to acc swi, port g1/0/1
  F. Distri Switch B, port g4/2 to acc switch, port g2/0/1
  E. Distr Switch A, port g4/1 to acc swi, port g1/0/1
  F. Distri Switch B, port g4/2 to acc switch, port g2/0/1

• Question 220:

  What are the two main elements used by RBAC to provide secure access within an Enterprise? (Choose two.)

  A. User privileges
  B. User roles
  C. User profile
  D. User locales
  E. User domains
  A. User privileges
  B. User roles
