Cisco 300-165 Online Practice Questions and Exam Preparation

Cisco 300-165 Online Questions & Answers

• Question 101:

  Which three selections represent implementations of Cisco VN-Link technology? (Choose three.)

  A. Cisco Nexus 1000V
  B. Cisco Nexus 2000 FEX
  C. Cisco VM-FEX
  D. VMware PTS
  E. vMotion
  A. Cisco Nexus 1000V
  C. Cisco VM-FEX
  D. VMware PTS

  ---

  The VM is powered on and resides on the ESX Host 1 with all the information stored on the shared storage. The VM was connected to the PODy (where y is the number of your POD) PTS VDS by associating it to port group VLAN61 that was

  created on the Cisco Nexus 5548 device. The VM has been connected to the vPC system automatically using a VN-Link in the hardware in PTS mode or in VM-FEX mode.

  The VEM bits are used in PTS mode to connect the VM VNIC to the VMNIC interface.

  In this case, the VMNIC interface is not a real VMNIC but a dynamic VNIC that is presented as an interface to the ESX OS. The dynamic VNIC is enabled when the Cisco UCS VIC creates and configures the VNIC parameters inherited from

  port group VLAN61.

• Question 102:

  You plant to configure a SAN zone set. Which two facts should you consider before you configure the SAN zone set? (Choose two.)

  A. Only one SAN zone set can be active per VSAN.
  B. VSANs can be activated by using enhanced zoning.
  C. One SAN zone can be the member of only one zone set.
  D. A SAN zone set must be activated manually on all of the fabric nodes.
  E. A SAN zone set consists of one or more SAN zones.
  A. Only one SAN zone set can be active per VSAN.
  B. VSANs can be activated by using enhanced zoning.

• Question 103:

  Which technology facilitates a nondisruptive upgrade on a Cisco Nexus 5000 Series Switch?

  A. VDC
  B. VSS
  C. ITD
  D. vPC
  D. vPC

• Question 104:

  Which command should you run to enforce SNMP message encryption for all SNMPv3 communications?

  A. snmp-server globalEnforceAuth
  B. snmp-server user Admin enforcePriv
  C. snmp-server globalEnforcePriv
  D. snmp-server user Admin enforceAuth
  C. snmp-server globalEnforcePriv

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/5_x/nx-os/system_management/configuration/guide/sm_nx_os_cg/sm_9snmp.pdf

• Question 105:

  Which statement about a configuration that uses OSPFv3 multiarea adjacency is true?

  A. A switch can support more than one address family by using point-to-multipoint
  B. A switch can operate in more than one area by using subinterfaces
  C. Multiple VRFs can operate in different areas
  D. The link on a primary interface can be in more than one area
  D. The link on a primary interface can be in more than one area

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/6-x/unicast/configuration/guide/l3_cli_nxos/l3_ospfv3.pdf page 6-7

• Question 106:



  Refer to the exhibit. Which option is the result of the command?

  A. A file named LOGFILES is created on a remote server.
  B. A file named LOGFILES is created with the default logging level.
  C. A file named LOGFILES is created and is applied to all VDCs.
  D. A file named LOGFILES is created and logs all severity levels.
  B. A file named LOGFILES is created with the default logging level.

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/configuration/guide/cli/CLIConfigurationGuide/sm_syslog.html

• Question 107:

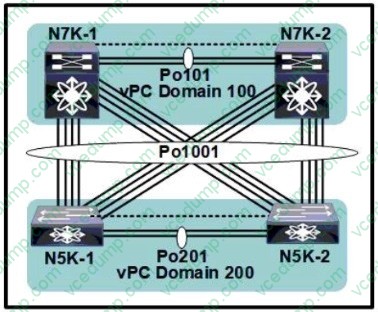

  Refer to the exhibit.



  You must ensure that the vPC Domain 100 controls the LACP Po1001 link. Which feature do you configure?

  A. peer switch
  B. role priority
  C. system priority
  D. peer gateway
  C. system priority

• Question 108:

  Which technology relies on STP as a failsafe mechanism?

  A. FabricPath
  B. MPLS
  C. VXLAN
  D. vPC
  D. vPC

  ---

  vPC technology allows to build a loop free topology by levering port-channel from access device to vPC domain. A port-channel is seen as a logical link from STP standpoint so vPC domain with vPC-attached access device globally form a star topology at L2 (there is no STP blocked ports in this type of topology). For that case, STP is used as a fail-safe mechanism to protect any network loop caused by human error (like plugging a loopback cable across the 2 vPC peer device). Reference: https://www.cisco.com/c/dam/en/us/td/docs/switches/datacenter/sw/design/vpc_design/vpc_best_practices_design_guide.pdf

• Question 109:

  What is the purpose of the resequence command for ACLs?

  A. to rearrange the order of the access lists in the running configuration
  B. to assign new sequence numbers to the rules in an ACL
  C. to refresh ACL programming in ASICs to apply the ACL changes
  D. to rearrange ACL entries.
  B. to assign new sequence numbers to the rules in an ACL

• Question 110:

  Which item represents the process that allows FCoE multihop using T11 standard FC-BB-5?

  A. distributed FCF
  B. FIP proxy
  C. N Port proxy
  D. FIP snooping
  D. FIP snooping

  ---

  FIP snooping is used in multi-hop FCoE environments. FIP snooping is a frame inspection method that can be used by FIP snooping capable DCB devices to monitor FIP frames and apply policies based on the information in those frames.

  This allows for:

  Enhanced FCoE security (Prevents FCoE MAC spoofing.)

  Creates FC point-to-point links within the Ethernet LAN

  Allows auto-configuration of ACLs based on name server information read in the FIP frames

  http://www.definethecloud.net/fcoe-initialization-protocol-fip-deep-dive/
