Cisco 300-115 Online Practice Questions and Exam Preparation

Cisco 300-115 Online Questions & Answers

• Question 531:

  A question about security policy on a per-user basis.

  A. network
  B. exec
  C. auto-proxy
  D. command
  C. auto-proxy

• Question 532:

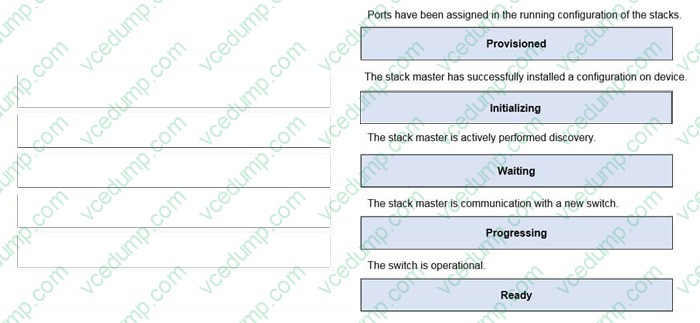

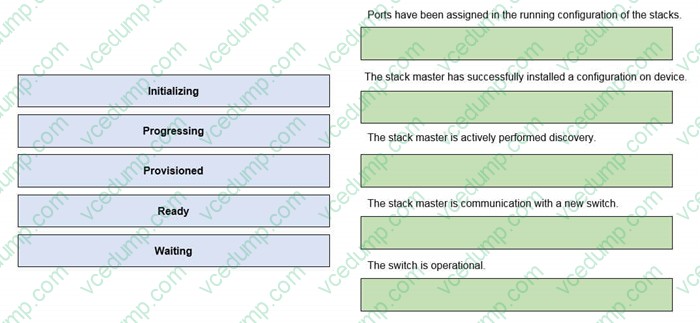

  Drag and Drop

  Select and Place:





• Question 533:

  Under which two circumstances does a stack master lose its role?

  A. When the stack master is reset
  B. When the priority value of a stack member is changed to a higher value
  C. When a switch with a higher priority is added to the stack
  D. When a stack member fails
  E. When switch stack resets
  B. When the priority value of a stack member is changed to a higher value
  E. When switch stack resets

• Question 534:

  Which HSRP feature allows a router to take over as the active router when it is configured with a higher priority?

  A. use-BIA
  B. HSRP groups
  C. tracking
  D. preemption
  D. preemption

• Question 535:

  Which three feature advantages are supported in VSS? (Choose three.)

  A. It supports single point of management, IP address and routing instance for virtual switches
  B. It supports Multichassis EtherChannel
  C. It supports flexible deployment options
  D. It support Singlechassis EtherChannel.
  E. It supports multiple point of management, MAC address and routing instance for virtual switches.
  A. It supports single point of management, IP address and routing instance for virtual switches
  B. It supports Multichassis EtherChannel
  C. It supports flexible deployment options

• Question 536:

  Which two statements about VTP are true? (Choose two.)

  A. Advertisements are sent periodically from trunk port to a multicast address.
  B. When you update from VTP version 1 to VTP version 2, the switch must be reloaded.
  C. VTP pruning can be configured on extended-range VLANs only.
  D. A configuration revision number is included in VTP packets.
  E. VTP pruning can be configured on all VLANs.
  A. Advertisements are sent periodically from trunk port to a multicast address.
  D. A configuration revision number is included in VTP packets.

• Question 537:

  You have been asked to install and configure a new switch in a customer network. Use the console access to the existing and new switches to configure and verify correct device configuration.





  Examine the VTP configuration. You are required to configure private VLANs for a new server deployment connecting to the SW4 switch. Which of the following configuration steps will allow creating private VLANs?

  A. Disable VTP pruning on SW1 only
  B. Disable VTP pruning on SW2 only
  C. Disable VTP pruning on SW4 only
  D. Disable VTP pruning on SW2, SW4 and New_Switch
  E. Disable VTP pruning on New_Switch and SW4 only.
  C. Disable VTP pruning on SW4 only

  ---

  To create private VLANs, you will need to only disable pruning on the switch that contains the private VLANs. In this case, only SW4 will connect to servers in a private VLAN.

• Question 538:

  Your manager asked you to make every port on your switch bypass the normal spanning-tree timers which includes your uplink to other switches. What two commands can you apply on the interfaces? (Choose two.)

  A. spanning-tree portfast
  B. spanning-tree portfast default
  C. spanning-tree portfast access
  D. spanning-tree portfast trunk
  A. spanning-tree portfast
  D. spanning-tree portfast trunk

• Question 539:

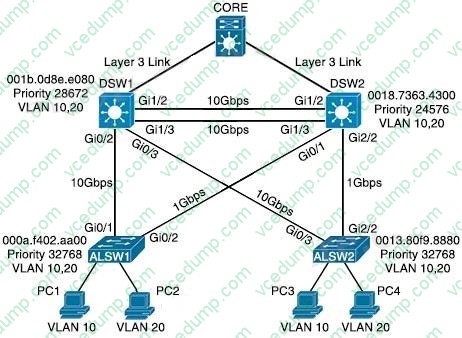

  Refer to the exhibit.



  Which path does PC1 take to reach DSW1?

  A. PC1 goes from ALSW1 to DSW2 to reach DSW1.
  B. PC1 goes from ALSW1 to DSW1
  C. PC1 goes from ALSW1 to ALSW2 to reach DSW1.
  D. PC1 goes from ALSW1 to DSW2 to ALSW2 to reach DSW1
  E. PC1 goes from ALSW1 to DSW2 to CORE to reach DSW1.
  A. PC1 goes from ALSW1 to DSW2 to reach DSW1.

• Question 540:

  After reviewing UDLD status on switch ports, an engineer notices that the." Which statement describes what this indicates about the status of the port?

  A. The port is fully operational and no known issues are detected.
  B. The bidirectional status of "unknown" indicates that the port will go into the disabled state because it stopped receiving UDLD packets from its neighbor.
  C. UDLD moved into aggressive mode after inconsistent acknowledgements were detected.
  D. The UDLD port is placed in the "unknown" state for 5 seconds until the next UDLD packet is received on the interface.
  A. The port is fully operational and no known issues are detected.

  ---

  By default, UDLD is disabled on all interfaces. We can enable UDLD globally on the device, or individually on specific interfaces with the command udld port. This enables UDLD in normal mode. It would be prohibitively difficult to coordinate

  the configuration of UDLD on both ends of a link at the same time, so when UDLD is first enabled and does not detect a neighbor the link state is considered unknown, which is not necessarily an error condition. The port will remain

  operational during this time. When UDLD is finally enabled on the other end, the status will transition to bidirectional.

  Reference: http://packetlife.net/blog/2011/mar/7/udld/
