Cisco 300-080 Online Questions & Answers

• Question 101:

  An organization is setting up integration of its Cisco Unified Communications Manager (CUCM) cluster to a newly deployed Cisco VCS cluster. The requirement is to allow the CUCM registered endpoints to be able to call Cisco VCS registered video endpoints and send a call from a Cisco IP phone to the Cisco VCS whenever a Cisco IP phone dials any number with the prefix 555 followed by an extension. Which CUCM construct must be configured to fulfil this requirement?

  A. Route Pattern
  B. SIP Route Pattern
  C. SIP Dial Rules
  D. Translation Pattern
  A. Route Pattern

• Question 102:

  You enabled Cisco Unified Mobile Connect for a user, but the user is unable to send calls to a mobile phone from the desk phone. What do you do to resolve the issue?

  A. Restart the phone, and verify that the key is present.
  B. Under User Management > User, make sure that the Mobility option is selected.
  C. Make sure that the phone is subscribed to Extension Mobility.
  D. Add the mobility key to the softkey template that the phone is currently using.
  D. Add the mobility key to the softkey template that the phone is currently using.

• Question 103:

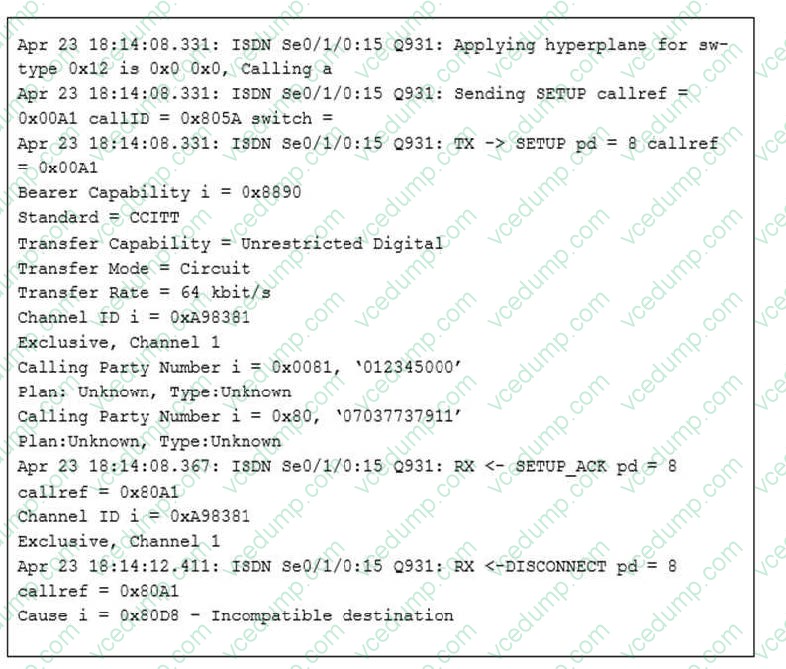

  Refer to the exhibit. Audio calls from a CSF device fail. Which command set likely resolves the issue?



  A. configure terminal voice-port 0/1/0:15 output attenuation -4
  B. configure terminal controller e1 0/1/0 bearer-cap speech
  C. configure terminal interface serial 0/1/0:15 output attenuation -4
  D. configure terminal voice-port 0/1/0:15 bearer-cap speech
  B. configure terminal controller e1 0/1/0 bearer-cap speech

• Question 104:

  Refer to the exhibit. John Johnson is trying to leach Jane Smith at net Cisco Untied IP phone by dialing net directory URI, but the call fails. What are two possible reasons for the call failure? (Choose two)



  A. The CSS that is used by John's Cisco Jabber device does not contain the partition to teach Jane's endpoint.
  B. The dialed directory URI and the provisioned directory URI do not match.
  C. Cisco Unified Communications Manager is blocking the call.
  D. Cisco Unified Communions Manager matched the host portion of Jane's URI to a SIP trunk and fouled the call to another cluster.
  E. The directory URI should not be entered under the user configuration page Instead, the directory URI should be entered directly into Jane's line configuration page.
  F. Jane's endpoint does not support blended addressing.
  E. The directory URI should not be entered under the user configuration page Instead, the directory URI should be entered directly into Jane's line configuration page.
  F. Jane's endpoint does not support blended addressing.

• Question 105:

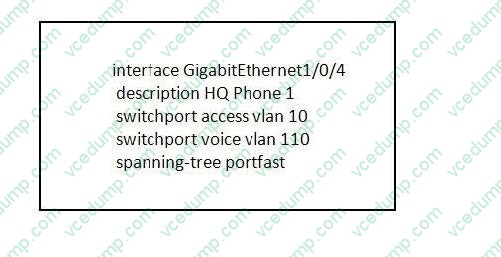

  Refer to the exhibit. An IP phone that is connected through a Cisco Catalyst 3750 Series Switch is failing to register with Cisco Unified Communications Manager. When the user presses the settings button on the phone, the Operational VLAN ID shows a blank entry. What is the most likely cause for this issue?



  A. The switch may not be supplying inline power.
  B. The spanning tree portfast command needs to be removed.
  C. The trunk encapsulation is missing. The trunk must be configured for dot1.Q.
  D. Cisco Discovery Protocol is disabled on the switch.
  E. The Operational VLAN ID of the phone always shows as blank. The Admin. VLAN ID should be 110.
  D. Cisco Discovery Protocol is disabled on the switch.

• Question 106:

  When you are dialing from an internally registered device on Cisco VCS, in which order are the options processed to determine the call routing?

  A. CPL, Transforms, FindMe, Search Rules
  B. CPL, FindMe, Transforms, Search Rules
  C. Transforms, CPL, FIndMe, Search Rules
  D. Search Rules, Transforms, CPL, FIndMe E. FindMe, CPL, Transforms, Search Rules
  C. Transforms, CPL, FIndMe, Search Rules

• Question 107:

  An engineer is configuring an IOS MTP on a Cisco 2911 Integrated Services Router and Cisco Unified Communications Manager (CUCM).

  dspfarm profile 20 mtp codec g711ulaw maximum sessions software 10 associate application SCCP shutdown

  The MTP will not register with CUCM. Based on the configuration, what is the cause of the problem?

  A. The MTP type is not compatible with CUCM.
  B. The dspfarm profile is in a down state.
  C. The MTP type is incorrect.
  D. The MTP is not enabled on CUCM.
  B. The dspfarm profile is in a down state.

• Question 108:

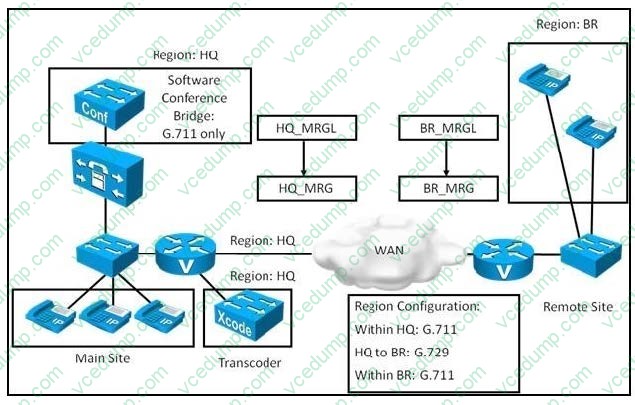

  Refer to the exhibit. When a call between two HQ users was being conferenced with a remote user at the BR site, the conference failed. Which configuration would be needed to solve the problem?



  A. The BR_MRG must contain the transcoder device. The BR_MRGL must be assigned to the BR phones.
  B. The HQ_MRG must contain the transcoder device. The HQ_MRGL must be assigned to the HQ phones.
  C. A transcoder should be configured at the remote site and assigned to all remote phones through the BR_MRGL.
  D. The HQ_MRG must contain the transcoder device. The HQ_MRGL must be assigned to the software conference bridge.
  E. Enable the software conference bridge to support G.711 and G.729 codecs in Cisco Unified Communications Manager service parameters.
  D. The HQ_MRG must contain the transcoder device. The HQ_MRGL must be assigned to the software conference bridge.

• Question 109:

  In a Cisco UCM multisite WAN with centralized call-processing deployment model, what redundancy feature should be configured on remote site routers to provide basic IP telephony services in the event of a WAN outage?

  A. AAR
  B. SRST
  C. CAC
  D. V3PN
  B. SRST

• Question 110:

  An organization is setting up integration of its CUCM cluster to a newly deployed VCS cluster. THe requirement is to allow the CUCM registered endpoints to be able to call VCS registered video endpoints and send a call from IP phone to

  VCS whenever an IP phone dials any number with the prefix 555 followed by an extension.

  Which CUCM construct must be configured to fulfill this req?

  A. SIP Route Pattern
  B. Local Route Group
  C. Translation Pattern
  D. SIP Dial Rules
  E. Route Pattern
  A. SIP Route Pattern
