Cisco 200-355 Online Practice Questions and Exam Preparation

Cisco 200-355 Online Questions & Answers

• Question 541:

  Which two are considered as characteristics of the original 802.11 protocol? (Choose two.)

  A. The most common deployment is three non-overlapping channels that are 20 MHz wide.
  B. Defined FHSS and OFDM as possible methods for modulation.
  C. The most common deployment is 6 non-overlapping channels that are 20 MHz wide.
  D. Designed to operate in the 5 GHz ISM frequency spectrum.
  E. Defined DSSS and FHSS as possible methods for modulation.
  A. The most common deployment is three non-overlapping channels that are 20 MHz wide.
  B. Defined FHSS and OFDM as possible methods for modulation.

• Question 542:

  After installing a Cisco 5508 Wireless Controller using the default settings, how often will the RRM update occur?

  A. 30 seconds
  B. 60 seconds
  C. 300 seconds
  D. 600 seconds
  E. 3600 seconds
  F. 7200 seconds
  D. 600 seconds

• Question 543:

  Which number is the expected RSSI value for a client card with a 3 dBi antenna and a received signal value of -9 dB?

  A. -12 dB
  B. -6 dB
  C. 6 dB
  D. 12 dB
  B. -6 dB

• Question 544:

  You have created a new WLAN. However, no clients can connect and the SSID does not appear on the available wireless networks. Which cause of the issue is true?

  A. The WLAN is disabled
  B. The WLAN has the wrong NAS ID
  C. The WLAN controller needs a restart for the new configuration to take effect
  D. The WLAN is mapped to an incorrect interface or interface group
  A. The WLAN is disabled

• Question 545:

  Which CAPWAP AP management-access method is available as the default setting?

  A. the console port and SSH
  B. only the console port
  C. SSH only
  D. the console port, SSH, and HTTPS
  B. only the console port

  ---

  After an access point joins the controller, the access point enables console port security only, and you are prompted for your username and password whenever you log into the access point's console port. When you log in, you are in non-privileged mode, and you must enter the enable password in order to use the privileged mode.

  Reference: https://www.cisco.com/c/en/us/td/docs/wireless/controller/7-4/configuration/guides/consolidated/b_cg74_CONSOLIDATED/b_cg74_CONSOLIDATED_chapter_01101011.html

• Question 546:

  An engineer assists a user in configuring an Android device for authentication to an IEEE 802.1x EAP WLAN with PEAPv1. The Phase 2 authentication should be configured as which option?

  A. LEAP
  B. MSCHAPv2
  C. TLS
  D. TTLS
  B. MSCHAPv2

• Question 547:

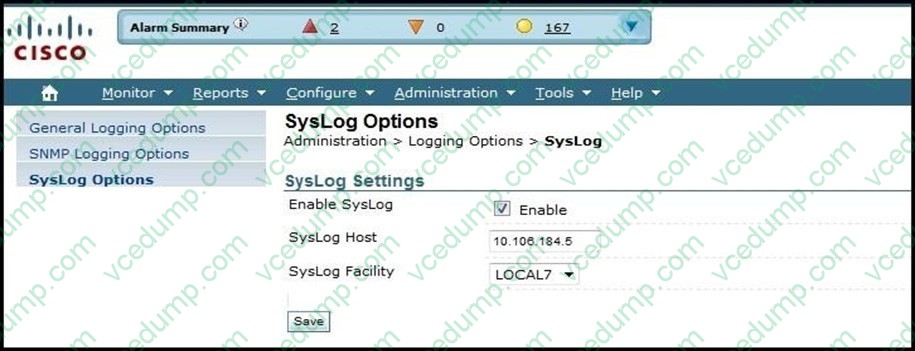

  Refer to the exhibit.



  Which syslog facility option is shown?

  A. an information field, which is added to every message that comes from the WLC
  B. a security feature, which is set on the syslog server
  C. the type of syslog server
  D. the Cisco WLC identifier for this syslog server
  A. an information field, which is added to every message that comes from the WLC

  ---

  A facility level is used to specify what type of program is logging a message. This lets the configuration file specify that messages from different facilities will be handled differently. Local7 maps to Facility level 23, which is local so the WLC will add this information to syslog messages when sending to the syslog server.

• Question 548:

  A customer is deploying the Cisco 5508 Wireless Controller in a unified wireless solution. Which command must be configured on the neighboring switch port if the management interface on the WLC is configured to send untagged traffic to ensure that management traffic utilizes VLAN 10?

  A. switchport trunk native vlan 10
  B. spanning-tree portfast
  C. switchport access vlan 10
  D. switchport trunk allowed vlan 10
  E. channel-group 10
  A. switchport trunk native vlan 10

• Question 549:

  From which type of diagnostic equipment must you request screenshots and recordings of possible sources of interference when you have a survey vendor perform a site survey?

  A. data link circuit identifier
  B. access point
  C. virtual path virtual circuit
  D. spectrum analysis software
  D. spectrum analysis software

• Question 550:

  What is the deployment that requires least amount of hardware installed on the site?

  A. Cloud
  B. Converged
  C. Centralized
  A. Cloud
