Cisco 200-355 Online Practice Questions and Exam Preparation

Cisco 200-355 Online Questions & Answers

• Question 191:

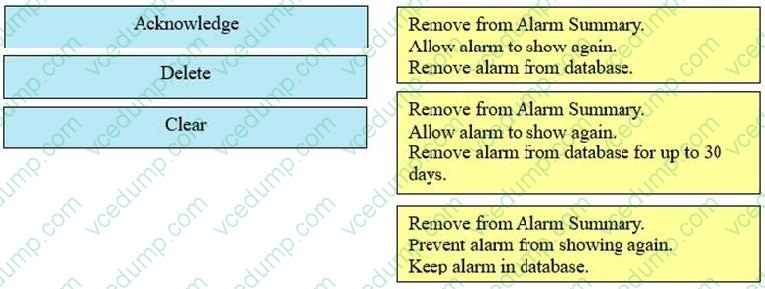

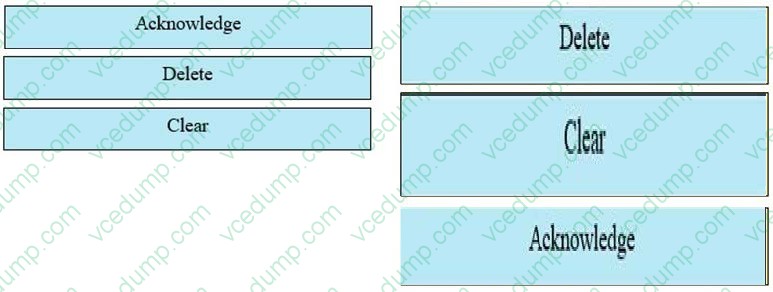

  When working with alarms in Cisco WCS version 7.0, several actions can be performed on respective alarms. Common actions include “Assign to me,” “Unassign,” or “Email Notification.” However, three other action types provide similar, but important differences. Drag the alarm action names from the left and drop them on the correct corresponding definitions on the right.

  Select and Place:





• Question 192:

  When using multiple SSIDs on a FlexConnect AP in local switching mode, how does the traffic of each SSID reach the 802.3 network?

  A. provide routing between them at the core so that the SSIDs can reach the internet
  B. configure 802.1q trunking on the Ethernet switch port that is connected to the AP
  C. configure the SSIDs on the WLC and it will regulate the traffic based on traffic type
  D. configure ACLs at the switch port that will allow all desired SSIDs to pass traffic
  B. configure 802.1q trunking on the Ethernet switch port that is connected to the AP

• Question 193:

  What three nonoverlapping channels on the ETSI 2.4 GHz band can an engineer allocate? (Choose three.)

  A. 1
  B. 3
  C. 6
  D. 4
  E. 10
  F. 12
  A. 1
  C. 6
  F. 12

• Question 194:

  An installation uses a 21dBi parabolic dish. It is connected to the 802.11n radio via low loss antenna coax rated at 4dB loss/100 feet. After testing, it has been determined that 2mW of power will be lost in the cable. An EIRP producing 200mW is desired. What should the transmit power be set to?

  A. 8mW
  B. 3dBm
  C. 3.16mW
  D. 5mW
  C. 3.16mW

• Question 195:

  A network engineer is connected via wireless to a Cisco AireOS WLC and wants to download the configuration but is unable to do so. Which change will correct the issue?

  A. enable management via wireless
  B. connect via wired network
  C. enable Telnet
  D. enable WebAuth SecureWeb
  E. connect on 5-GHz SSID
  B. connect via wired network

• Question 196:

  How many RADIUS servers can be configured globally and per WLAN on a Cisco WLC version 7.0?

  A. 7 global; additional 1 per WLAN
  B. 7 global; additional 3 per WLAN
  C. 17 global; additional 1 per WLAN
  D. 17 global; additional 3 per WLAN
  E. 7 global; reuse of up to 1 maximum per WLAN
  F. 17 global; reuse of up to 1 maximum per WLAN
  G. 17 global; reuse of up to 3 maximum per WLAN
  G. 17 global; reuse of up to 3 maximum per WLAN

  ---

  You can configure up to 17 RADIUS authentication and accounting servers each.

  For example, you may want to have one central RADIUS authentication server but several RADIUS accounting servers in different regions. If you configure multiple servers of the same type and the first one fails or becomes unreachable, the

  controller automatically tries the second one, then the third one if necessary, and so on.

  http://www.cisco.com/c/en/us/td/docs/wireless/controller/7-0/configuration/guide/c70/c70sol.html

• Question 197:

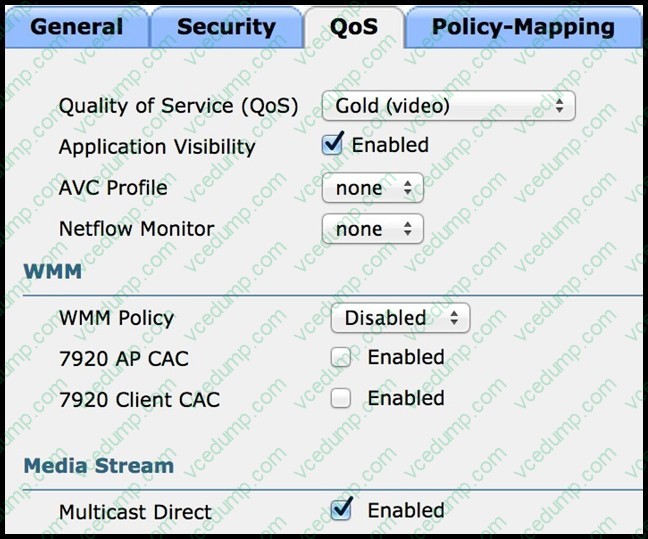

  Refer to the exhibit.



  A help desk ticket has been entered for the wireless infrastructure. A wireless client is not able to connect at IEEE 802.11n rates. Which option allows for connectivity?

  A. Set WMM mode to Optional or Required.
  B. Set Quality of Service (QoS) to Silver.
  C. Set Quality of Service (QoS) to Platinum.
  D. Set 7920 AP CAC to Enabled.
  A. Set WMM mode to Optional or Required.

• Question 198:

  An engineer recently removed a WLC from a WCS, but the APs associated to the WLC are still showing on the WCS. What is a reason for this?

  A. The associated APs must be removed manually.
  B. The APs must be removed from the WCS map.
  C. The hold-down timer must expire before the APs will be removed.
  D. The APs must be audited.
  A. The associated APs must be removed manually.

• Question 199:

  An AP was reset while working on the correct association to a Cisco WCS version 7.0. Which item was cleared during the reset?

  A. static IP address
  B. the location ID of the AP
  C. WLC primary, secondary, tertiary
  D. AP name
  E. certificate
  F. Nothing was cleared.
  F. Nothing was cleared.

  ---

  Reset --Sets the table to the default display so nothing will be cleared.

• Question 200:

  Which protocol must be negotiated for clients to obtain IP address configuration?

  A. DNS
  B. RADIUS
  C. NTP
  D. DHCP
  D. DHCP
