Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 681:

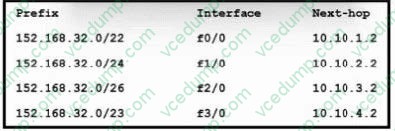

  Refer to the exhibit.



  Which next hop is used to route packets to the application server at 152.168.32.85?

  A. 10.10.1.2
  B. 10.10.2.2
  C. 10.10.3.2
  D. 10.10.4.2
  B. 10.10.2.2

• Question 682:

  DRAG DROP

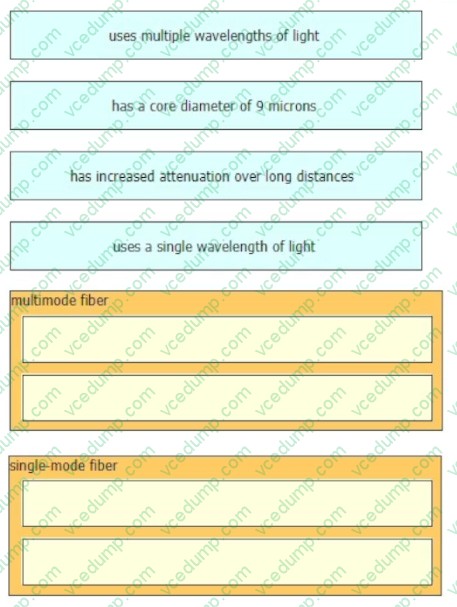

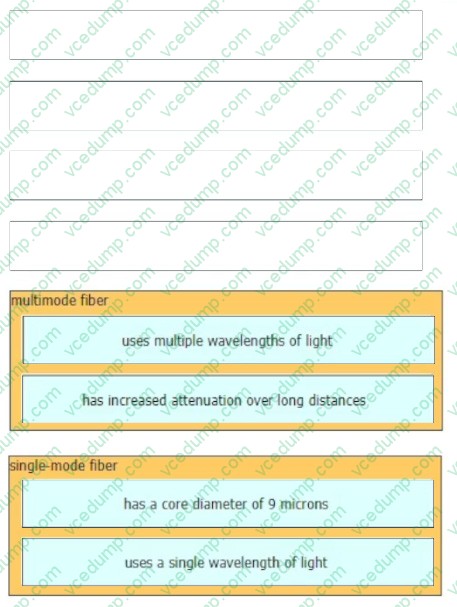

  Drag and drop the characteristic from the left onto the cable type on the right.

  Select and Place:





• Question 683:

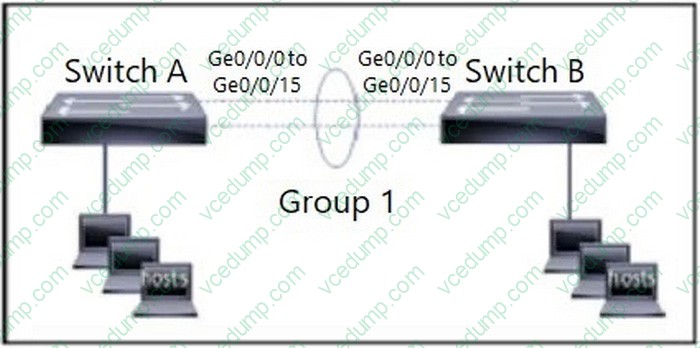

  Refer to the exhibit.



  The LACP EtherChannel is configured, and the last change is to modify the interfaces on SwitchA to respond to packets received, but not to initiate negotiation. The interface range gigabitethernet0/0/0-15 command is entered. What must be configured next?

  A. SwitchA(config-if-range)#channel-group 1 mode auto
  B. SwitchA(config-if-range)#channel-group 1 mode active
  C. SwitchA(config-if-range)#channel-group 1 mode desirable
  D. SwitchA(config-if-range)#channel-group 1 mode passive
  D. SwitchA(config-if-range)#channel-group 1 mode passive

• Question 684:

  Which two values or settings must be entered when configuring a new WLAN in the Cisco Wireless LAN Controller GUI? (Choose two.)

  A. QoS settings
  B. IP address of one or more access points
  C. SSID
  D. profile name
  E. management interface settings
  C. SSID
  D. profile name

  ---

  SSID and Profile Name would be used for identification and would be important when creating a new WLAN

• Question 685:

  How does CAPWAP communicate between an access point in local mode and a WLC?

  A. The access point must not be connected to the wired network, as it would create a loop
  B. The access point must be connected to the same switch as the WLC
  C. The access point must directly connect to the WLC using a copper cable
  D. The access point has the ability to link to any switch in the network, assuming connectivity to the WLC
  D. The access point has the ability to link to any switch in the network, assuming connectivity to the WLC

  ---

  The access point has the ability to link to any switch in the network, assuming connectivity to the WLC. The AP can be connected to any switch in the network, as long as the switch has connectivity to the WLC. The AP and the WLC exchange CAPWAP messages over IP, using UDP port 5246 or 5247, depending on whether the messages are encrypted.

• Question 686:

  Which JSON data type is an unordered set of attribute- value pairs?

  A. array
  B. string
  C. object
  D. Boolean
  C. object

  ---

  JSON (JavaScript Object Notation) is an open standard file format and data interchange format that uses human-readable text to store and transmit data objects consisting of attribute-value pairs and arrays (or other serializable values).

• Question 687:

  An engineer must configure an OSPF neighbor relationship between router R1 and R3 The authentication configuration has been configured and the connecting interfaces are in the same 192.168 1.0/30 sublet. What are the next two steps to complete the configuration? (Choose two.)

  A. configure the hello and dead timers to match on both sides
  B. configure the same process ID for the router OSPF process
  C. configure the same router ID on both routing processes
  D. Configure the interfaces as OSPF active on both sides.
  E. configure both interfaces with the same area ID
  A. configure the hello and dead timers to match on both sides
  E. configure both interfaces with the same area ID

  ---

  Enabling OSPF SUMMARY STEPS

  1. enable

  2. configure terminal

  3. router ospf process-id

  4. network ip-address wildcard-mask area area-id

  5. end

  https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_ospf/configuration/xe-16/iro-xe-16-book/iro-cfg.html#GUID-51A06D7A-7099-453C-A9FD-34CE45080796

• Question 688:

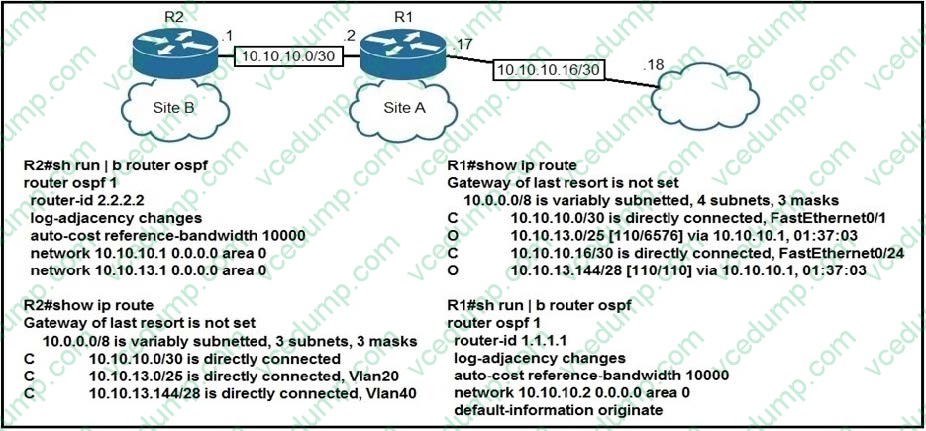

  Refer to the exhibit.



  The default-information originate command is configured under the R1 OSPF configuration. After testing, workstations on VLAN 20 at Site B cannot reach a DNS server on the Internet. Which action corrects the configuration issue?

  A. Add the default-information originate command on R2.
  B. Add the always keyword to the default-information originate command on R1.
  C. Configure the ip route 0.0.0.0 0.0.0.0 10.10.10.18 command on R1.
  D. Configure the ip route 0.0.0.0 0.0.0.0 10.10.10.2 command on R2.
  C. Configure the ip route 0.0.0.0 0.0.0.0 10.10.10.18 command on R1.

  ---

  The default-information originate command advertises a default route into a normal area, provided the advertising router already has a default route. But in the routing table of R1 we don't see such a default route. Therefore we have to configure one.

• Question 689:

  Which command must be entered when a device is configured as an NTP server?

  A. ntp peer
  B. ntp master
  C. ntp authenticate
  D. ntp server
  B. ntp master

  ---

  ntp master {stratum-level}: NTP server mode--the device acts only as an NTP server, and not as an NTP client. The device gets its time information from the internal clock on the device.

  ntp server {address | hostname}: NTP client/server mode--the device acts as both client and server. First, it acts as an NTP client, to synchronize time with a server. Once synchronized, the device can then act as an NTP server, to supply time to other NTP clients.

  Reference : Wendell Odom CCNA vol 2

• Question 690:

  When deploying syslog, which severity level logs informational message?

  B. 2
  C. 4
  D. 6
  D. 6

  ---

  https://en.wikipedia.org/wiki/Syslog
