Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 51:

  What is a DHCP client?

  A. a workstation that requests a domain name associated with its IP address
  B. a host that is configured to request an IP address automatically
  C. a server that dynamically assigns IP addresses to hosts.
  D. a router that statically assigns IP addresses to hosts.
  B. a host that is configured to request an IP address automatically

• Question 52:

  While examining excessive traffic on the network, it is noted that all incoming packets on an interface appear to be allowed even though an IPv4 ACL is applied to the interface. Which two misconfigurations cause this behavior? (Choose two.)

  A. The ACL is empty
  B. A matching permit statement is too broadly defined
  C. The packets fail to match any permit statement
  D. A matching deny statement is too high in the access list
  E. A matching permit statement is too high in the access list
  B. A matching permit statement is too broadly defined
  E. A matching permit statement is too high in the access list

  ---

  Traffic might be permitted if the permit statement is too braid, meaning that you are allowing more traffic than what is specifically needed, or if the matching permit statement is placed ahead of the deny traffic. Routers will look at traffic and compare it to the ACL and once a match is found, the router acts accordingly to that rule.

  https://community.cisco.com/t5/routing/apply-empty-acl-what-happens/td-p/740473

• Question 53:

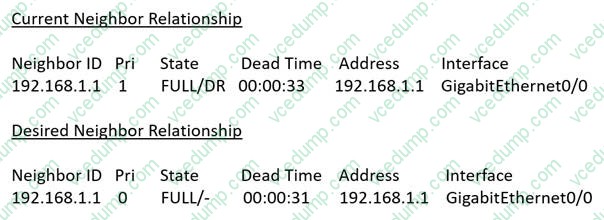

  Refer to the exhibit. How much OSPF be configured on the GigabitEthernet0/0 interface of the neighbor device to achieve the destined neighbor relationship?



  A. Router(config)#interface GigabitEthernet 0/0 Router(config-if)#ip ospf cost 5
  B. Router(config)#interface GigabitEthernet 0/0 Router(config-if)#ip ospf priority 1
  C. Router(config)#interface GigabitEthernet 0/0 Router(config-if)#ip ospf area 2
  D. Router(config)#interface GigabitEthernet 0/0 Router(config-if)#ip ospf network point-to-point
  D. Router(config)#interface GigabitEthernet 0/0 Router(config-if)#ip ospf network point-to-point

  ---

  point to point no dr/bdr election----- connection ppp/hdlc h10 d40 broadcast use dr/bdr election-----connection eth/FDDI h10 d40

• Question 54:

  DRAG DROP

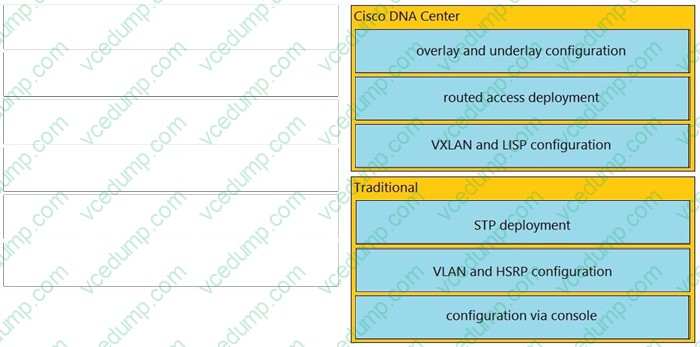

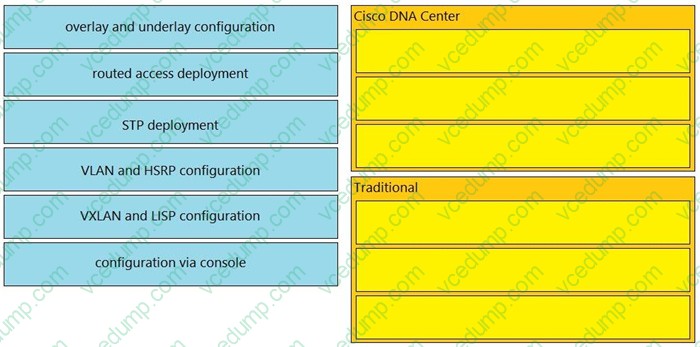

  Drag and drop the use cases of device-management technologies from the left onto the corresponding types on the right.

  Select and Place:





• Question 55:

  CCNA Lab simulation

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary preconfigurations have been applied.

  5. Do not change the enable password or hostname for any device.

  6. Save your configurations to NVRAM before moving to the next item.

  7. Click Next at the bottom of the screen to submit this lab and move to the next question.

  8.

  When Next is clicked the lab closes and cannot be reopened.

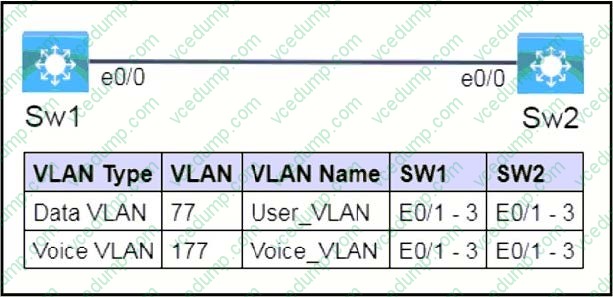

  Topology Tasks



  All physical cabling is in place and verified. Connectivity for the Switches on ports E0/1, E0/2, and E0/3 must be configured and available for voice and data capabilities.

  1.Configure Sw1 and Sw2 with both VLANS, naming them according to the VLAN Name provided in the topology.

  2.Configure the E0/1, E0/2, and E0/3 ports on both switches for both VLANS and ensure that Cisco IP phones and PCs pass traffic.

  3.Configure Sw1 and Sw2 to allow neighbor discovery via the vendor-neutral protocol on e0/0.

  A. Check the Explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the Explanation below

  ---

  Explanation

  Task 1. Configure Sw1 and Sw2 with both VLANS, naming them according to the VLAN Name provided in the topology

  SW-1(config)#vlan 77

  SW-1(config-vlan)#name User_VLAN

  SW-1(config-vlan)#exit

  SW-1(config)#vlan 177

  SW-1(config-vlan)#name Voice_VLAN

  SW-1(config-vlan)#exit

  SW-2(config)#vlan 77

  SW-2(config-vlan)#name User_VLAN

  SW-2(config-vlan)#exit

  SW-2(config)#vlan 177

  SW-2(config-vlan)#name Voice_VLAN

  SW-2(config-vlan)#exit

  Task 2. Configure the E0/1, E0/2, and E0/3 ports on both switches for both VLANS and ensure that Cisco IP phones and PCs pass traffic.

  SW-1(config)#interface range E0/1-3

  SW-1(config-if)#switchport mode access

  SW-1(config-if)#switchport access vlan 77

  SW-1(config-if)#switchport voice vlan 177

  SW-2(config)#interface range E0/1-3

  SW-2(config-if)#switchport mode access

  SW-2(config-if)#switchport access vlan 77

  SW-2(config-if)#switchport voice vlan 177

  Task 3. Configure Sw1 and Sw2 to allow neighbor discovery via the vendor-neutral protocol on e0/0.

  SW-1(config)#lldp run

  SW-2(config)#lldp run

• Question 56:

  Refer to the exhibit.



  A network engineer must configure NETCONF. After creating the configuration, the engineer gets output from the command show line but not from show running-config. Which command completes the configuration?

  A. Device(config)# netconf lock-time 500
  B. Device(config)# netconf max-message 1000
  C. Device(config)# no netconf ssh acl 1
  D. Device(config)# netconf max-sessions 100
  B. Device(config)# netconf max-message 1000

  ---

  Cisco documentation says

  netconf max-message size

  (Optional) Specifies the maximum size, in kilobytes (KB), for the messages received in a NETCONF session.

  The valid range is 1 to 2147483. The default value is infinite.

  To set the maximum size to infinite, use the no netconf max-message command.

• Question 57:

  Which switching feature removes unused MAC addresses from the MAC address table, which allows new MAC addresses to be added?

  A. MAC address aging
  B. MAC move
  C. MAC address auto purge
  D. dynamic MAC address learning
  A. MAC address aging

  ---

  MAC address aging is a switching feature that removes unused MAC addresses from the MAC address table after a certain period of inactivity. This frees up space in the MAC address table, allowing new MAC addresses to be added when new devices are connected to the network. The aging time determines how long a MAC address can remain in the table without any activity before it is considered unused and eligible for removal. This feature helps optimize the usage of MAC address table resources in a switch.

• Question 58:

  Which device operates primarily at Layer 1 of the OSI model?

  A. Switch
  B. Router
  C. Hub
  D. Firewall
  C. Hub

  ---

  A hub operates at the physical layer (Layer 1) of the OSI model. It forwards incoming signals to all ports without examining frames, MAC addresses, or IP information.

• Question 59:

  How does MAC learning function on a switch?

  A. associates the MAC address with the port on which it is received
  B. rewrites the source and destination MAC address
  C. broadcasts frames to all ports without queueing
  D. sends an ARP request to locate unknown destinations
  A. associates the MAC address with the port on which it is received

• Question 60:

  What Is the path for traffic sent from one user workstation to another workstation on a separate switch In a Ihree-lter architecture model?

  A. access - core - distribution - access
  B. access - distribution - distribution - access
  C. access - core - access
  D. access -distribution - core - distribution - access
  D. access -distribution - core - distribution - access

  ---

  Distribution switches normally don't have connections to other distribution layer switches, they only connect to access layer switches and core layer switches. If you're still in doubt, search Google images for "Cisco three tier architecture"
