Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 531:

  SIP-based Call Admission Control must be configured in the Cisco WLC GUI. SIP call-snooping ports are configured. Which two actions must be completed next? (Choose two.)

  A. Set the QoS level to silver or greater for voice traffic.
  B. Configure two different QoS roles for data and voice traffic.
  C. Enable Media Session Snooping on the WLAN.
  D. Set the QoS level to platinum for voice traffic.
  E. Enable traffic shaping for the LAN interface of the WLC.
  C. Enable Media Session Snooping on the WLAN.
  D. Set the QoS level to platinum for voice traffic.

• Question 532:

  DRAG DROP

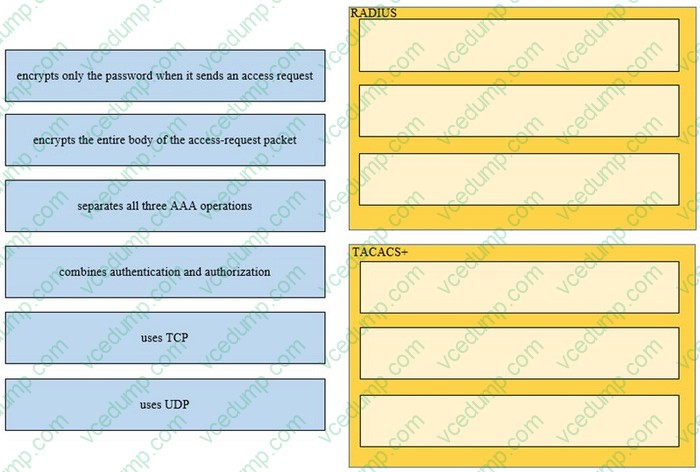

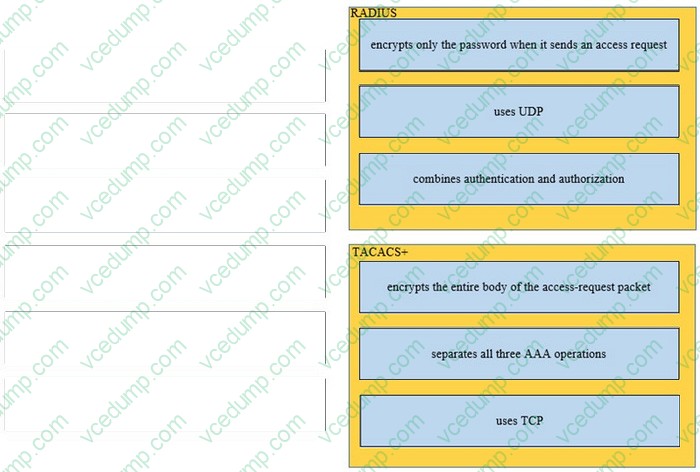

  Drag and drop the functions of AAA supporting protocols from the left onto the protocols on the right.

  Select and Place:





• Question 533:

  When a switch receives a frame for an unknown destination MAC address, how is the frame handled?

  A. broadcast to all ports on the switch
  B. flooded to all ports except the origination port
  C. forwarded to the first available port
  D. inspected and dropped by the switch
  B. flooded to all ports except the origination port

• Question 534:

  Which action must be taken to assign a global unicast IPv6 address on an interface that is derived from the MAC address of that interface?

  A. explicitly assign a link-local address
  B. disable the EUI-64 bit process
  C. enable SLAAC on an interface
  D. configure a stateful DHCPv6 server on the network
  C. enable SLAAC on an interface

  ---

  SLAAC is designed to be a simple, automatic approach to assigning IPv6 addresses. It is defined in RFC4862 and is specifically used to assign only a global unicast IPv6 address, an IPv6 prefix length, and, optionally, a default router.

• Question 535:

  When DHCP is configured on a router, which command must be entered so the default gateway is automatically distributed?

  A. default-router
  B. default-gateway
  C. ip helper-address
  D. dns-server
  A. default-router

• Question 536:

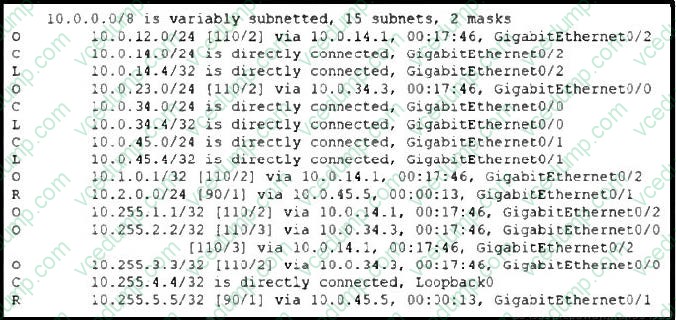

  Refer to the exhibit.



  Which routes are configured with their default administrative distances?

  A. Local
  B. OSPF
  C. EIGRP
  D. RIP
  B. OSPF

• Question 537:

  What is a function of a Next-Generation IPS?

  A. makes forwarding decisions based on learned MAC addresses
  B. serves as a controller within a controller-based network
  C. integrates with a RADIUS server to enforce Layer 2 device authentication rules
  D. correlates user activity with network events
  D. correlates user activity with network events

• Question 538:

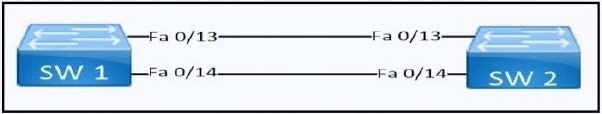

  Refer to the exhibit.



  Which set of commands must be applied to the two switches to configure an LACP Layer 2 EtherChannel?

  A. SW1(config)#interface range f0/13-14 SW1(config-if-range)#channel-group 1 mode auto SW2(config)#interface range f0/13-14 SW2(config-if-range)#channel-group 1 mode passive
  B. SW1(config)#interface range f0/13-14 SW1(config-if-range)#channel-group 1 mode desirable SW2(config)#interface range f0/13-14 SW2(config-if-range)#channel-group 1 mode passive
  C. SW1(config)#interface range f0/13-14 SW1(config-if-range)#channel-group 1 mode on SW2(config)#interface range f0/13-14 SW2(config-if-range)#channel-group 1 mode passive
  D. SW1(config)#interface range f0/13-14 SW1(config-if-range)#channel-group 1 mode active SW2(config)#interface range f0/13-14 SW2(config-if-range)#channel-group 1 mode passive
  D. SW1(config)#interface range f0/13-14 SW1(config-if-range)#channel-group 1 mode active SW2(config)#interface range f0/13-14 SW2(config-if-range)#channel-group 1 mode passive

  ---




• Question 539:

  To improve corporate security, an organization is planning to implement badge authentication to limit access to the data center. Which element of a security program is being deployed?

  A. user training
  B. user awareness
  C. vulnerability verification
  D. physical access control
  D. physical access control

  ---

  Physical Access Control refers to the measures and mechanisms implemented to regulate and restrict access to physical spaces, such as buildings, rooms, or data centers. It involves using authentication methods, such as badge authentication, to verify the identity and authorization of individuals attempting to gain entry to a secured area.

• Question 540:

  Which type of organization should use a collapsed-core architecture?

  A. large and requires a flexible, scalable network design
  B. large and must minimize downtime when hardware fails
  C. small and needs to reduce networking costs currently
  D. small but is expected to grow dramatically in the near future
  C. small and needs to reduce networking costs currently

  ---

  It is ideal for small companies: The collapsed core model is a reduced version of the three-tier model. The deduction was made to create a network for small and medium-sized campuses. Therefore, smaller institutions can get the advantage of using a collapsed core network while still gaining the same benefits they would if they were using a three-tier model. Small organizations often cannot afford the hardware and human resources to run the network can benefit greatly with less oversight necessary. And reduces cost: In a traditional three-tier campus network, the core layer is typically a complex and expensive piece of hardware. This layer is eliminated with collapsed core architecture, reducing both cost and complexity.

  https://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/Small_Enterprise_Design_Profile/SEDP/chap2.html
