Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 411:

  What is the maximum number of concurrent Telnet sessions that a Cisco WLC supports?

  A. 3
  B. 5
  C. 6
  D. 15
  B. 5

• Question 412:

  Which two functions are performed by the core layer in a three-tier architecture? (Choose two)

  A. Provide uninterrupted forwarding service.
  B. Police traffic that is sent to the edge of the network.
  C. Provide direct connectivity for end user devices.
  D. Ensure timely data transfer between layers.
  E. Inspect packets for malicious activity.
  A. Provide uninterrupted forwarding service.
  D. Ensure timely data transfer between layers.

  ---

  Cisco is very clear about the purpose of this layer. Its only role is to forward traffic, the fastest it can. Here you don't apply any policy, as you must try to reduce the load of the core so it can focus on routing. Reference: https://www.mcmcse.com/cisco/guides/hierarchical_model.shtml

• Question 413:

  Refer to the exhibit. Which two prefixes are included in this routing table entry? (Choose two.)



  A. 192.168.1.17
  B. 192.168.1.61
  C. 192.168.1.64
  D. 192.168.1.127
  E. 192.168.1.254
  A. 192.168.1.17
  B. 192.168.1.61

• Question 414:

  What is a characteristic of a Layer 2 switch?

  A. transfers all frames received to every connected device
  B. offers one collision domain for all connected devices
  C. transmits exclusively at half duplex
  D. supports segmentation using tagging protocols
  D. supports segmentation using tagging protocols

  ---

  Layer 2 switches are capable of supporting network segmentation using tagging protocols, such as VLANs (Virtual Local Area Networks). VLANs allow the network to be logically divided into separate broadcast domains, providing isolation and improved network management. VLAN tagging, typically done using the 802.1Q standard, allows the switch to identify and differentiate frames belonging to different VLANs.

• Question 415:

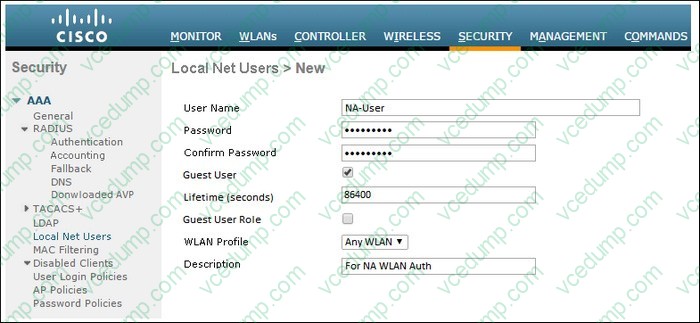

  Refer to the exhibit.



  Wireless LAN access must be set up to force all clients from the NA WLAN to authenticate against the local database. The WLAN is configured for local EAP authentication. The time that users access the network must not be limited. Which action completes this configuration?

  A. Uncheck the Guest User check box
  B. Check the Guest User Role check box
  C. Set the Lifetime (seconds) value to 0
  D. Clear the Lifetime (seconds) value
  A. Uncheck the Guest User check box

  ---

  The Lifetime (seconds) field determines how long a user remains authenticated before reauthentication is required.

  A value of 86400 seconds (as shown in the exhibit) means the user will be authenticated for 24 hours before they must log in again.

  To remove time restrictions and allow unlimited access, set the Lifetime (seconds) value to 0.

  This ensures that users authenticated via local EAP authentication do not face session expiration.

• Question 416:

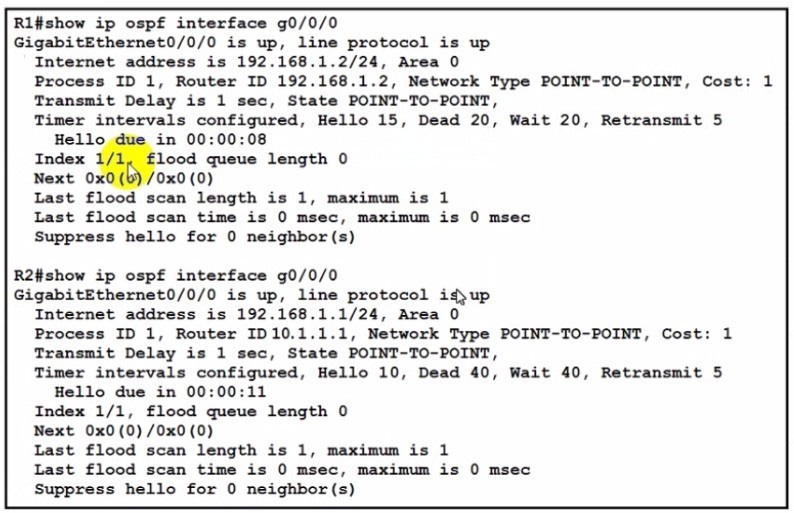

  Refer to the exhibit.



  The network engineer is configuring router R2 as a replacement router on the network After the initial configuration is applied it is determined that R2 failed to show R1 as a neighbor.

  Which configuration must be applied to R2 to complete the OSPF configuration and enable it to establish the neighbor relationship with R1?

  A. R2(config)#router ospf 1 R2(config-router)#network 192.168.1.0 255.255.255.0 area 2
  B. R2(config)#interface g0/0/0 R2(config-if)#ip ospf hello-interval 10
  C. R2(config)#interface g0/0/0 R2(config-if)#ip ospf dead-interval 40
  D. R2(config)#router ospf 1 R2(config-router)#router-id 192.168.1.2
  C. R2(config)#interface g0/0/0 R2(config-if)#ip ospf dead-interval 40

  ---




• Question 417:

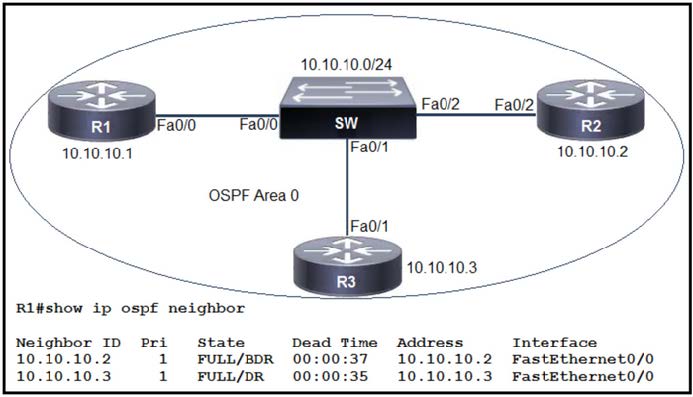

  Refer to the exhibit.



  R1 has taken the DROTHER role in the OSPF DR/BDR election process.

  Which configuration must an engineer implement so that R1 is elected as the DR?

  A. R1(config)#interface FastEthernet0/0 R1(config-if)#ip ospf priority 1 R1#clear ip ospf process
  B. R1(config)#interface FastEthernet0/0 R1(config-if)#ip ospf priority 200 R1#clear ip ospf process
  C. R3(config)#interface FastEthernet0/1 R3(config-if)#ip ospf priority 200 R3#clear ip ospf process
  D. R2(config)#interface FastEthernet0/2 R2(config-if)#ip ospf priority 1 R2#clear ip ospf process
  B. R1(config)#interface FastEthernet0/0 R1(config-if)#ip ospf priority 200 R1#clear ip ospf process

  ---




• Question 418:

  Which security protocol is appropriate for a WPA3 implementation?

  A. CCMP
  B. MD5
  C. TKIP
  D. GCMP
  D. GCMP

  ---

  Explanation

  WPA3 uses stronger encryption and security mechanisms than WPA2. The protocol associated with WPA3 is GCMP.

  GCMP (Galois/Counter Mode Protocol) is used with WPA3.

  It provides stronger security and better performance than older protocols.

  A. CCMP: associated mainly with WPA2, not WPA3.

  B. MD5: a hashing algorithm, not a WPA3 wireless encryption protocol.

  C. TKIP: older and insecure; used with WPA/WPA2 legacy environments, not WPA3. WPA2 # CCMP WPA3 # GCMP Why D is correct:Why the others are incorrect:CCNA takeaway:

• Question 419:

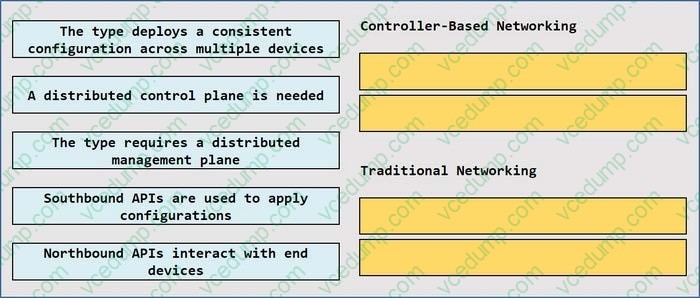

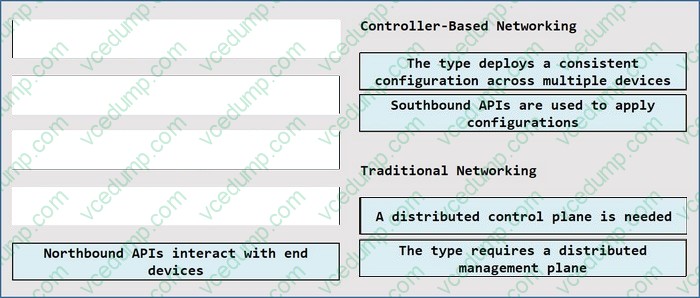

  DRAG DROP

  Drag and drop the statement about networking from the left into the Corresponding networking types on the right. Not all statements are used.

  Select and Place:





• Question 420:

  Which port-security violation mode drops traffic from unknown MAC addresses and forwards an SNMP trap?

  A. shutdown VLAN
  B. protect
  C. restrict
  D. shutdown
  C. restrict
