Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1381:

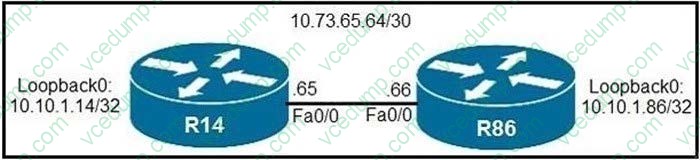

  Refer to the exhibit.



  A static route must be configured on R86 to forward traffic for the 172.16.34.0/29 network, which resides on R14. Which command must be used to fulfill the request?

  A. ip route 10.73.65.65 255.255.255.248 172.16.34.0
  B. ip route 172.16.34.0 255.255.255.248 10.73.65.65
  C. ip route 172.16.34.0 0.0.0.7 10.73.65.64
  D. ip route 172.16.34.0 255.255.224.0 10.73.65.66
  B. ip route 172.16.34.0 255.255.255.248 10.73.65.65

• Question 1382:

  How does Cisco DNA Center gather data from the network?

  A. Devices use the call-home protocol to periodically send data to the controller
  B. Devices establish an IPsec tunnel to exchange data with the controller
  C. The Cisco CLI Analyzer tool gathers data from each licensed network device and streams it to the controller
  D. Network devices use different services like SNMP, syslog, and streaming telemetry to send data to the controller
  D. Network devices use different services like SNMP, syslog, and streaming telemetry to send data to the controller

  ---

  Cisco DNA Center uses various methods to gather data from the network devices, such as SNMP, syslog, and streaming telemetry. These protocols allow the devices to send data to the controller in real-time or at regular intervals, providing comprehensive visibility into the network. The data collected by Cisco DNA Center is then analyzed and used for network management, troubleshooting, and optimization.

• Question 1383:

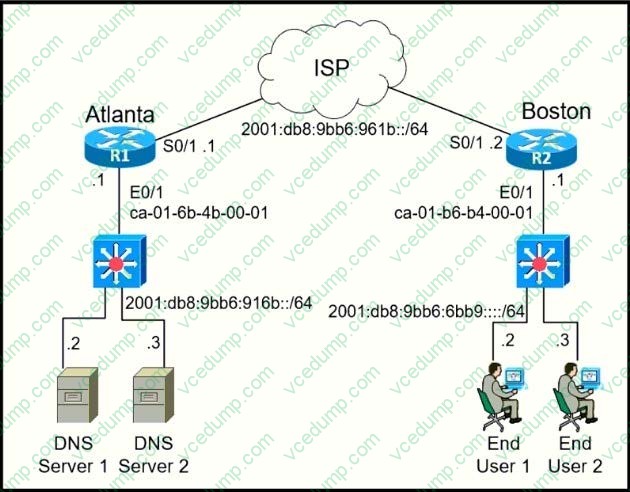

  Refer to the exhibit.



  The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?

  A. 2001:db8:9bb6:6bb9:C801:B6FF:FEB4:1
  B. 2001:db8:9bb6:6bb9:C001:6BFE:FF01:1
  C. 2001:db8:9bb6:6bb9:C081:B6FF:FF4B:1
  D. 2001:db8:9bb6:6bb9:4736:931F:FE37:1
  A. 2001:db8:9bb6:6bb9:C801:B6FF:FEB4:1

• Question 1384:

  DRAG DROP

  Drag the descriptions of IP protocol transmissions from the left onto the IP traffic types on the right.

  Select and Place:





• Question 1385:

  CCNA Lab simulation

  Guidelines

  This is a lab item in which tasks will be performed on virtual devices.

  1. Refer to the Tasks tab to view the tasks for this lab item.

  2. Refer to the Topology tab to access the device console(s) and perform the tasks.

  3. Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.

  4. All necessary preconfigurations have been applied.

  5. Do not change the enable password or hostname for any device.

  6. Save your configurations to NVRAM before moving to the next item.

  7. Click Next at the bottom of the screen to submit this lab and move to the next question.

  8. When Next is clicked, the lab closes and cannot be reopened.



  Tasks

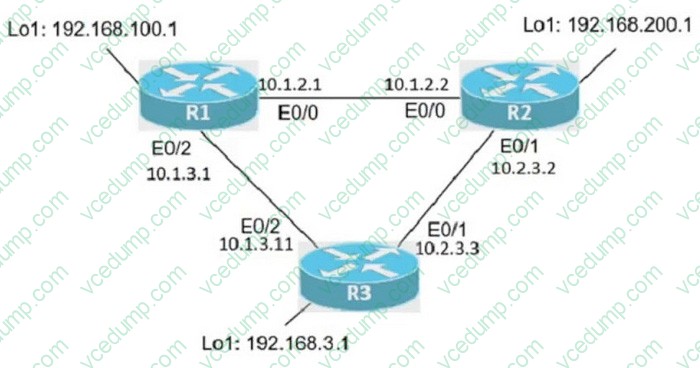

  IP connectivity between the three routers is established. IP Services must be configured in the order presented to complete the implementation.

  1.Configure dynamic one-to-one address mapping on R2 using a standard list named XLATE, which allows all traffic to translate the source address of R3 to a pool named test_pool using the 10.10.10.0/24 network for traffic sent from R3 to R1. Avoid using an NVI configuration. Verify reachability by sending a ping to 192.168.100.1 from R3.

  2.Configure R3 to dynamically receive an IP address on Ethernet0/2 from the DHCP server.

  3.Configure R1 as an NTP server and R2 as a client, not as a peer, using the IP address 10.1.2.1.

  4.Configure SSH access from R1 to R3, while excluding access via other remote connection protocols using the user root and password s3cret on router R3 using RSA. Verify connectivity from router R1 to R3 using a destination address assigned to interface E0/2 on R3.

  A. Check the Explanation below
  B. Place Holder
  C. Place Holder
  D. Place Holder
  A. Check the Explanation below

  ---

  Explanation

  R2#conf t

  R2(config)# ip access-list standard XLATE

  R2(config-std-nacl)#permit 10.2.3.3

  R2(config-std-nacl)#permit 192.168.3.1

  R2(config-std-nacl)#permit 10.1.3.11

  R2(config-std-nacl)#exit

  R2(config)# interface G0/1

  R2(config-if)#ip nat inside

  R2(config-if)#exit

  R2(config)#interface G0/0

  R2(config-if)#ip nat outside

  R2(config-if)#exit

  R2(config)#ip nat pool test pool 10.10.10.1 10.10.10.254 netmask 255.255.255.0

  R2(config)#ip nat inside source list XLATE pool test pool

  R2(config)#exit

  R2(config)#ntp server 10.1.2.1

  R2#wr

  R3(config)#interface G0/2

  R3(config-if)#ip address dhcp

  R3(config-if)#exit

  R1#config t

  R1(config)#ntp master 1

  R1(config)#exit

  Ri#wr

  R3(config)#ip domain name cisco.com

  R3(config)#line vty 0 4

  R3(config-line)#transport input ssh

  R3(config-line)#login local

  R3(config-line)#exit

  R3(config)#username root password s3cret

  R3(config)#crypto key generate rsa

  R3(config)#exit

  R3#wr

• Question 1386:

  Which two statements about the purpose of the OSI model are accurate? (Choose two.)

  A. Defines the network functions that occur at each layer
  B. Facilitates an understanding of how information travels throughout a network
  C. Changes in one layer do not impact other layer
  D. Ensures reliable data delivery through its layered approach
  A. Defines the network functions that occur at each layer
  B. Facilitates an understanding of how information travels throughout a network

  ---

  OSI model is an structure for Both TCP and UDP. So it doesn't ensure reliabile delivery always (For UDP)

• Question 1387:

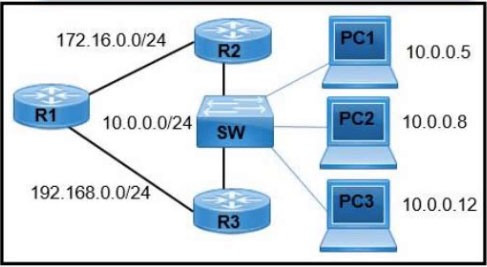

  Refer to the exhibit.

  A network engineer must configure R1 so that it sends all packets destined for the 10.0.0.0/24 network to R3, and all packets destined for PC1 to R2. Which configuration must the engineer implement?



  A. R1(config)#ip route 10.0.0.0 255.255.255.0 172.16.0.2 R1(config)#ip route 10.0.0.5 255.255.255.255 192.168.0.2
  B. R1(config)#ip route 10.0.0.0 255.255.0.0 172.16.0.2 R1(config)#ip route 10.0.0.5 255.255.255.255 192.168.0.2
  C. R1(config)#ip route 10.0.0.0 255.255.255.0 192.168.0.2 R1(config)#ip route 10.0.0.5 255.255.255.255 172.16.0.2
  D. R1(config)#ip route 10.0.0.0 255.255.0.0 192.168.0.2 R1(config)#ip route 10.0.0.5 255.255.255.0 172.16.0.2
  C. R1(config)#ip route 10.0.0.0 255.255.255.0 192.168.0.2 R1(config)#ip route 10.0.0.5 255.255.255.255 172.16.0.2

  ---




• Question 1388:

  Which command configures a switch port to accept only one learned MAC address?

  A. switchport port-security
  B. switchport mode access
  C. switchport port-security maximum 1
  D. switchport protected
  C. switchport port-security maximum 1

  ---

  The switchport port-security maximum 1 command limits the number of MAC addresses that can be learned on a port to one. This helps prevent unauthorized devices from connecting to the network through that port.

• Question 1389:

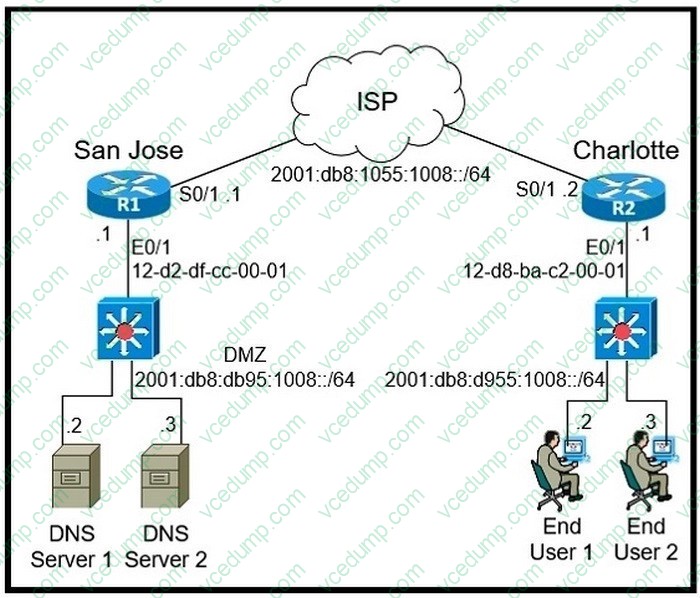

  Refer to the exhibit.



  The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?

  A. 2001:db8:d955:1008:12D8:BAFE:FF01:1
  B. 2001:db8:d955:1008:4598:785F:FE25:1
  C. 2001:db8:d955:1008:1030:ABFF:FECC:1
  D. 2001:db8:d955:1008:10D8:BAFF:FEC2:1
  D. 2001:db8:d955:1008:10D8:BAFF:FEC2:1

• Question 1390:

  Which function does an SNMP agent perform?

  A. It sends information about MIB variables in response to requests from the NMS
  B. It manages routing between Layer 3 devices in a network
  C. It coordinates user authentication between a network device and a TACACS+ or RADIUS server
  D. It requests information from remote network nodes about catastrophic system events
  A. It sends information about MIB variables in response to requests from the NMS

  ---

  SNMP Agent

  The Simple Network Management Protocol (SNMP) agent is the software component within a managed device that maintains the data for the device and reports this data, as needed, to managing systems. The agent resides on the routing device (router, access server, or switch). To enable an SNMP agent on a Cisco routing device, you must define the relationship between the manager and the agent.

  SNMP MIB

  An SNMP agent contains MIB variables, whose values the SNMP manager can request or change through Get or Set operations. A manager can get a value from an agent or store a value in that agent. The agent gathers data from the SNMP MIB, the repository for information about device parameters and network data. The agent can also respond to manager requests to get or set data.

  https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/snmp/configuration/xe-16/snmp-xe-16-book/nm-snmp-cfg-snmp-support.html
