Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1351:

  What is the collapsed layer in collapsed core architectures?

  A. core and distribution
  B. distribution and access
  C. core and WAN
  D. access and WAN
  A. core and distribution

  ---

  A collapsed core architecture takes the normal three-tier hierarchical network and collapses it into a two-tier network. In a two-tier network, the function of the switches in the core layer and distribution layer are "collapsed" into a combined core and distribution layer on a single switch

• Question 1352:

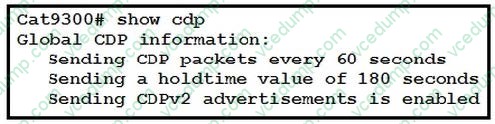

  Refer to the exhibit.



  Which action must be taken so that neighboring devices rapidly discover switch Cat9300?

  A. Enable portfast on the ports that connect to neighboring devices
  B. Configure the cdp holdtime 10 command on switch Cat9300
  C. Configure the cdp timer 10 command on the neighbors of switch Cat9300
  D. Configure the cdp timer 10 command on switch Cat9300
  D. Configure the cdp timer 10 command on switch Cat9300

• Question 1353:

  What are two similarities between UTP Cat 5e and Cat 6a cabling? (Choose two.)

  A. Both operate at a frequency of 500 MHz.
  B. Both support runs of up to 55 meters.
  C. Both support runs of up to 100 meters.
  D. Both support speeds of at least 1 Gigabit.
  E. Both support speeds up to 10 Gigabit.
  C. Both support runs of up to 100 meters.
  D. Both support speeds of at least 1 Gigabit.

  ---

  Cat5:

  Frequency: Up to 100 MHz

  Bandwidth: 100 Mbps (Fast Ethernet)

  Max Distance: 100 meters (328 feet)

  Cat5e:

  Frequency: Up to 100 MHz

  Bandwidth: 1 Gbps (Gigabit Ethernet)

  Max Distance: 100 meters (328 feet)

  Cat6:

  Frequency: Up to 250 MHz

  Bandwidth: 10 Gbps (10 Gigabit Ethernet)

  Max Distance: 55 meters (180 feet) for 10 Gbps, 100 meters (328 feet) for 1 Gbps

  Cat6a:

  Frequency: Up to 500 MHz

  Bandwidth: 10 Gbps (10 Gigabit Ethernet)

  Max Distance: 100 meters (328 feet)

  Cat7:

  Frequency: Up to 600 MHz

  Bandwidth: 10 Gbps (10 Gigabit Ethernet)

  Max Distance: 100 meters (328 feet)

  Cat8:

  Frequency: Up to 2 GHz

  Bandwidth: 25/40 Gbps (25/40 Gigabit Ethernet)

  Max Distance: 30 meters (98 feet)

• Question 1354:

  An office has 8 floors with approximately 30-40 users per floor. One subnet must be used.

  Which command must be configured on the router Switched Virtual Interface to use address space efficiently?

  A. ip address 192.168.0.0 255.255.0.0
  B. ip address 192.168.0.0 255.255.254.0
  C. ip address 192.168.0.0 255.255.255.128
  D. ip address 192.168.0.0 255.255.255.224
  B. ip address 192.168.0.0 255.255.254.0

  ---

  need ip count: 30-40 * 8 = 320 ip

  255.255.254.0 - 510 ip

• Question 1355:

  Which PoE mode enables powered-device detection and guarantees power when the device is detected?

  A. dynamic
  B. static
  C. active
  D. auto
  B. static

  ---

  static--Enables powered-device detection. Pre-allocate (reserve) power for a port before the switch discovers the powered device. The switch reserves power for this port even when no device is connected and guarantees that power will be provided upon device detection.

• Question 1356:

  An engineer needs to add an old switch back into a network. To prevent the switch from corrupting the VLAN database which action must be taken?

  A. Add the switch in the VTP domain with a lower revision number
  B. Add the switch with DTP set to dynamic desirable
  C. Add the switch in the VTP domain with a higher revision number
  D. Add the switch with DTP set to desirable
  A. Add the switch in the VTP domain with a lower revision number

  ---

  One danger of VTP:

  If you connect an old switch with a higher revision number to your network (and the VTP domain name matches), all switches in the domain will sync their VLAN database to that switch.

• Question 1357:

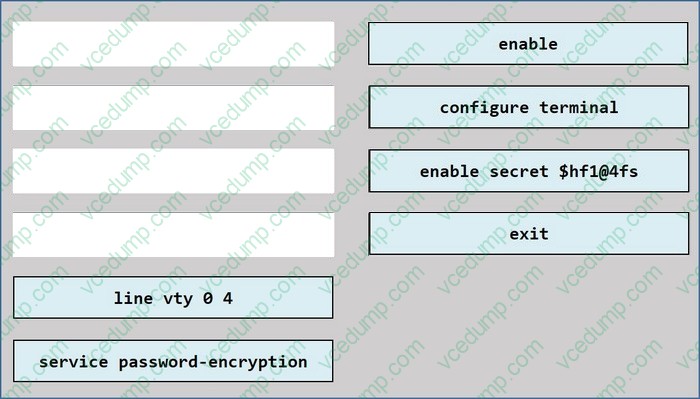

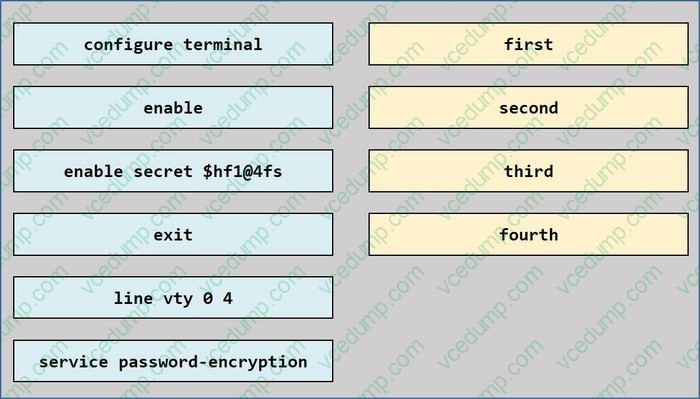

  DRAG DROP

  An engineer is configuring an encrypted password for the enable command on a router where the local user database has already been configured. Drag and drop the configuration commands from the left into the correct sequence on the right (Not all commands are used)

  Select and Place:





• Question 1358:

  Which type of API allows SDN controllers to dynamically make changes to the network?

  A. northbound API
  B. REST API
  C. SOAP API
  D. southbound API
  D. southbound API

  ---

  Cisco overview doc for SDN here: https://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/Data_Center/VMDC/SDN/SDN.html

• Question 1359:

  Which two characteristics are representative of virtual machines (VMs)? (Choose two.)

  A. multiple VMs operate on the same underlying hardware
  B. Each VMs operating system depends on its hypervisor
  C. A VM on a hypervisor is automatically interconnected to other VMs
  D. A VM on an individual hypervisor shares resources equally
  E. Each VM runs independently of any other VM in the same hypervisor
  A. multiple VMs operate on the same underlying hardware
  E. Each VM runs independently of any other VM in the same hypervisor

  ---

  A virtual machine is a software-based emulation of a physical computer. It runs on top of a host operating system, allowing multiple operating systems to run on the same physical machine. VMs are used for a variety of purposes, including testing, development, and production. They provide a layer of abstraction between the underlying hardware and the operating system, allowing for greater flexibility and scalability.

  Are Virtual Machines Isolated from the Underlying Hardware?

  Yes, virtual machines are completely isolated from the underlying hardware. This means that the virtual machine is completely independent of the hardware it is running on.

• Question 1360:

  An engineer must configure a core router with a floating static default route to the backup router at 10.200.0.2. Which command meets the requirements?

  A. ip route 0.0.0.0 0.0.0.0 10.200.0.2 1
  B. ip route 0.0.0.0 0.0.0.0 10.200.0.2 10
  C. ip route 0.0.0.0 0.0.0.0 10.200.0.2
  D. ip route 0.0.0.0 0.0.0.0 10.200.0.2 floating
  B. ip route 0.0.0.0 0.0.0.0 10.200.0.2 10

  ---

  Floating static default route must have a higher AD so B is the only correct answers.
