Cisco 200-301 Online Practice Questions and Exam Preparation

Cisco 200-301 Online Questions & Answers

• Question 1221:

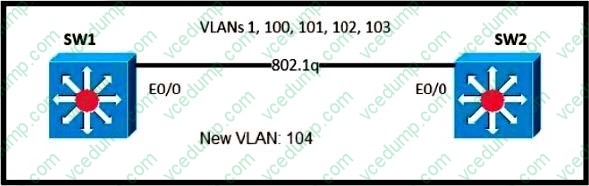

  Refer to the exhibit.



  An engineer is asked to insert the new VLAN into the existing trunk without modifying anything previously configured. Which command accomplishes this task?

  A. switchport trunk allowed vlan 100-104
  B. switchport trunk allowed vlan 104
  C. switchport trunk allowed vlan all
  D. switchport trunk allowed vlan add 104
  D. switchport trunk allowed vlan add 104

• Question 1222:

  What is the function of a controller in controller-based networking?

  A. It serves as the centralized management point of an SDN architecture.
  B. It centralizes the data plane for the network.
  C. It is the card on a core router that maintains all routing decisions for a campus.
  D. It is a pair of core routers that maintain all routing decisions for a campus
  A. It serves as the centralized management point of an SDN architecture.

  ---

  The function of a controller in controller-based networking is A. It serves as the centralized management point of an SDN (Software-Defined Networking) architecture . The controller is responsible for managing network devices and implementing network policies, as well as providing a central point of control and visibility for the entire network. It enables dynamic, programmatically efficient network configuration through the use of software-based controllers or a centralized controller with open APIs (Application Programming Interfaces) that communicate with network devices and applications . This promotes increased network agility, scalability, and flexibility in response to changing business needs.

• Question 1223:

  Refer to the exhibit.

  { "Interfaces": ["ethernet0/1", "ethernet0/2", "ethernet0/3"] }

  Which types of JSON data is shown?

  A. Object
  B. Sequence
  C. String
  D. boolean
  C. String

• Question 1224:

  Which type of attack is mitigated by dynamic ARP inspection?

  A. DDoS
  B. malware
  C. man-in-the-middle
  D. worm
  C. man-in-the-middle

• Question 1225:

  Which protocol is implemented when an organization must verify network performance, troubleshoot issues, and use an agent to communicate between monitoring tools and end devices?

  A. FIP
  B. NIP
  C. NFS
  D. SNMP
  D. SNMP

• Question 1226:

  DRAG DROP

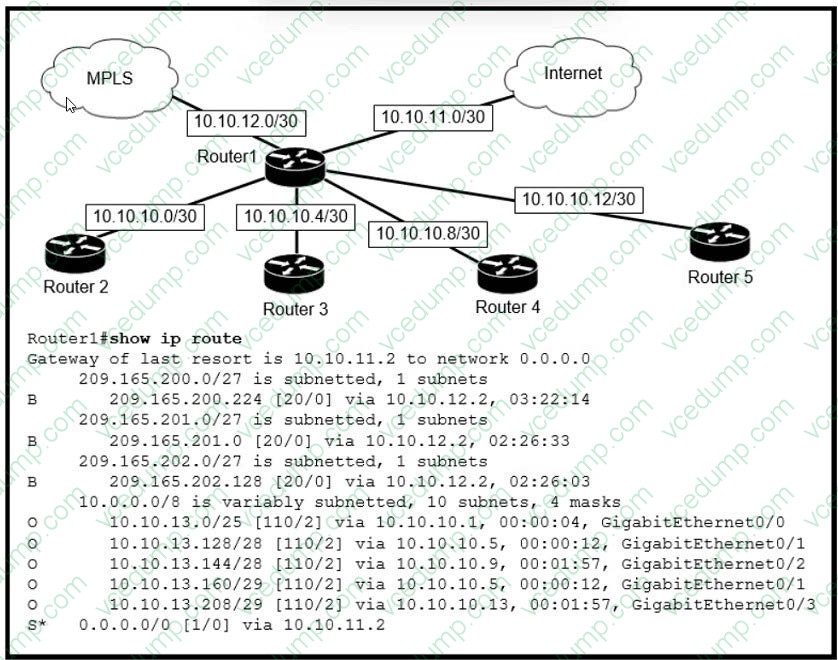

  Refer to the exhibit.

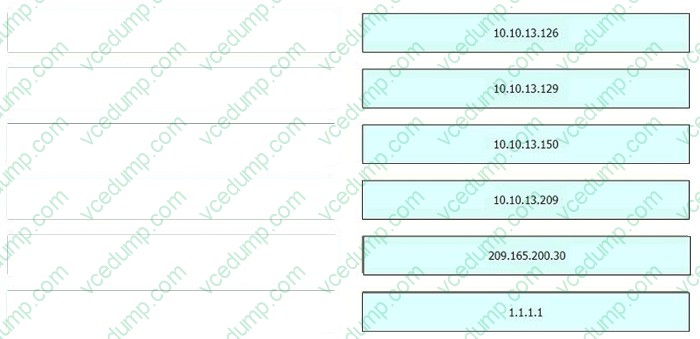

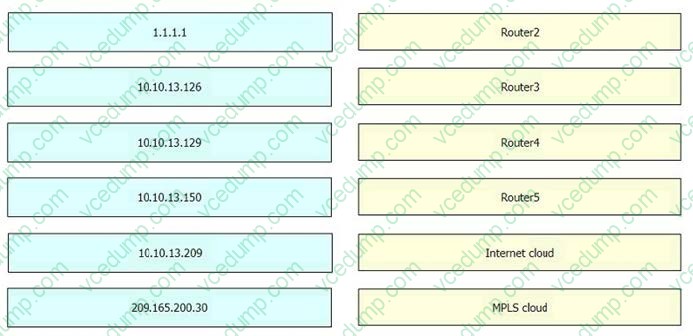

  Drag and drop the destination IPs from the left onto the paths to reach those destinations on the right.

  Select and Place:





• Question 1227:

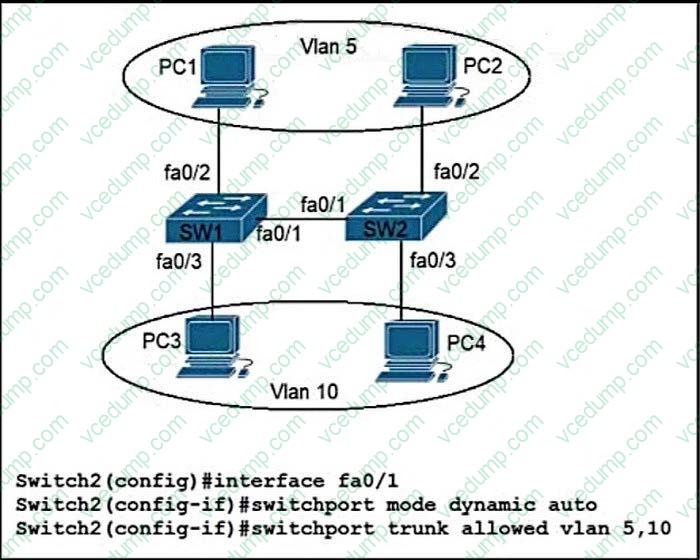

  Refer to the exhibit.



  SW2 is replaced due to a hardware failure. A network engineer starts to configure SW2 by copying the Fa0/1 interface configuration from SW1. Which command must be configured on the Fa0/1 interface of SW2 to enable PC1 to connect to PC2?

  A. switchport mode trunk
  B. switchport trunk native vlan 10
  C. switchport trunk allowed remove 10
  D. switchport mode access
  A. switchport mode trunk

• Question 1228:

  What is a purpose of traffic shaping?

  A. It enables dynamic flow identification.
  B. It enables policy-based routing.
  C. It provides best-effort service.
  D. It limits bandwidth usage.
  D. It limits bandwidth usage.

  ---

  The purpose of traffic shaping is to limit the bandwidth usage of certain types of network traffic in order to prevent congestion and ensure that critical applications receive the necessary network resources.

  Traffic shaping is typically used to enforce Quality of Service (QoS) policies that prioritize certain types of network traffic, such as voice and video traffic, over other less critical traffic. By limiting the bandwidth usage of non-critical traffic, traffic shaping can help prevent network congestion and ensure that the available bandwidth is allocated in a way that meets the organization's priorities.

• Question 1229:

  Which access control list matches traffic based on both source and destination IP addresses?

  A. Standard ACL
  B. Named ACL
  C. Extended ACL
  D. Reflexive ACL
  C. Extended ACL

  ---

  Extended ACLs can filter traffic based on source and destination IP addresses, protocols, and port numbers. This provides more granular control compared to standard ACLs, which match only source IP addresses.

• Question 1230:

  Which capability does TFTP provide?

  A. loads configuration files on systems without data storage devices
  B. provides authentication for data communications over a private data network
  C. provides encryption mechanisms for file transfer across a WAN
  D. provides secure file access within the LAN
  A. loads configuration files on systems without data storage devices

  ---

  TFTP (Trivial File Transfer Protocol) is a simple file transfer protocol that is often used to transfer configuration files or firmware to network devices, such as routers or switches, during the boot process. TFTP is lightweight and lacks advanced features like authentication or encryption, making it suitable for basic file transfer operations in situations where security is not a primary concern.
