Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 981:

  which two statements about private addresses are true?(choose two)

  A. The 172.16.x.x/16 private class B network supports over 1 million addresses
  B. Address in the range 172.16.0.1 to 172.32.255.254 are defined as class B private addresses
  C. Network 192.168.25.0/28 supports 14 usable private host addresses
  D. By default,class C private networks support up to 255 subnets
  E. Network 10.1.1.0/29 supports 16 usable private host addresses
  C. Network 192.168.25.0/28 supports 14 usable private host addresses
  D. By default,class C private networks support up to 255 subnets

• Question 982:

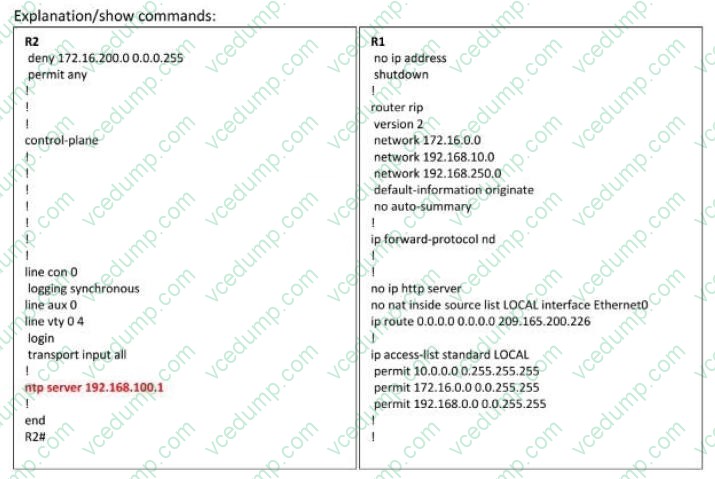

  R1 router clock is synchronized with ISP router. R2 is supposed to receive NTP updates from R1. But you observe that R2 clock is not synchronized with R1.



  What is the reason R2 is not receiving NTP updates from R1?

  A. R1 router Ethernet interface that is connected to R2 is placed in shutdown condition.
  B. R2 router Ethernet interface that is connected to Rl is placed in shutdown condition.
  C. The NTP server command not configured on R2 router.
  D. The IP address that is used in the NTP configuration on R2 router is incorrect
  D. The IP address that is used in the NTP configuration on R2 router is incorrect

  ---



• Question 983:

  The enable secret command is used to secure access to which CLI mode?

  A. global configuration mode
  B. privileged EXEC mode
  C. user EXEC mode
  D. auxiliary setup mode
  B. privileged EXEC mode

• Question 984:

  Which two statements about syslog logging are true? (Choose two.)

  A. Messages are stored external to the device.
  B. The size of the log file is dependent on the resources of the device.
  C. Syslog logging is disabled by default.
  D. Messages can be erased when the device reboots.
  E. Messages are stored in the internal memory of the device.
  D. Messages can be erased when the device reboots.
  E. Messages are stored in the internal memory of the device.

• Question 985:

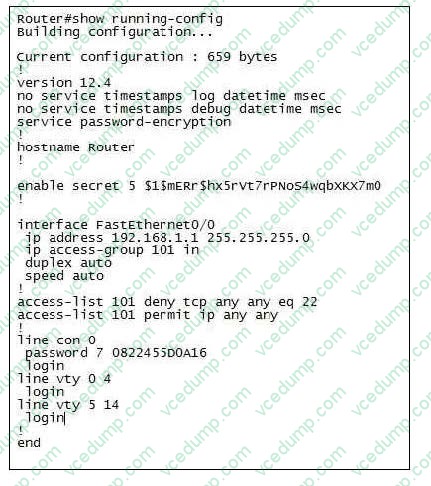

  Refer to exhibit.



  A network administrator cannot establish a Telnet session with the indicated router. What is the cause of this failure?

  A. A Level 5 password is not set.
  B. An ACL is blocking Telnet access.
  C. The vty password is missing.
  D. The console password is missing.
  C. The vty password is missing.

  ---

  The login keyword has been set, but not password. This will result in the "password required, but none set" message to users trying to telnet to this router.

• Question 986:

  Which statement about vlan operation on cisco catalyst switches is true?

  A. when a packet is received from an 802.1Q trunk,the vlan id can be determined from the source MAC address table.
  B. unkown unicast frames are retransmitted only to the ports that belong to the same vlan
  C. ports between switches should be configured in access mode so that vlans can span across the ports
  D. broadcast and multicast frames are retransmitted to ports that are configured on different vlan
  B. unkown unicast frames are retransmitted only to the ports that belong to the same vlan

• Question 987:

  Which benefit of implementing a dual-homed WAN connection instead of a single homed connection is true?

  A. Only dual-homed connections support recursive routing
  B. Only dual-homed connections support split horizon with EIGRP
  C. Only dual-homed connections enable an individual router to tolerate the loss of a network link
  D. Only dual-homed connections support OSPF in conjunction with BGP
  C. Only dual-homed connections enable an individual router to tolerate the loss of a network link

• Question 988:

  Which three statements are typical characteristics of VLAN arrangements? (Choose three.)

  A. VLANscannot span multiple switches.
  B. VLANs typically decrease the number of collision domains.
  C. Connectivity between VLANs requires a Layer 3 device.
  D. Each VLAN uses a separate address space.
  E. A new switch has no VLANs configured.
  F. A switch maintainsa separate bridging table for each VLAN.
  C. Connectivity between VLANs requires a Layer 3 device.
  D. Each VLAN uses a separate address space.
  F. A switch maintainsa separate bridging table for each VLAN.

• Question 989:

  Which two command sequences must you configure on a switch to establish a Layer 3 EtherChannel with an open-standard protocol?(choose two)

  A. interface GigabitEthernet0/0/1 Channel-group 10 mode active
  B. interface GigabitEthernet0/0/1 Channel-group 10 mode auto
  C. interface GigabitEthernet0/0/1 Channel-group 10 mode on
  D. interface port-channel 10 no switchport ip address 172.16.0.1 255.255.255.0
  E. interface port-channel 10 switchport Switchport mode trunk
  A. interface GigabitEthernet0/0/1 Channel-group 10 mode active
  D. interface port-channel 10 no switchport ip address 172.16.0.1 255.255.255.0

• Question 990:

  Which EIGRP for IPv6 command can you enter to view the link-local addresses of the neighbors of a device?

  A. show ipv6 eigrp 20 interfaces
  B. show ipv6 route eigrp
  C. show ipv6 eigrp neighbors
  D. show ip eigrp traffic
  C. show ipv6 eigrp neighbors
