Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 901:

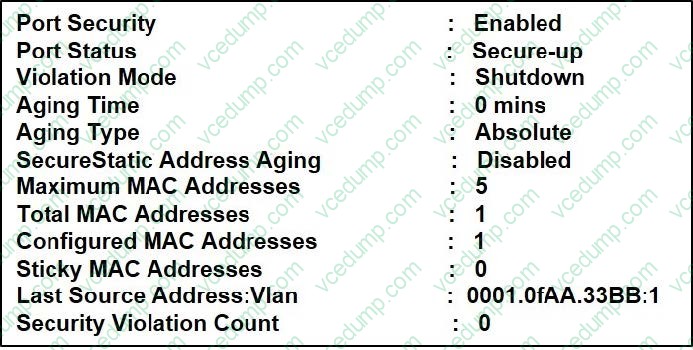

  Refer to the exhibit.Which statement about the interface that generated the output is true?

  A. Five secure MAC addresses are dynamically learned on the interface
  B. A syslog message is generated when a violation occurs
  C. One secure MAC address is manually configured on the interface
  D. One secure MAC address is dynamically configured on the interface
  C. One secure MAC address is manually configured on the interface

• Question 902:

  In a CDP environment,what happens when the CDP interface on an adjacent device is configured without an IP address

  A. CDP becomes inoperable on that neighbor
  B. CDP uses the IP address of another interface for that neighbor
  C. CDP operates normally,but it cannot provide IP address information for that neighbor
  D. CDP operates normally,but it cannot provide any information for that neighbor
  C. CDP operates normally,but it cannot provide IP address information for that neighbor

• Question 903:

  Which QoS tool can you use to optimize voice traffic on a network that is primarily intended for data traffic?

  A. WFQ
  B. PQ
  C. WRED
  D. FIFO
  A. WFQ

• Question 904:

  What is one benefit of PVST+?

  A. PVST + reduces the CPU cycles for all the switches in the network.
  B. PVST + automatically selects the root bridge location, to provide optimized bandwidth usage.
  C. PVST + supports Layer 3 load balancing without loops.
  D. PVST + allows the root switch location to be optimized per VLAN.
  D. PVST + allows the root switch location to be optimized per VLAN.

• Question 905:

  Which two statements about RIPv2 are true? (Choose two )

  A. It must be manually enabled after RIP is configured as the routing protocol
  B. It uses multicast address 224.0.0.2 to share routing information between peers
  C. its default administrative distances 120
  D. It is a link-state routing protocol
  E. It is an EGP routing protocol
  A. It must be manually enabled after RIP is configured as the routing protocol
  C. its default administrative distances 120

• Question 906:

  Which command can you use to test whether a switch supports secure connections and strong authentication?

  A. Router#ssh -v 1 - I admin 10.1.1.1
  B. Router>ssh -v 1 - I admin 10.1.1.1
  C. Router#ssh - I admin 10.1.1.1
  D. Router>ssh -v 2 - I admin 10.1.1.1
  D. Router>ssh -v 2 - I admin 10.1.1.1

• Question 907:

  Which type of MAC address is aged automatically by the switch?

  A. automatic
  B. manual
  C. dynamic
  D. static
  C. dynamic

• Question 908:

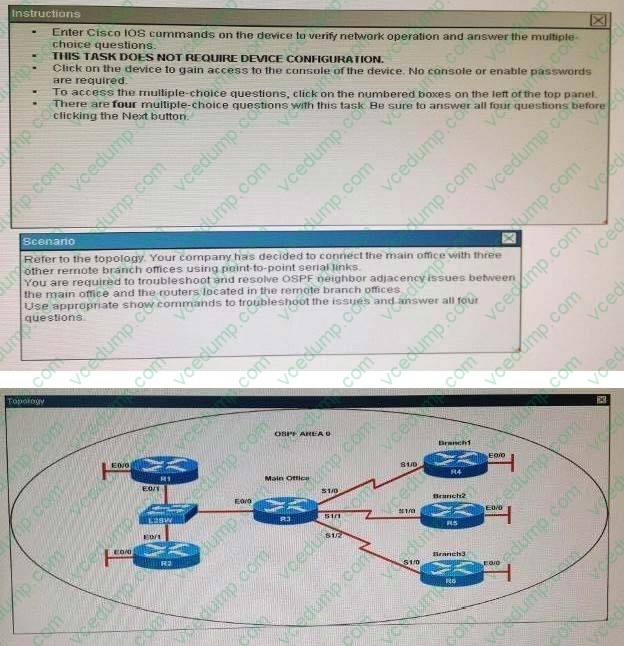

  R1# show running-config interface Loopback0 description ***Loopback*** ip address 192.168.1.1 255.255.255.255 ip ospf 1 area 0 ! interface Ethernet0/0 description **Connected to R1-LAN** ip address 10.10.110.1 255.255.255.0 ip ospf 1 area 0 !

  interface Ethernet0/1 description **Connected to L2SW** ip address 10.10.230.1 255.255.255.0 ip ospf hello-interval 25 ip ospf 1 area 0 ! router ospf 1 log-adjacency-changes



  R2# show running-config R2 ! interface Loopback0 description **Loopback** ip address 192.168.2.2 255.255.255.255 ip ospf 2 area 0 ! interface Ethernet0/0 description **Connected to R2-LAN**

  ip address 10.10.120.1 255.255.255.0 ip ospf 2 area 0 ! interface Ethernet0/1 description **Connected to L2SW** ip address 10.10.230.2 255.255.255.0 ip ospf 2 area 0 ! router ospf 2 log-adjacency-changes R3# show running-config R3 username R6 password CISCO36 ! interface Loopback0 description **Loopback** ip address 192.168.3.3 255.255.255.255 ip ospf 3 area 0



  ! interface Ethernet0/0 description **Connected to L2SW** ip address 10.10.230.3 255.255.255.0 ip ospf 3 area 0 ! interface Serial1/0 description **Connected to R4-Branch1 office** ip address 10.10.240.1 255.255.255.252 encapsulation ppp ip ospf 3 area 0 ! interface Serial1/1 description **Connected to R5-Branch2 office** ip address 10.10.240.5 255.255.255.252 encapsulation ppp ip ospf hello-interval 50 ip ospf 3 area 0 ! interface Serial1/2 description **Connected to R6-Branch3 office** ip address 10.10.240.9 255.255.255.252 encapsulation ppp ip ospf 3 area 0 ppp authentication chap !

  router ospf 3 router-id 192.168.3.3 !



  R4# show running-config R4 ! interface Loopback0 description **Loopback** ip address 192.168.4.4 255.255.255.255 ip ospf 4 area 2 ! interface Ethernet0/0 ip address 172.16.113.1 255.255.255.0 ip ospf 4 area 2 ! interface Serial1/0 description **Connected to R3-Main Branch office** ip address 10.10.240.2 255.255.255.252

  encapsulation ppp ip ospf 4 area 2 ! router ospf 4 log-adjacency-changes



  R5# show running-config R5 ! interface Loopback0 description **Loopback** ip address 192.168.5.5 255.255.255.255 ip ospf 5 area 0 ! interface Ethernet0/0 ip address 172.16.114.1 255.255.255.0 ip ospf 5 area 0

  ! interface Serial1/0 description **Connected to R3-Main Branch office** ip address 10.10.240.6 255.255.255.252 encapsulation ppp ip ospf 5 area 0 ! router ospf 5 log-adjacency-changes



  R6# show running-config R6 username R3 password CISCO36 ! interface Loopback0 description **Loopback** ip address 192.168.6.6 255.255.255.255 ip ospf 6 area 0

  ! interface Ethernet0/0 ip address 172.16.115.1 255.255.255.0 ip ospf 6 area 0 ! interface Serial1/0 description **Connected to R3-Main Branch office** ip address 10.10.240.10 255.255.255.252 encapsulation ppp ip ospf 6 area 0

  ppp authentication chap ! router ospf 6 router-id 192.168.3.3 !



  R1 does not form an OSPF neighbor adjacency with R2. Which option would fix the issue?

  A. R1 ethernet0/1 is shutdown. Configure the no shutdown command.
  B. R1 ethernet0/1 configured with a non-default OSPF hello interval of 25, configure no ip ospf hello interval 25
  C. R2 ethernet0/1 and R3 ethernet0/0 are configured with a non-default OSPF hello interval of 25; configure no ip ospf hello interval 25
  D. Enable OSPF for R1 ethernet0/1; configure ip ospf 1 area 0 command under ethernet0/1
  B. R1 ethernet0/1 configured with a non-default OSPF hello interval of 25, configure no ip ospf hello interval 25

• Question 909:

  Drag and drop the IEEE standard Cable names from the left onto the correct cable types on the right.

  Select and Place:





• Question 910:

  Which two statements about the spanning-tree bridge ID are true? (Choose two.)

  A. It is composed of a 4-bit bridge priority and a 12-bit system ID extension.
  B. The bridge ID is transmitted in the IP header to elect the root bridge.
  C. Thesystem ID extension is a value between 1 and 4095.
  D. It is composed of an 8-bit bridge priority and a 16-bit system ID extension.
  E. The bridge priority must be incremented in blocks of 4096.
  A. It is composed of a 4-bit bridge priority and a 12-bit system ID extension.
  E. The bridge priority must be incremented in blocks of 4096.
